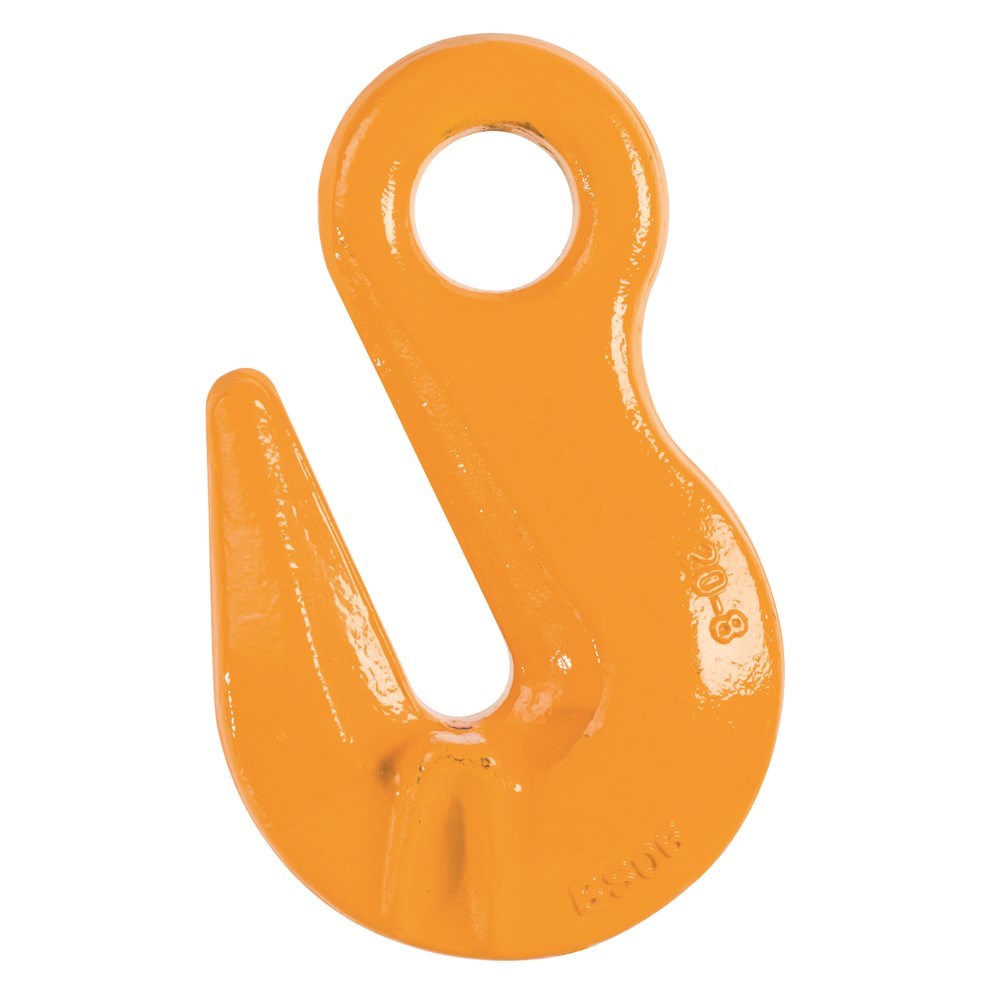

Beaver G80 Eye Shortening Grab Hook 7-8mm
885307per Each
$5.47 inc GSTTrade $4.92, save $0.55Trade accounts save 10%. Apply with your ABN
| b | 51mm |
| e | 61.7mm |
| g | 10.8mm |
| d1 | 18mm |
| d2 | 9.5mm |
| WLL | 2t |
| Chain Size | 7-8mm |
| Approx Weight | 0.35kg |
About this product
The Beaver G80 Eye Shortening Grab Hook 7-8mm is used to shorten a chain sling leg, cradling a 7-8mm link and holding it at a 2t working load limit. The eye at the top makes it simple to connect to couplers and connectors, shackles or wire rope slings. Supporting lugs sit either side of the throat so the link is not deformed under load and the WLL is not reduced.
Made from heat treated alloy steel and complies to AS 3776, with identification marks stamped on for checking in the yard. At 0.35kg it is easy to handle, with a 51mm eye width, 61.7mm across the dimension e and a 10.8mm hook opening. Keep the load in the seat of the hook. These hooks are not suitable for tip loading.
Common questions
- what chain size does the Beaver G80 eye grab hook 7-8mm fit
- It suits 7-8mm Grade 80 chain. The hook seat and 10.8mm opening are sized for that link, so do not fit it to heavier or lighter chain.
- what is the WLL of a 7-8mm G80 shortening grab hook
- The working load limit is 2t. That rating relies on the load sitting in the seat of the hook, as it is not suitable for tip loading.
- why does a shortening grab hook have lugs on the side
- The supporting lugs either side stop the chain link from deforming under load, which keeps the 2t WLL intact.
Full specifications
| Product code | Chain Size | WLL | e | b | d1 | d2 | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 885306 | 6mm | 1.1t | 51mm | 45.8mm | 13.5mm | 8mm | 8.3mm | 0.14kg |
| 885307 | 7-8mm | 2t | 61.7mm | 51mm | 18mm | 9.5mm | 10.8mm | 0.35kg |
| 885310 | 10mm | 3.2t | 80mm | 70mm | 20.5mm | 13mm | 13.5mm | 0.65kg |
| 885313 | 13mm | 5.3t | 99.7mm | 89.7mm | 26mm | 15.5mm | 16.5mm | 1.39kg |
| 885316 | 16mm | 8t | 105.5mm | 113mm | 30.5mm | 19mm | 20mm | 2.1kg |
| 885320 | 20mm | 12.5t | 140.7mm | 143mm | 37.5mm | 23mm | 25mm | 4kg |
| 885322 | 22mm | 15t | 165mm | 160.5mm | 44mm | 26mm | 28mm | 6.36kg |
| 885326 | 26mm | 21.2t | 188.5mm | 181.3mm | 44mm | 34mm | 30mm | 9.6kg |
| 885332 | 32mm | 31.5t | 230mm | 223mm | 57mm | 40mm | 38mm | 19.4kg |
