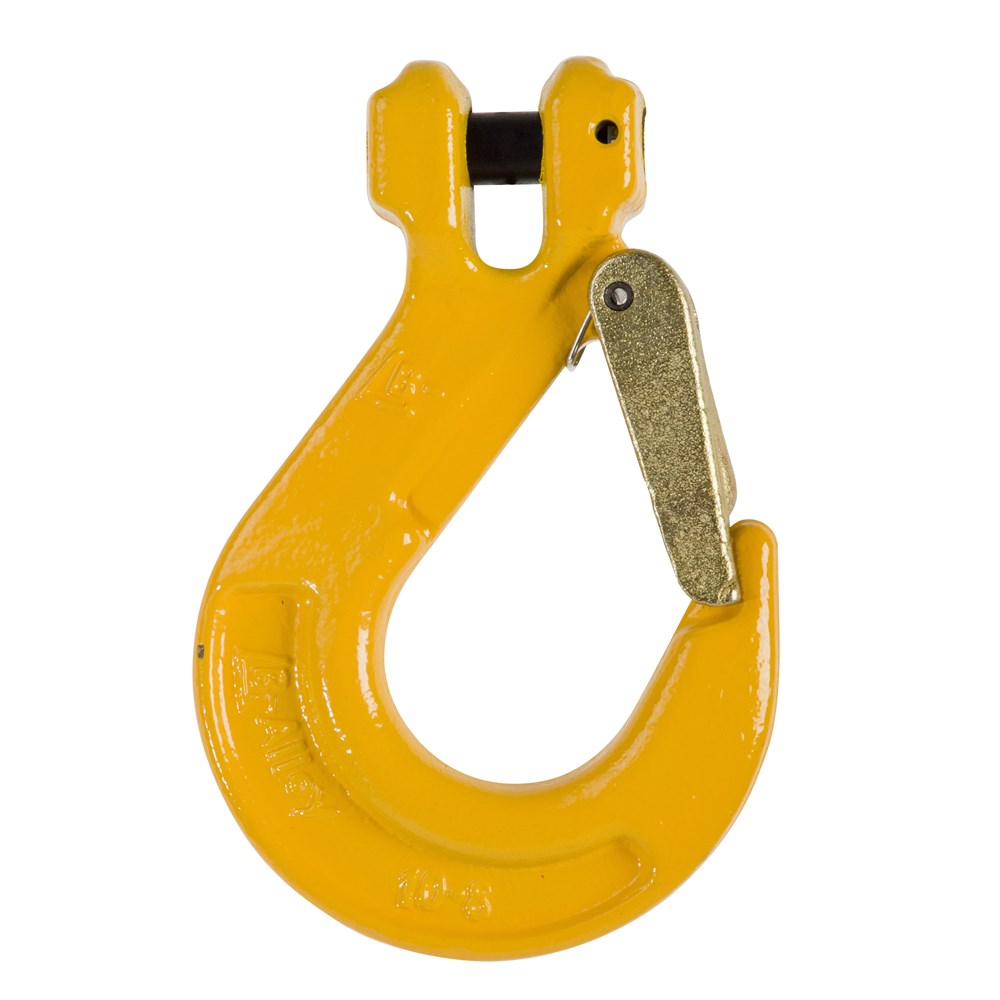

Beaver G80 Clevis Sling Hook With Safety Latch 22mm
885122per Each
$211.81 inc GSTTrade $190.63, save $21.18Trade accounts save 10%. Apply with your ABN
| b | 229mm |
| d | 26.3mm |
| e | 215mm |
| g | 79mm |
| h | 60.4mm |
| WLL | 15t |
| Chain Size | 22mm |
| Approx Weight | 10.4kg |
About this product
The Beaver G80 Clevis Sling Hook With Safety Latch 22mm is the biggest hook in the range, built for 22mm Grade 80 chain and rated to a 15t working load limit. The clevis end pins straight onto the chain, so you skip the connecting link and keep the assembly short. At 10.4kg with a 229mm overall length and a 79mm throat opening, it is a serious bit of gear for heavy lifts.
Made from heat treated alloy steel, with a safety latch that closes and locks on its own so the hook stays shut under load. Body dimensions run 26.3mm at d, 215mm at e and 60.4mm at h. It suits general sling work where the loads are at the top end. Beaver Grade 80 components carry identification marks, and this hook complies to AS 3776.
Common questions
- what is the WLL of a 22mm G80 clevis sling hook
- This size is rated to a 15t working load limit. It is matched to 22mm Grade 80 chain.
- what is the beaver g80 clevis sling hook made from
- Heat treated alloy steel, as used across the Beaver Grade 80 component range, with quality testing carried out through the manufacturing process.
- do i need a connecting link with a clevis sling hook
- No. The clevis pin connects the hook directly to the chain, so no separate connecting link is needed.
Full specifications
| Product code | Chain Size | WLL | e | d | h | b | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 885106 | 6mm | 1.1t | 76.4mm | 7.8mm | 20mm | 77.4mm | 24mm | 0.23kg |
| 885107 | 7-8mm | 2t | 86mm | 9.3mm | 25mm | 85mm | 27mm | 0.48kg |
| 885110 | 10mm | 3.2t | 104mm | 13mm | 31mm | 103mm | 33.5mm | 0.95kg |
| 885113 | 13mm | 5.3t | 127.8mm | 16.4mm | 42.5mm | 127.5mm | 40mm | 1.85kg |
| 885116 | 16mm | 8t | 148mm | 21.3mm | 54mm | 161mm | 51mm | 3.94kg |
| 885120 | 20mm | 12.5t | 179mm | 24.3mm | 58mm | 188mm | 59mm | 6.36kg |
| 885122 | 22mm | 15t | 215mm | 26.3mm | 60.4mm | 229mm | 79mm | 10.4kg |
