what is the WLL of a 20mm G80 clevis sling hook

This size carries a working load limit of 12.5t. It is matched to 20mm Grade 80 chain.

beaver g80 clevis sling hook 20mm weight

Approximately 6.36kg. It is one of the larger hooks in the Beaver Grade 80 clevis sling hook range.

do you need a connecting link with a clevis sling hook

No. The clevis pin lets the hook connect directly to the chain, so there is no separate connecting link to fit or inspect.

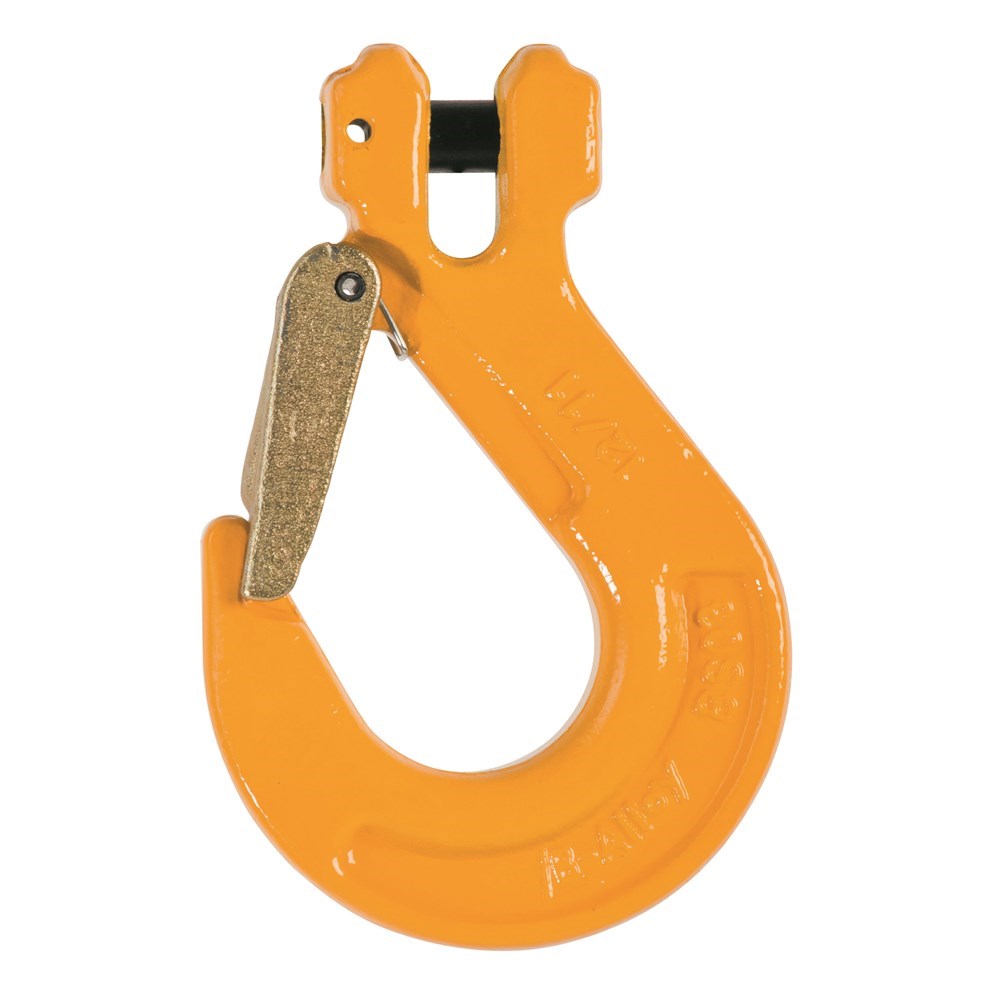

Beaver G80 Clevis Sling Hook With Safety Latch 20mm

Name: Beaver G80 Clevis Sling Hook With Safety Latch 20mm
Brand: Beaver
SKU: 885120
Price: 164.95 AUD
Availability: InStock

885120per Each

Chain Size

$164.95 inc GSTTrade $148.46, save $16.49Trade accounts save 10%. Apply with your ABN

b	188mm
d	24.3mm
e	179mm
g	59mm
h	58mm
WLL	12.5t
Chain Size	20mm
Approx Weight	6.36kg

About this product

The Beaver G80 Clevis Sling Hook With Safety Latch 20mm is the business end of a heavy chain sling, connecting straight onto 20mm Grade 80 chain with no joining link needed. This is the second largest size in the range, rated to a 12.5t working load limit, so it suits the big lifts where the smaller hooks run out of capacity. The safety latch closes and locks on its own, so the hook won't open under load.

Made from heat treated alloy steel, it measures 188mm on the b dimension and 179mm on the e, with a 59mm opening and a 24.3mm pin diameter. At 6.36kg it has some heft to it, which is expected at this size. Beaver Grade 80 components carry identification marks so you can check what you have got during inspection. Complies to AS 3776.

Common questions

what is the WLL of a 20mm G80 clevis sling hook: This size carries a working load limit of 12.5t. It is matched to 20mm Grade 80 chain.
beaver g80 clevis sling hook 20mm weight: Approximately 6.36kg. It is one of the larger hooks in the Beaver Grade 80 clevis sling hook range.
do you need a connecting link with a clevis sling hook: No. The clevis pin lets the hook connect directly to the chain, so there is no separate connecting link to fit or inspect.

Full specifications

Product code	Chain Size	WLL	e	d	h	b	g	Approx Weight
885106	6mm	1.1t	76.4mm	7.8mm	20mm	77.4mm	24mm	0.23kg
885107	7-8mm	2t	86mm	9.3mm	25mm	85mm	27mm	0.48kg
885110	10mm	3.2t	104mm	13mm	31mm	103mm	33.5mm	0.95kg
885113	13mm	5.3t	127.8mm	16.4mm	42.5mm	127.5mm	40mm	1.85kg
885116	16mm	8t	148mm	21.3mm	54mm	161mm	51mm	3.94kg
885120	20mm	12.5t	179mm	24.3mm	58mm	188mm	59mm	6.36kg
885122	22mm	15t	215mm	26.3mm	60.4mm	229mm	79mm	10.4kg

Questions about this equipment? Send us a message and we’ll check it against the job.
