what is the WLL of a 16mm G80 clevis sling hook

This size carries an 8t working load limit on 16mm Grade 80 chain.

beaver g80 clevis sling hook 16mm weight

Around 3.94kg each, with an overall length of 161mm and a 51mm hook opening.

do I need a connecting link with a clevis sling hook

No. The clevis pin lets the hook connect directly to the chain, so no separate connecting link is required.

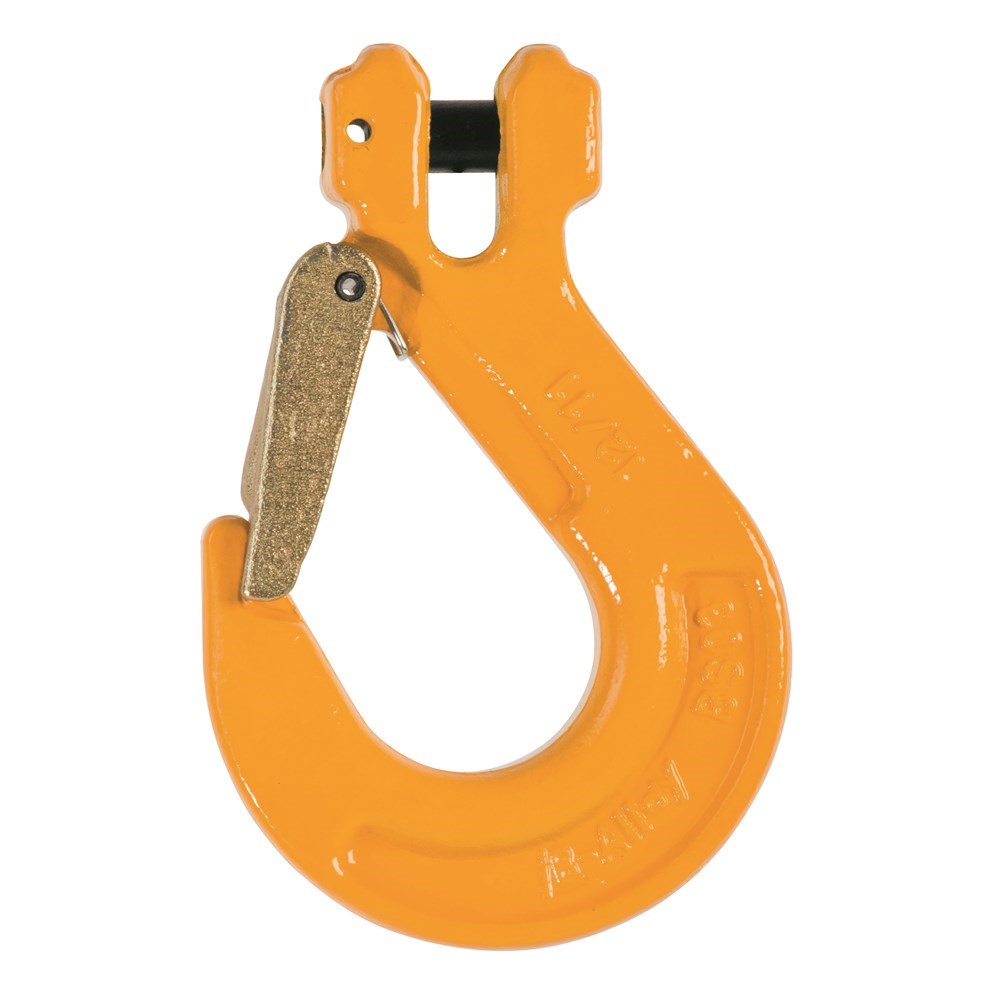

Beaver G80 Clevis Sling Hook With Safety Latch 16mm

Name: Beaver G80 Clevis Sling Hook With Safety Latch 16mm
Brand: Beaver
SKU: 885116
Price: 58.82 AUD
Availability: InStock

885116per Each

Chain Size

$58.82 inc GSTTrade $52.94, save $5.88Trade accounts save 10%. Apply with your ABN

b	161mm
d	21.3mm
e	148mm
g	51mm
h	54mm
WLL	8t
Chain Size	16mm
Approx Weight	3.94kg

About this product

The Beaver G80 Clevis Sling Hook With Safety Latch 16mm is a general-purpose lifting hook that pins straight onto 16mm Grade 80 chain, rated to an 8t working load limit. It sits near the heavier end of the range, so it suits the bigger chain slings doing structural steel, plant lifts and mine site recovery work.

Made from heat treated alloy steel, it measures 161mm long with a 148mm throat height, a 51mm opening and a 54mm seat width, and the pin diameter is 21.3mm. Weight is about 3.94kg, so it is a decent lump in the hand. The latch closes and locks on its own, meaning the hook will not open under load. Beaver Grade 80 components carry identification marks and comply to AS 3776. The clevis end removes the need for a connecting link.

Common questions

what is the WLL of a 16mm G80 clevis sling hook: This size carries an 8t working load limit on 16mm Grade 80 chain.
beaver g80 clevis sling hook 16mm weight: Around 3.94kg each, with an overall length of 161mm and a 51mm hook opening.
do I need a connecting link with a clevis sling hook: No. The clevis pin lets the hook connect directly to the chain, so no separate connecting link is required.

Full specifications

Product code	Chain Size	WLL	e	d	h	b	g	Approx Weight
885106	6mm	1.1t	76.4mm	7.8mm	20mm	77.4mm	24mm	0.23kg
885107	7-8mm	2t	86mm	9.3mm	25mm	85mm	27mm	0.48kg
885110	10mm	3.2t	104mm	13mm	31mm	103mm	33.5mm	0.95kg
885113	13mm	5.3t	127.8mm	16.4mm	42.5mm	127.5mm	40mm	1.85kg
885116	16mm	8t	148mm	21.3mm	54mm	161mm	51mm	3.94kg
885120	20mm	12.5t	179mm	24.3mm	58mm	188mm	59mm	6.36kg
885122	22mm	15t	215mm	26.3mm	60.4mm	229mm	79mm	10.4kg
