| b | 127.5mm |
| d | 16.4mm |
| e | 127.8mm |
| g | 40mm |
| h | 42.5mm |
| WLL | 5.3t |
| Chain Size | 13mm |
| Approx Weight | 1.85kg |

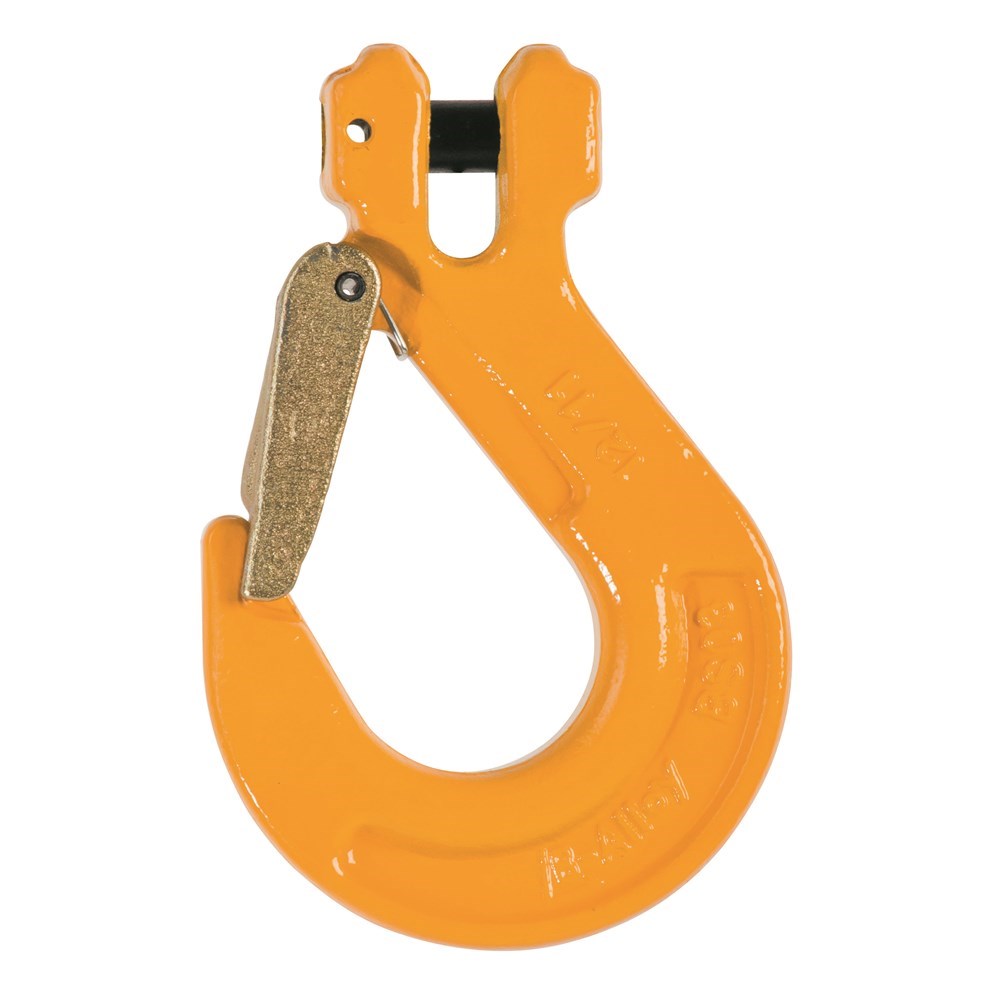

The Beaver G80 Clevis Sling Hook With Safety Latch in 13mm is a general-purpose lifting hook that pins straight onto 13mm Grade 80 chain, no connecting link needed. At 5.3t working load limit, this is the mid-heavy option in the range, the one most crews reach for on standard chain slings doing steel, plant and site lifts. The safety latch closes and locks on its own, so the hook won't open under load.
Made from heat treated alloy steel, with a 16.4mm clevis pin, 40mm throat opening and 42.5mm width across the hook. Overall length is 127.8mm and it weighs about 1.85kg, so it handles without being awkward on the end of a sling leg. Quality testing is carried out through manufacturing, and Beaver Grade 80 components carry identification marks for easy checking in service. Complies to AS 3776.
| Product code | Chain Size | WLL | e | d | h | b | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 885106 | 6mm | 1.1t | 76.4mm | 7.8mm | 20mm | 77.4mm | 24mm | 0.23kg |
| 885107 | 7-8mm | 2t | 86mm | 9.3mm | 25mm | 85mm | 27mm | 0.48kg |
| 885110 | 10mm | 3.2t | 104mm | 13mm | 31mm | 103mm | 33.5mm | 0.95kg |
| 885113 | 13mm | 5.3t | 127.8mm | 16.4mm | 42.5mm | 127.5mm | 40mm | 1.85kg |
| 885116 | 16mm | 8t | 148mm | 21.3mm | 54mm | 161mm | 51mm | 3.94kg |
| 885120 | 20mm | 12.5t | 179mm | 24.3mm | 58mm | 188mm | 59mm | 6.36kg |
| 885122 | 22mm | 15t | 215mm | 26.3mm | 60.4mm | 229mm | 79mm | 10.4kg |
