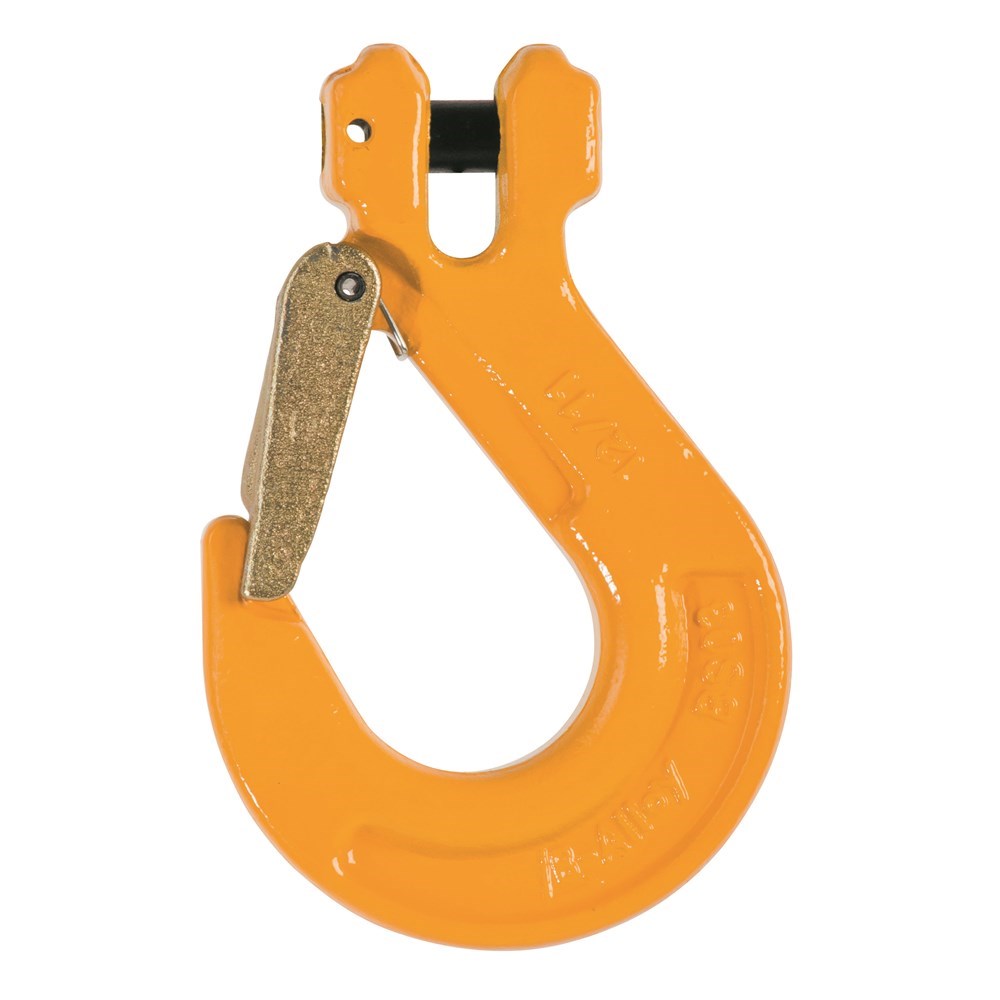

Beaver G80 Clevis Sling Hook With Safety Latch 10mm
885110per Each
$15.70 Trade inc GST$17.44 without a trade accountTrade accounts save 10% — apply with your ABN
| b | 103mm |
| d | 13mm |
| e | 104mm |
| g | 33.5mm |
| h | 31mm |
| WLL | 3.2t |
| Chain Size | 10mm |
| Approx Weight | 0.95kg |
Full specifications
| Product code | Chain Size | WLL | e | d | h | b | g | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 885106 | 6mm | 1.1t | 76.4mm | 7.8mm | 20mm | 77.4mm | 24mm | 0.23kg |
| 885107 | 7-8mm | 2t | 86mm | 9.3mm | 25mm | 85mm | 27mm | 0.48kg |
| 885110 | 10mm | 3.2t | 104mm | 13mm | 31mm | 103mm | 33.5mm | 0.95kg |
| 885113 | 13mm | 5.3t | 127.8mm | 16.4mm | 42.5mm | 127.5mm | 40mm | 1.85kg |
| 885116 | 16mm | 8t | 148mm | 21.3mm | 54mm | 161mm | 51mm | 3.94kg |
| 885120 | 20mm | 12.5t | 179mm | 24.3mm | 58mm | 188mm | 59mm | 6.36kg |
| 885122 | 22mm | 15t | 215mm | 26.3mm | 60.4mm | 229mm | 79mm | 10.4kg |
