what chain size does the 2t beaver clevis sling hook suit

This one is built for 7-8mm Grade 80 chain, with a 2t working load limit.

beaver g80 clevis sling hook standard

It complies to AS 3776, and Beaver Grade 80 hooks carry identification marks so you can confirm what you have on the job.

do i need a connecting link with a clevis sling hook

No. The clevis and pin fit directly onto the chain, which saves you fitting and checking a separate connecting link.

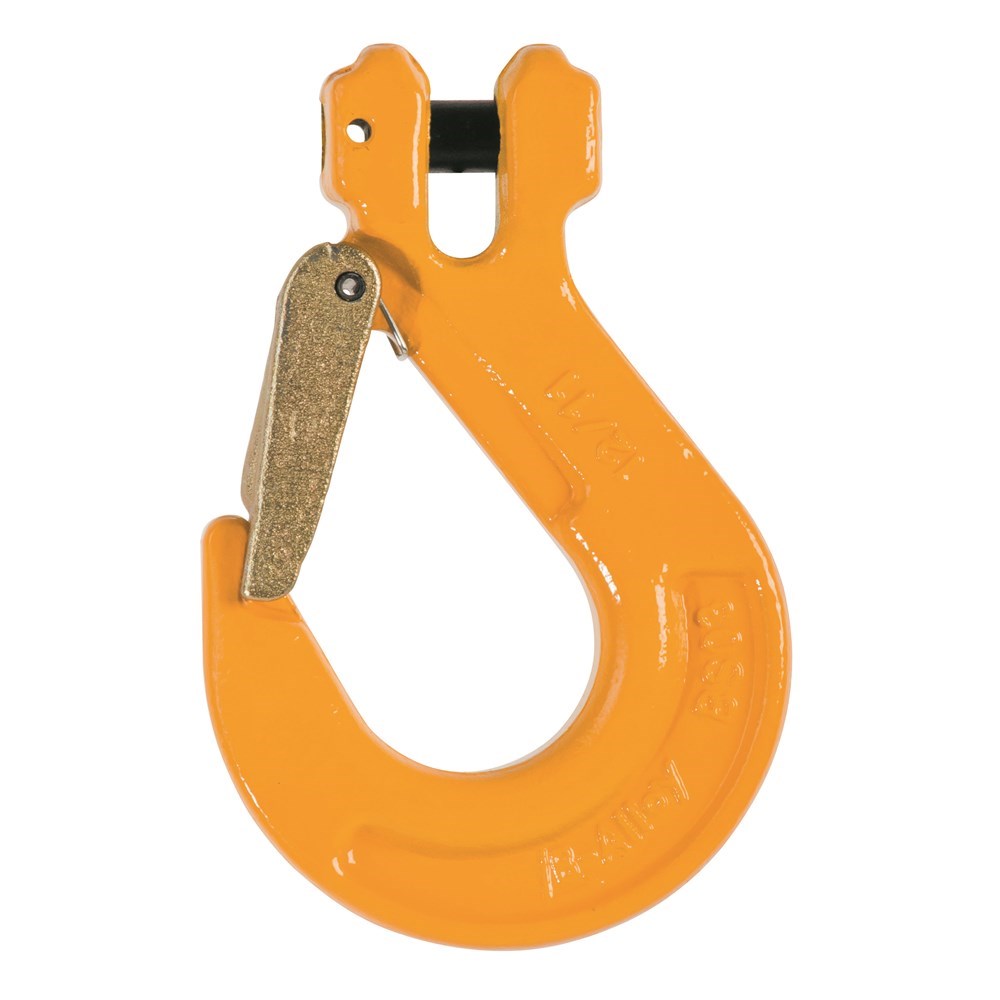

Beaver G80 Clevis Sling Hook With Safety Latch 7-8mm

Name: Beaver G80 Clevis Sling Hook With Safety Latch 7-8mm
Brand: Beaver
SKU: 885107
Price: 9.69 AUD
Availability: InStock

885107per Each

Chain Size

$9.69 inc GSTTrade $8.72, save $0.97Trade accounts save 10%. Apply with your ABN

b	85mm
d	9.3mm
e	86mm
g	27mm
h	25mm
WLL	2t
Chain Size	7-8mm
Approx Weight	0.48kg

About this product

The Beaver G80 Clevis Sling Hook With Safety Latch in 7-8mm is the end fitting for a Grade 80 chain sling running 7mm or 8mm chain, rated to a 2t working load limit. The clevis mouth and 9.3mm pin connect straight onto the chain, so there is no connecting link to add or inspect. Spring latch closes on its own and stays shut under load.

Body measurements are 85mm across the b dimension, 86mm at e, a 27mm throat opening and 25mm at h, with the hook weighing around 0.48kg. It is made from heat treated alloy steel and carries Beaver's identification marks, and it complies to AS 3776. A general purpose choice for most sling work on site, in the yard or underhook on a crane.

Common questions

what chain size does the 2t beaver clevis sling hook suit: This one is built for 7-8mm Grade 80 chain, with a 2t working load limit.
beaver g80 clevis sling hook standard: It complies to AS 3776, and Beaver Grade 80 hooks carry identification marks so you can confirm what you have on the job.
do i need a connecting link with a clevis sling hook: No. The clevis and pin fit directly onto the chain, which saves you fitting and checking a separate connecting link.

Full specifications

Product code	Chain Size	WLL	e	d	h	b	g	Approx Weight
885106	6mm	1.1t	76.4mm	7.8mm	20mm	77.4mm	24mm	0.23kg
885107	7-8mm	2t	86mm	9.3mm	25mm	85mm	27mm	0.48kg
885110	10mm	3.2t	104mm	13mm	31mm	103mm	33.5mm	0.95kg
885113	13mm	5.3t	127.8mm	16.4mm	42.5mm	127.5mm	40mm	1.85kg
885116	16mm	8t	148mm	21.3mm	54mm	161mm	51mm	3.94kg
885120	20mm	12.5t	179mm	24.3mm	58mm	188mm	59mm	6.36kg
885122	22mm	15t	215mm	26.3mm	60.4mm	229mm	79mm	10.4kg
