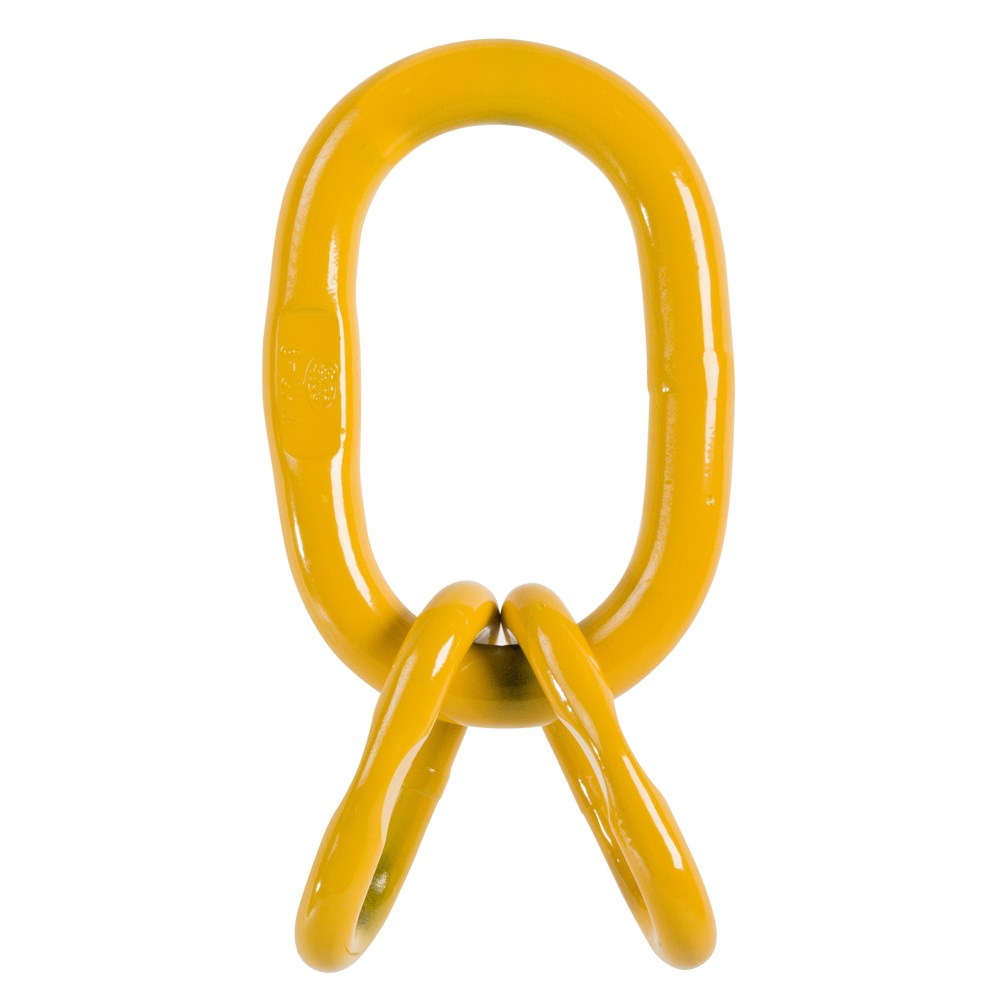

Beaver G80 Recessed Enlarged Multi-Leg Master Link - Oblong 22mm
883722per Each
$815.64 inc GSTTrade $734.08, save $81.56Trade accounts save 10%. Apply with your ABN
| E | 520mm |
| F | 190mm |
| R | 350mm |
| S | 50mm |
| f | 75mm |
| r | 170mm |
| s | 36mm |
| t | - |
| Chain Size | 22mm |
| WLL at 60° | 31.5t |
| Approx Weight | 25.1kg |
About this product
The Beaver G80 Recessed Enlarged Multi-Leg Master Link in 22mm is the top assembly for heavy 2, 3 and 4 leg chain slings, sitting on the crane hook and carrying the legs below. This size is the heavy end of the range, rated at 31.5t working load limit at 60 degrees and weighing roughly 25.1kg, so it is aimed at big lifts on mine sites and major construction work.
The master link measures 520mm at E and 190mm at F, with 50mm section thickness, and the two recessed intermediate links run 350mm by 170mm with 36mm section. The enlarged oblong shape gives room for larger crane hooks without crowding the legs. Made from heat treated alloy steel, quality tested through manufacture, and marked for identification in the yard. Complies to AS 3776.
Common questions
- what is the WLL of a 22mm G80 master link assembly
- This 22mm Beaver assembly has a working load limit of 31.5t, rated at 60 degrees included angle.
- how many legs can a beaver recessed master link take
- It suits 2, 3 and 4 leg chain sling configurations. The unit comes as one master link with two intermediate links of matching capacity.
- what is a beaver g80 master link made from
- Heat treated alloy steel, with quality testing carried out through the manufacturing process and identification marks on the components.
Full specifications
| Product code | Chain Size | WLL at 60° | S | R | F | E | s | r | f | t | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 883707 | 7mm | 3.15t | 19mm | 135mm | 75mm | 195mm | 13mm | 60mm | 38mm | 8mm | 1.35kg |
| 883708 | 8mm | 4.25t | 23mm | 160mm | 90mm | 230mm | 16mm | 70mm | 34mm | 8mm | 2.32kg |
| 883710 | 10mm | 6.7t | 27mm | 180mm | 100mm | 265mm | 18mm | 85mm | 40mm | 11.5mm | 3.58kg |
| 883713 | 13mm | 11.2t | 33mm | 200mm | 110mm | 315mm | 23mm | 115mm | 50mm | 14mm | 6.57kg |
| 883716 | 16mm | 17t | 36mm | 260mm | 140mm | 400mm | 27mm | 140mm | 65mm | 18mm | 10.3kg |
| 883720 | 19-20mm | 26.5t | 45mm | 340mm | 180mm | 490mm | 33mm | 150mm | 70mm | - | 19.3kg |
| 883722 | 22mm | 31.5t | 50mm | 350mm | 190mm | 520mm | 36mm | 170mm | 75mm | - | 25.1kg |
| 883726 | 26mm | 45t | 56mm | 400mm | 200mm | 570mm | 40mm | 170mm | 80mm | - | 34.3kg |
| 883732 | 32mm | 56.8t | 70mm | 460mm | 250mm | 660mm | 50mm | 200mm | 100mm | - | 64kg |
