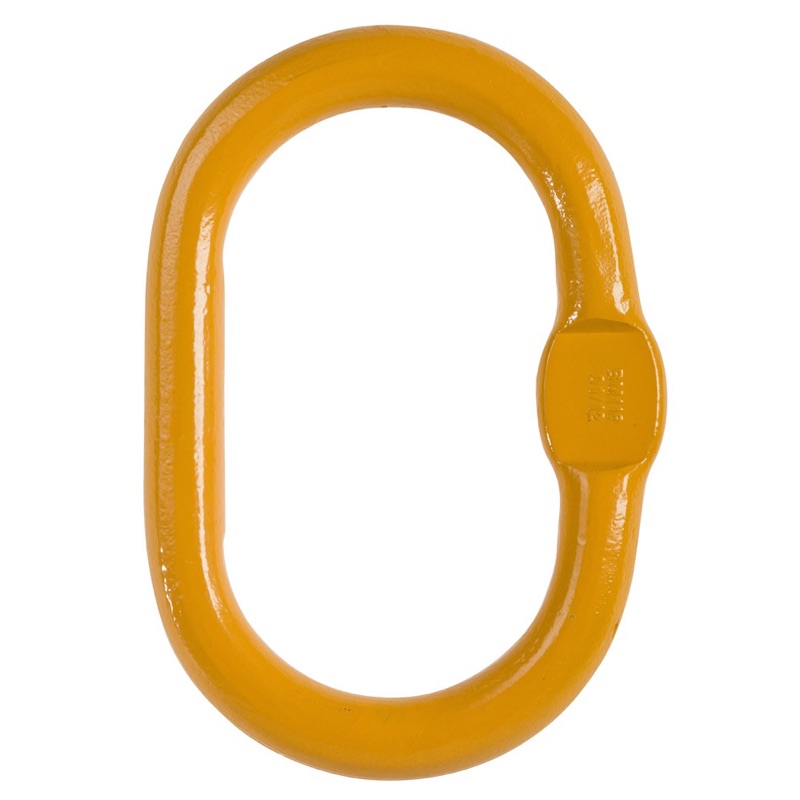

Beaver G80 Single Master Link 1 Leg x 22mm
883522Aper Each
$115.27 inc GSTTrade $103.74, save $11.53Trade accounts save 10%. Apply with your ABN
| A | 275mm |
| B | 150mm |
| D | 38mm |
| WLL | 21.6t |
| S x H | - |
| Chain Size | 22mm |
| Approx Weight | 7.50kg |
| 1 Leg Chain Size | 22mm |
| 2 Leg Chain Size | 20mm |
| Chain Sling Configuration | 1 Leg |
About this product
The Beaver G80 Single Master Link is the top connection point for a chain sling, giving the crane hook one clean place to sit. This size takes 22mm chain on a single leg, or 20mm chain in a 2 leg configuration, with a working load limit of 21.6t. Body dimensions are 275mm by 150mm with 38mm section, and it weighs in around 7.50kg, so it sits at the heavy end of the range.
Made from heat treated alloy steel and tested through the manufacturing process, it complies to AS 3776. Beaver Grade 80 components carry identification marks, which makes life easier when you are checking gear on site or working through an inspection register. Pick the size that matches your chain, because the link and the chain need to work as a matched set.
Common questions
- what is the WLL of a 22mm G80 master link
- This Beaver G80 Single Master Link is rated to a working load limit of 21.6t. That applies to a single leg of 22mm chain, or a 2 leg sling made with 20mm chain.
- what chain size fits a beaver 22mm master link
- It takes 22mm chain in a single leg setup, or 20mm chain when you build it into a 2 leg sling.
- what is a beaver grade 80 master link made of
- Heat treated alloy steel, with quality testing done through the manufacturing process. It complies to AS 3776 and carries identification marks.
Full specifications
| Product Code | 1 Leg Chain Size | 2 Leg Chain Size | WLL | A | B | D | S x H | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 883507A | 7mm | 6mm | 1.9t | 110mm | 60mm | 14mm | 7+0.5x25 | 0.34kg |
| 883508A | 8mm | 7mm | 2.6t | 120mm | 70mm | 14mm | 7+0.5x25 | 0.38kg |
| 883510A | 10mm | 8mm | 3.5t | 140mm | 80mm | 17mm | 8+0.5x28 | 0.67kg |
| 883513A | 13mm | 10mm | 5.5t | 160mm | 95mm | 20mm | 11±0.5x35 | 1.20kg |
| 883516A | 16mm | 13mm | 9.2t | 190mm | 110mm | 26mm | 14±0.5x43 | 2.45kg |
| 883520A | 20mm | 16mm | 13.8t | 230mm | 130mm | 32mm | 17±0.5x55 | 4.48kg |
| 883522A | 22mm | 20mm | 21.6t | 275mm | 150mm | 38mm | - | 7.50kg |
| 883526A | 26mm | 22mm | 26t | 340mm | 180mm | 45mm | - | 12.80kg |
| 883532A | 32mm | 26mm | 36.7t | 350mm | 190mm | 50mm | - | 16.55kg |
| 883536A | 36mm | 32mm | 54.5t | 400mm | 200mm | 56mm | - | 23.28kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
