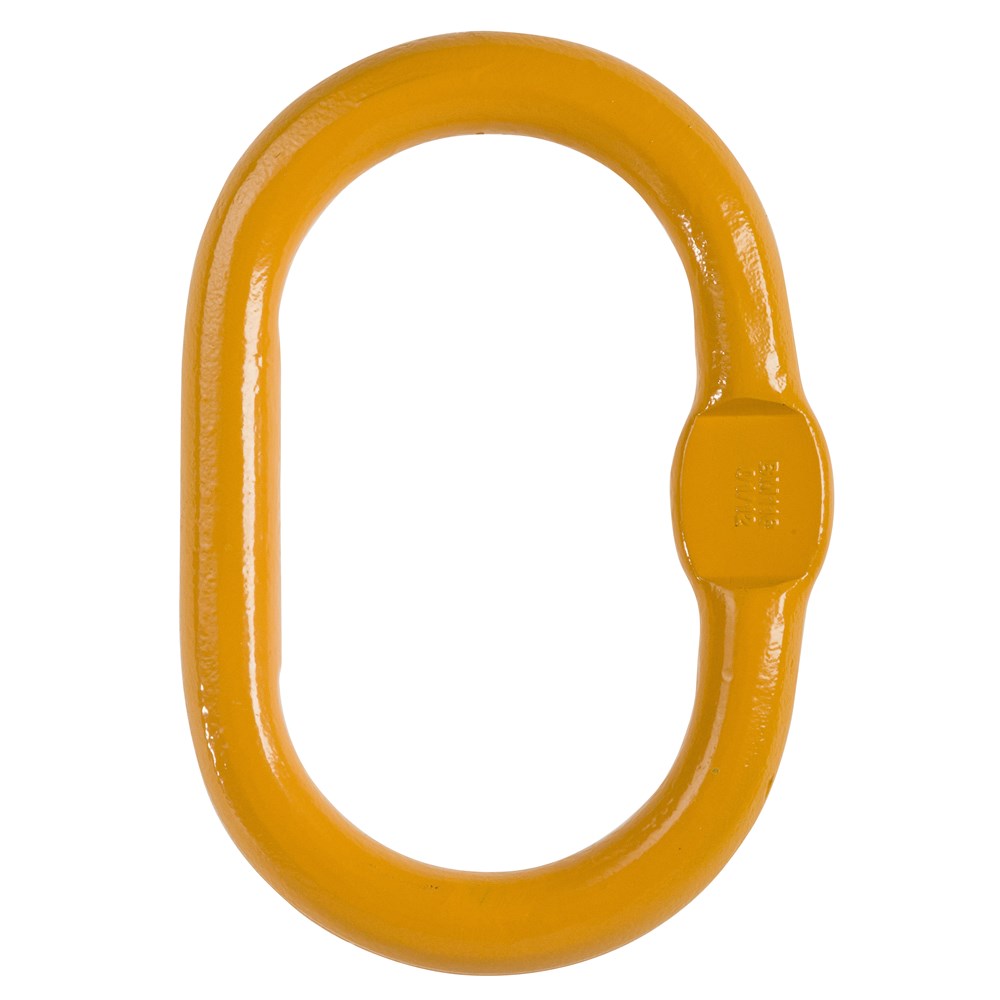

Beaver G80 Single Master Link 1 Leg x 10mm
883510Aper Each
$11.31 inc GSTTrade $10.18, save $1.13Trade accounts save 10%. Apply with your ABN
| A | 140mm |
| B | 80mm |
| D | 17mm |
| WLL | 3.5t |
| S x H | 8+0.5x28 |
| Chain Size | 10mm |
| Approx Weight | 0.67kg |
| 1 Leg Chain Size | 10mm |
| 2 Leg Chain Size | 8mm |
| Chain Sling Configuration | 1 Leg |
About this product
The Beaver G80 Single Master Link 1 Leg x 10mm is the top fitting that connects your chain sling to the crane hook. This size carries a working load limit of 3.5t, and takes 10mm chain in a single leg build or 8mm chain across two legs. The link body measures 140mm long by 80mm wide with 17mm material, so there is room for the hook to sit properly without jamming.
Made from heat treated alloy steel and tested through manufacture, it holds up to the knocks of mine site and construction work. At roughly 0.67kg it is easy enough to handle when you are assembling or swapping out slings. Identification marks are stamped on the body so you can confirm grade and rating during inspection. Complies to AS 3776.
Common questions
- What is the WLL of the Beaver G80 10mm master link?
- It is rated to a working load limit of 3.5t.
- What chain size does this master link take?
- It suits 10mm chain in a single leg sling, or 8mm chain if you are building a two leg sling.
- What is the Beaver G80 master link made from?
- Heat treated alloy steel, with quality testing carried out through the manufacturing process.
Full specifications
| Product Code | 1 Leg Chain Size | 2 Leg Chain Size | WLL | A | B | D | S x H | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 883507A | 7mm | 6mm | 1.9t | 110mm | 60mm | 14mm | 7+0.5x25 | 0.34kg |
| 883508A | 8mm | 7mm | 2.6t | 120mm | 70mm | 14mm | 7+0.5x25 | 0.38kg |
| 883510A | 10mm | 8mm | 3.5t | 140mm | 80mm | 17mm | 8+0.5x28 | 0.67kg |
| 883513A | 13mm | 10mm | 5.5t | 160mm | 95mm | 20mm | 11±0.5x35 | 1.20kg |
| 883516A | 16mm | 13mm | 9.2t | 190mm | 110mm | 26mm | 14±0.5x43 | 2.45kg |
| 883520A | 20mm | 16mm | 13.8t | 230mm | 130mm | 32mm | 17±0.5x55 | 4.48kg |
| 883522A | 22mm | 20mm | 21.6t | 275mm | 150mm | 38mm | - | 7.50kg |
| 883526A | 26mm | 22mm | 26t | 340mm | 180mm | 45mm | - | 12.80kg |
| 883532A | 32mm | 26mm | 36.7t | 350mm | 190mm | 50mm | - | 16.55kg |
| 883536A | 36mm | 32mm | 54.5t | 400mm | 200mm | 56mm | - | 23.28kg |
