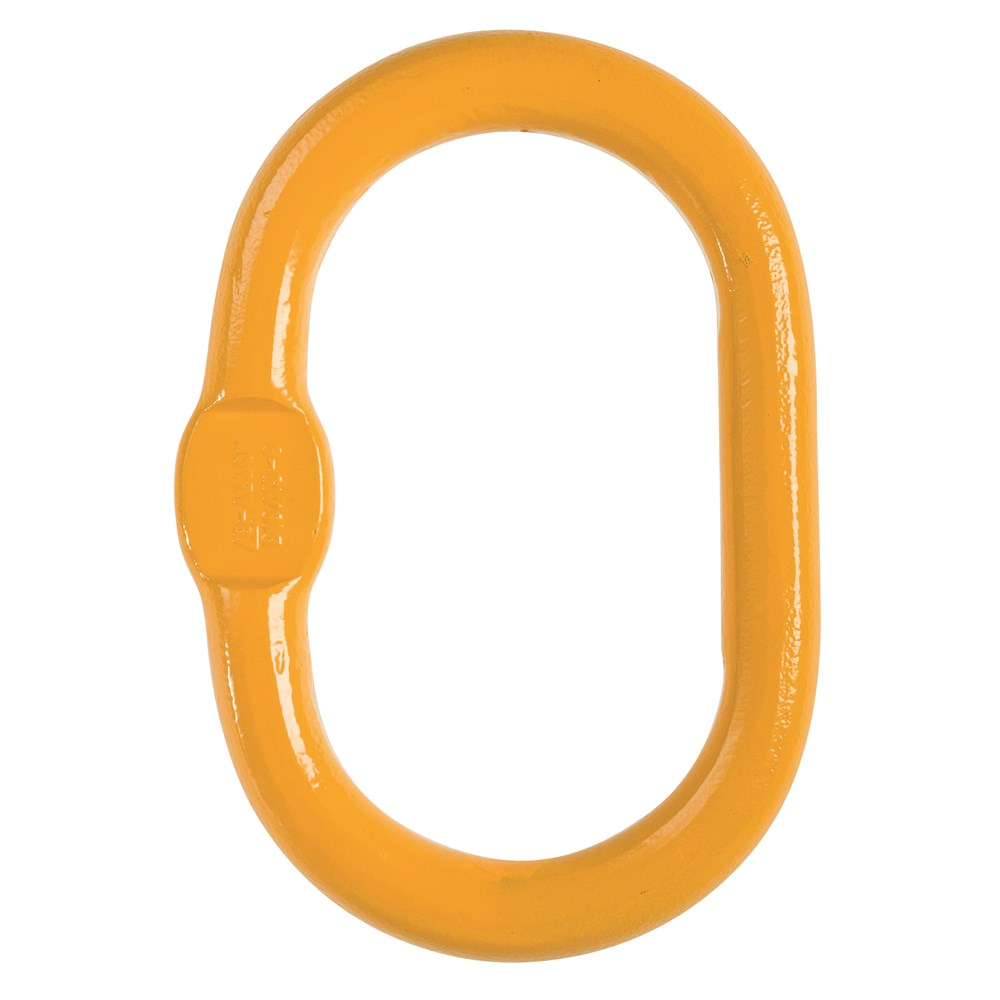

Beaver G80 Single Master Link 1 Leg x 8mm
883508Aper Each
$7.09 inc GSTTrade $6.38, save $0.71Trade accounts save 10%. Apply with your ABN
| A | 120mm |
| B | 70mm |
| D | 14mm |
| WLL | 2.6t |
| S x H | 7+0.5x25 |
| Chain Size | 8mm |
| Approx Weight | 0.38kg |
| 1 Leg Chain Size | 8mm |
| 2 Leg Chain Size | 7mm |
| Chain Sling Configuration | 1 Leg |
About this product
The Beaver G80 Single Master Link 1 Leg x 8mm is the top connection point for a chain sling, giving the crane hook one clean pick-up point. This size is rated to a 2.6t working load limit and is matched to 8mm chain in a single leg build, or 7mm chain if you run it as a two leg. The link body measures 120mm by 70mm with 14mm section, and it weighs in at around 0.38kg.
Made from heat treated alloy steel, so it handles the knocks that come with heavy lifting on site. Quality testing is carried out through the manufacturing process, and the link carries identification marks so you can confirm what you have on the hook. Complies to AS 3776. Check the body for wear, stretch or cracks before every lift and pull it from service if anything looks off.
Common questions
- what is the WLL of an 8mm G80 master link
- This Beaver G80 Single Master Link has a working load limit of 2.6t. That rating applies when it is used correctly as the master link in a chain sling.
- what chain size does the 8mm beaver master link take
- It suits 8mm chain in a single leg configuration, or 7mm chain if you are making up a two leg sling.
- what is the beaver g80 master link made of
- Heat treated alloy steel, which is what gives it the strength for heavy lifting work. It complies to AS 3776 and carries identification marks.
Full specifications
| Product Code | 1 Leg Chain Size | 2 Leg Chain Size | WLL | A | B | D | S x H | Approx Weight |
|---|---|---|---|---|---|---|---|---|
| 883507A | 7mm | 6mm | 1.9t | 110mm | 60mm | 14mm | 7+0.5x25 | 0.34kg |
| 883508A | 8mm | 7mm | 2.6t | 120mm | 70mm | 14mm | 7+0.5x25 | 0.38kg |
| 883510A | 10mm | 8mm | 3.5t | 140mm | 80mm | 17mm | 8+0.5x28 | 0.67kg |
| 883513A | 13mm | 10mm | 5.5t | 160mm | 95mm | 20mm | 11±0.5x35 | 1.20kg |
| 883516A | 16mm | 13mm | 9.2t | 190mm | 110mm | 26mm | 14±0.5x43 | 2.45kg |
| 883520A | 20mm | 16mm | 13.8t | 230mm | 130mm | 32mm | 17±0.5x55 | 4.48kg |
| 883522A | 22mm | 20mm | 21.6t | 275mm | 150mm | 38mm | - | 7.50kg |
| 883526A | 26mm | 22mm | 26t | 340mm | 180mm | 45mm | - | 12.80kg |
| 883532A | 32mm | 26mm | 36.7t | 350mm | 190mm | 50mm | - | 16.55kg |
| 883536A | 36mm | 32mm | 54.5t | 400mm | 200mm | 56mm | - | 23.28kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
