Beaver G80 Clevis Single Master Link 10mm
882010per Each
$76.48 inc GSTTrade $68.83, save $7.65Trade accounts save 10%. Apply with your ABN
| b | 111mm |
| d | 12mm |
| e | 167mm |
| f | 12mm |
| h | 197mm |
| s | 18mm |
| h2 | 128mm |
| WLL | 3.2t |
| Chain Size | 10mm |
| Approx Weight | 1.2kg |
About this product

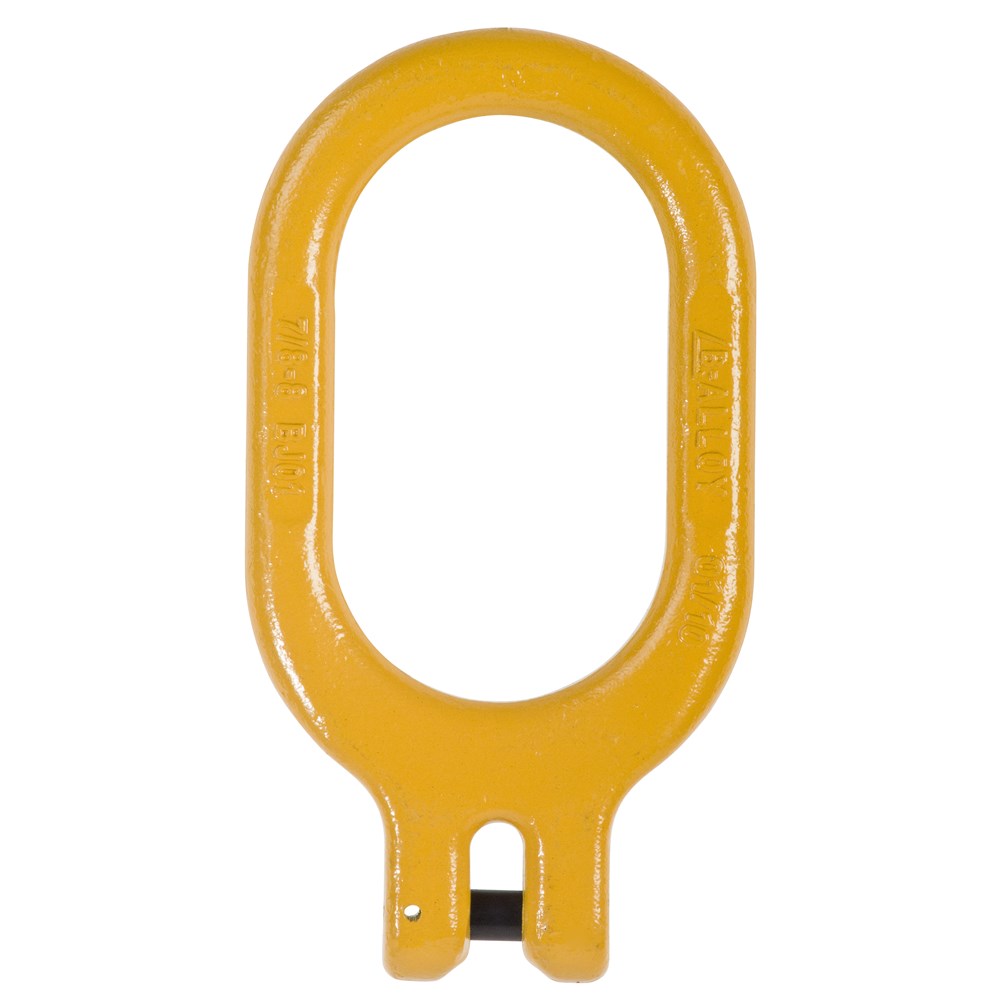

The Beaver G80 Clevis Single Master Link 10mm is the top fitting for a single leg Grade 80 chain sling, giving you a link for the hook and a clevis for the chain. This is the 10mm chain size in the range, rated to a 3.2t working load limit, with a 197mm overall height, 111mm body width and an 18mm clevis pin. Weight is around 1.2kg.
The clevis pin connects straight onto 10mm chain, so there is no connecting link to fit or check. Made from heat treated alloy steel and marked for traceability, it complies to AS 3776. Beaver Grade 80 chain and components meet AS 2321 and AS 3776 respectively. When building a chain sling assembly, check the WLL chart for the chain size you are running.
Common questions
- what is the WLL of a 10mm G80 clevis master link
- This one is rated to a 3.2t working load limit on 10mm Grade 80 chain. For sling assemblies, confirm against the WLL chart for your chain size.
- what chain size does the beaver 882010 master link suit
- It is built for 10mm Grade 80 chain, with an 18mm clevis pin that connects directly to the chain.
- do i need a connecting link with a clevis master link
- No. The clevis pin attaches straight to the chain, which saves fitting a separate connecting link.
Full specifications
| Product code | Chain Size | WLL | e | b | h | h2 | d | f | s | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 882007 | 7-8mm | 2t | 138mm | 92mm | 163.7mm | 105mm | 9.7mm | 9mm | 16mm | 0.7kg |
| 882010 | 10mm | 3.2t | 167mm | 111mm | 197mm | 128mm | 12mm | 12mm | 18mm | 1.2kg |
| 882016 | 16mm | 8t | 230mm | 152mm | 276mm | 165mm | 20mm | 18mm | 26mm | 3.8kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
