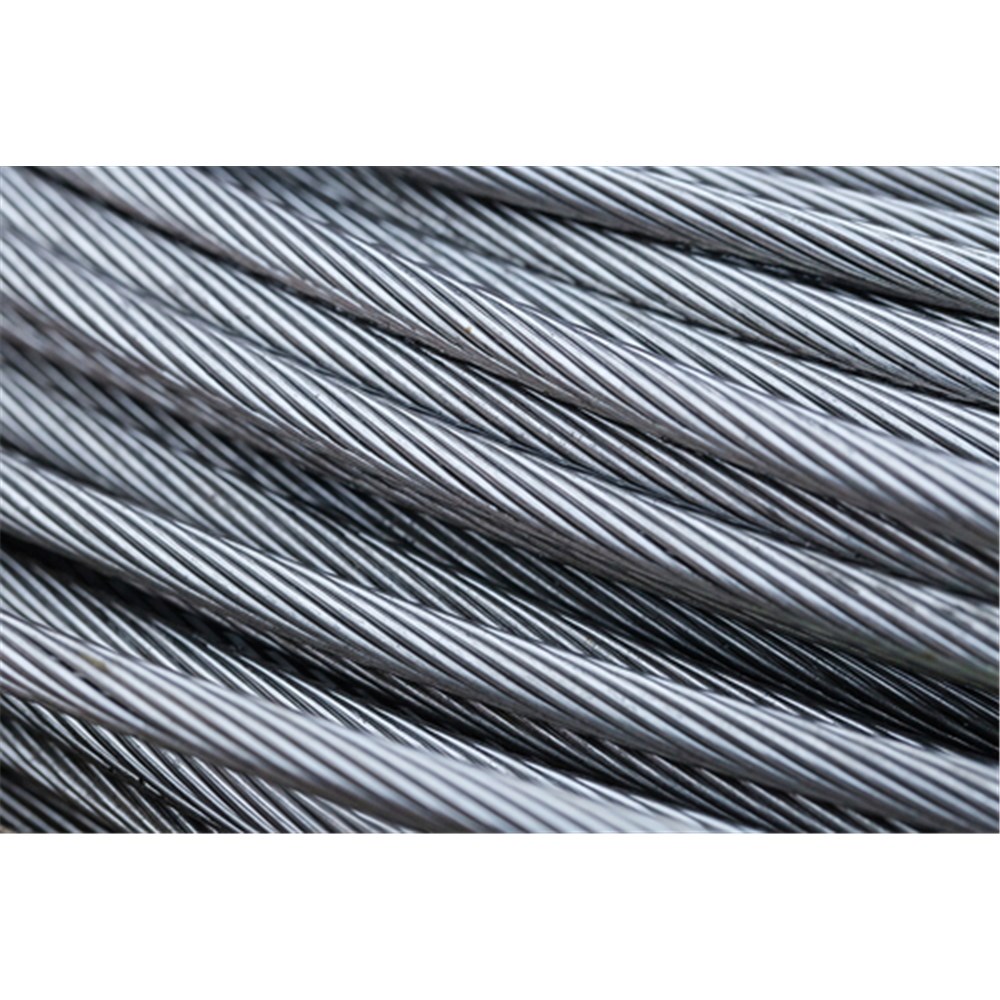

Beaver G1570 7x7 Galvanised Wire Rope 8mm
716308per Each
$2.21 Trade inc GST$2.46 without a trade accountTrade accounts save 10% — apply with your ABN
| Lay | RHOL |
| MBF | 36.1kN |
| Core | Wire |
| Grade | 1570 |
| Finish | Galvanised |
| Approx Mass | 24.6kg/100m |
| Construction | 7x7 |
| Wire Diameter | 8mm |
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 716301 | 1.6mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 1.73kN | 1.26kg/100m |
| 716302 | 2mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 2.3kN | 1.5kg/100m |
| 716302A | 2.5mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 3.61kN | 2.6kg/100m |
| 716303 | 3mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 5.1kN | 3.5kg/100m |
| 716304 | 4mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 9kN | 6.1kg/100m |
| 716305 | 5mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 14.1kN | 9.6kg/100m |
| 716306 | 6mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 20.3kN | 13.8kg/100m |
| 716308 | 8mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 36.1kN | 24.6kg/100m |
| 716310 | 10mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 56.2kN | 38.4kg/100m |
