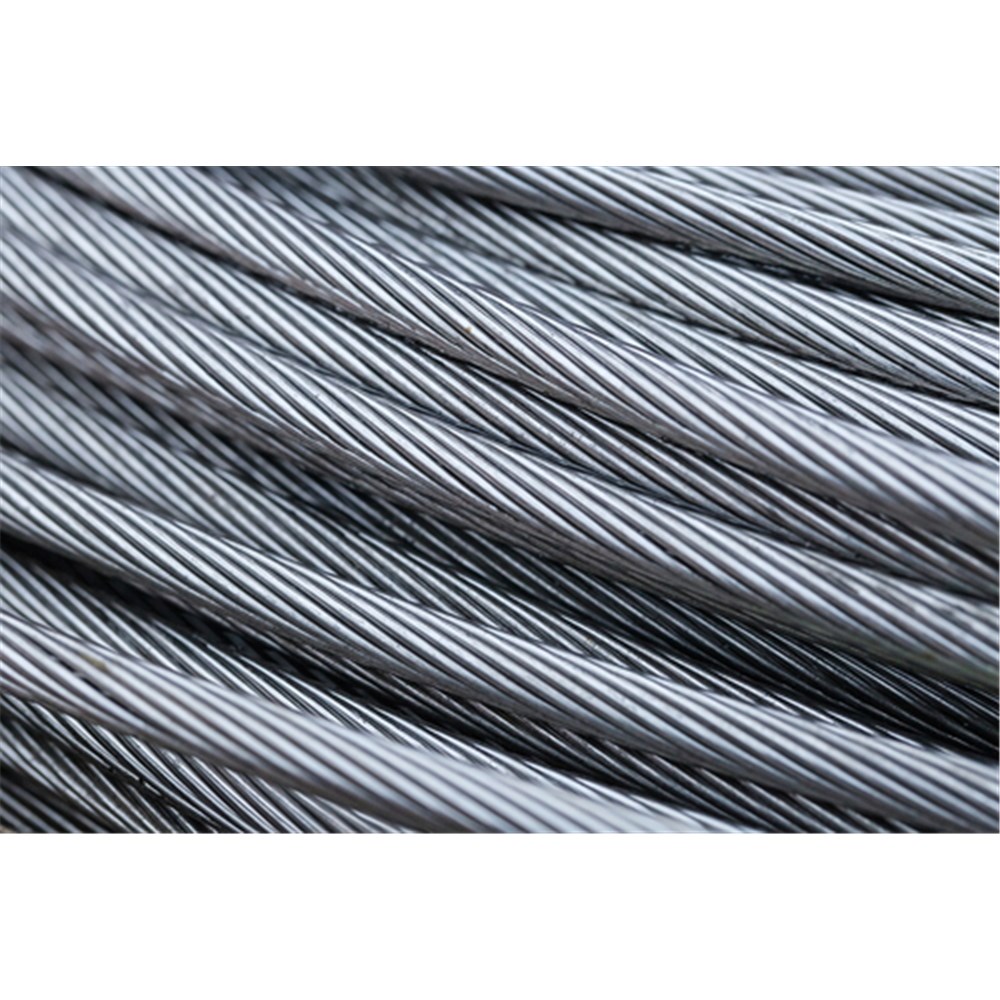

Beaver G1570 7x7 Galvanised Wire Rope 6mm
716306per Each
$1.34 inc GSTTrade $1.21, save $0.13Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 20.3kN |
| Core | Wire |
| Grade | 1570 |
| Finish | Galvanised |
| Approx Mass | 13.8kg/100m |
| Construction | 7x7 |
| Wire Diameter | 6mm |
About this product
Beaver G1570 7x7 Galvanised Wire Rope in 6mm is a semi-flexible galvanised rope for balustrade runs, fencing, guy lines and general tie-off work where you want a rope that holds its shape. The 7x7 construction with a wire core gives it more stiffness than a 7x19, so it tracks straight and handles well through fittings. Minimum breaking force is 20.3kN.
Grade 1570 wire and a galvanised finish help it stand up to weather and outdoor exposure, and it comes dry lubricated so it stays cleaner to handle. At roughly 13.8kg per 100m, the 6mm size is light enough to run out by hand but still the heaviest end of the thin-rope sizes. Right hand ordinary lay. Check the rope for broken wires and crushing before each use.
Common questions
- what is the breaking strain of 6mm 7x7 galvanised wire rope
- The Beaver G1570 6mm has a minimum breaking force of 20.3kN. That is a breaking figure, not a working load limit, so apply the design factor for your application.
- is 7x7 wire rope flexible enough for balustrade
- Yes, 7x7 is the usual pick for balustrade and fencing. It is stiffer than 7x19 because of the wire core, which helps it run straight between posts and through fittings.
- will galvanised wire rope rust outdoors
- The galvanised finish gives it good resistance to weather and outdoor exposure. It is also dry lubricated, so it handles cleaner than an oiled rope.
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 716301 | 1.6mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 1.73kN | 1.26kg/100m |
| 716302 | 2mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 2.3kN | 1.5kg/100m |
| 716302A | 2.5mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 3.61kN | 2.6kg/100m |
| 716303 | 3mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 5.1kN | 3.5kg/100m |
| 716304 | 4mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 9kN | 6.1kg/100m |
| 716305 | 5mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 14.1kN | 9.6kg/100m |
| 716306 | 6mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 20.3kN | 13.8kg/100m |
| 716308 | 8mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 36.1kN | 24.6kg/100m |
| 716310 | 10mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 56.2kN | 38.4kg/100m |
Questions about this equipment? Send us a message and we’ll check it against the job.
