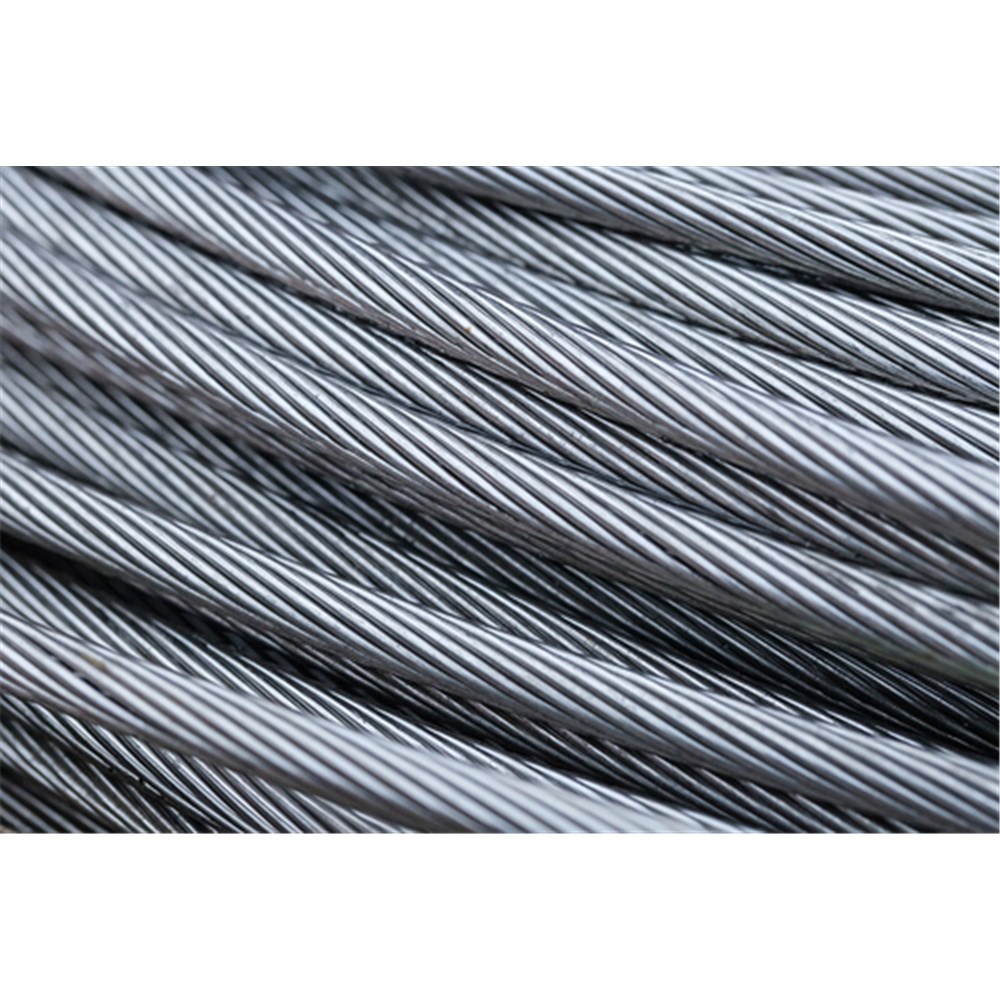

Beaver G1570 7x7 Galvanised Wire Rope 5mm
716305per Each
$0.94 inc GSTTrade $0.85, save $0.09Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 14.1kN |
| Core | Wire |
| Grade | 1570 |
| Finish | Galvanised |
| Approx Mass | 9.6kg/100m |
| Construction | 7x7 |
| Wire Diameter | 5mm |
About this product
Beaver G1570 7x7 Galvanised Wire Rope in 5mm is a semi-flexible galvanised rope suited to guying, fencing, balustrade runs and general tie-back work. The 7x7 construction gives you 49 wires over a wire core, so it holds its shape better than a fibre-cored rope while still bending around a thimble or turnbuckle. Minimum breaking force is 14.1kN.
At 5mm it sits in the middle of the range, thin enough to terminate with small swage sleeves yet strong enough for light structural jobs. Grade 1570 wire, right hand ordinary lay, dry lubricated and galvanised for outdoor exposure. Approximate mass is 9.6kg per 100m, which keeps handling easy on site. Match your fittings to the 5mm diameter and remember the MBF is a breaking figure, not a working load.
Common questions
- what is the breaking strain of 5mm 7x7 wire rope
- The 5mm Beaver G1570 7x7 has a minimum breaking force of 14.1kN. That is a breaking figure, so apply your own design factor to work out a safe working load.
- is 7x7 galvanised wire rope any good for outdoor use
- Yes, the galvanised finish and dry lubrication suit outdoor exposure such as guy wires, fencing and balustrades.
- how much does 5mm wire rope weigh
- Approximately 9.6kg per 100m for the 5mm size.
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 716301 | 1.6mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 1.73kN | 1.26kg/100m |
| 716302 | 2mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 2.3kN | 1.5kg/100m |
| 716302A | 2.5mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 3.61kN | 2.6kg/100m |
| 716303 | 3mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 5.1kN | 3.5kg/100m |
| 716304 | 4mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 9kN | 6.1kg/100m |
| 716305 | 5mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 14.1kN | 9.6kg/100m |
| 716306 | 6mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 20.3kN | 13.8kg/100m |
| 716308 | 8mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 36.1kN | 24.6kg/100m |
| 716310 | 10mm | 7x7 | 1570 | Galvanised | Wire | RHOL | 56.2kN | 38.4kg/100m |
