Beaver G1770 Galvanised Wire Rope - 6x36 18mm
713418per Each
$10.86 inc GSTTrade $9.77, save $1.09Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 204kN |
| Core | Wire |
| Grade | 1770 |
| Finish | Galvanised |
| Approx Mass | 135kg/100m |

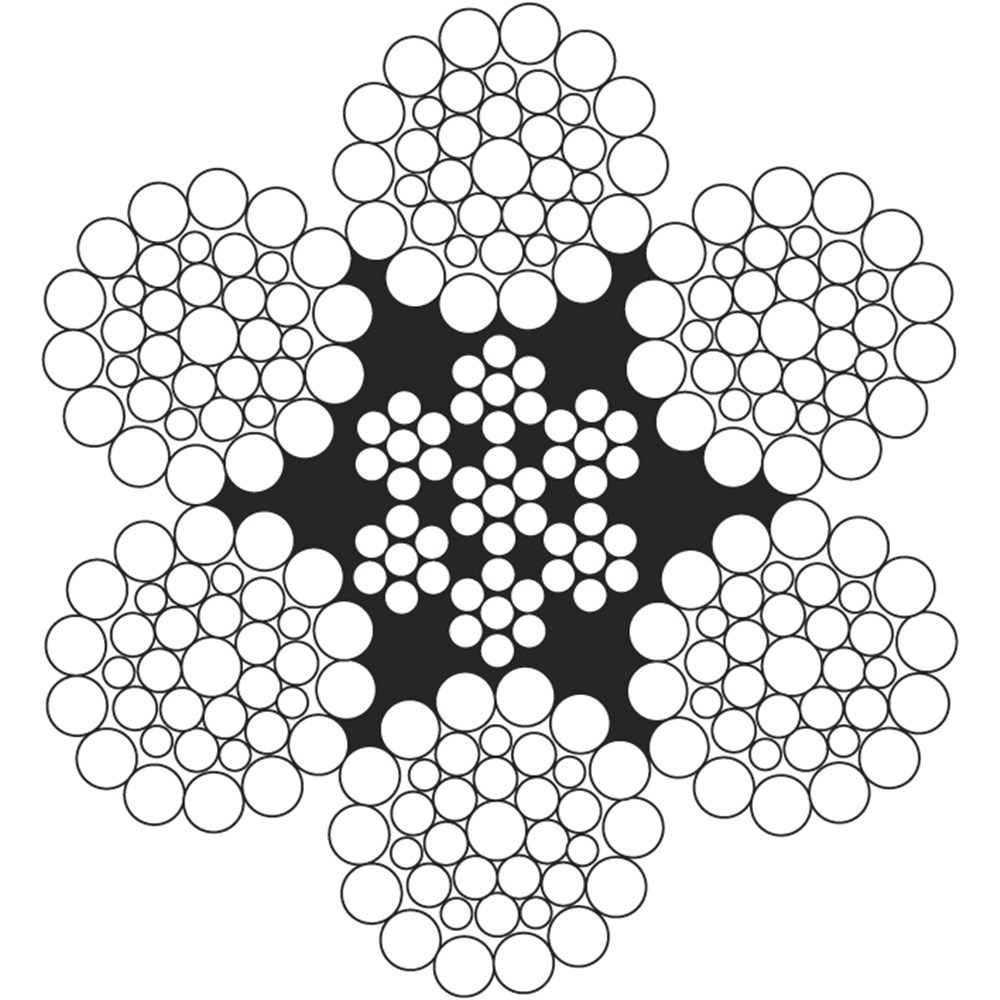

| Construction | 6x36 |
| Wire Diameter | 18mm |
About this product
The Beaver G1770 Galvanised Wire Rope in 18mm is a 6x36 construction rope with an independent wire rope core, built for crane and winch work where you need strength without giving up flexibility. The 18mm diameter sits in the mid to heavy end of the range, with a minimum breaking force of 204kN and an approximate mass of 135kg/100m, so it handles bigger loads than the smaller sizes while still bending nicely over sheaves and drums.
Grade 1770 wire and a galvanised finish give it decent resistance to weather and moisture, which matters on outdoor sites and around coastal or wash-down areas. Lay is right hand ordinary, the standard choice for most drum and sheave setups. The 6x36 construction means plenty of fine outer wires, so the rope stays workable in the hand and spools cleanly. Keep it lubricated and check for broken wires, kinks and corrosion before each use.
Common questions
- what is the breaking strength of 18mm 6x36 wire rope
- This 18mm Beaver G1770 rope has a minimum breaking force of 204kN. That is a breaking figure, not a working load limit, so apply your design factor.
- is beaver galvanised wire rope suitable for outdoor use
- Yes. The galvanised finish helps it resist moisture and corrosion, which suits outdoor sites and damp environments, though it still needs regular lubrication and inspection.
- what does 6x36 IWRC mean on wire rope
- 6x36 means six strands of 36 wires each, giving a flexible rope that runs well over sheaves. The independent wire rope core adds strength and holds the rope's shape under load.
- how much does 18mm wire rope weigh
- Approximately 135kg per 100m for this 18mm size, which is worth checking when you are working out drum capacity and handling.
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 713410 | 10mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 63kN | 41.8kg/100m |
| 713412 | 12mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 90kN | 60.2kg/100m |
| 713413 | 13mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 107kN | 70.7kg/100m |
| 713416 | 16mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 161kN | 107kg/100m |
| 713418 | 18mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 204kN | 135kg/100m |
| 713422 | 22mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 304kN | 202kg/100m |
