Beaver G1770 Galvanised Wire Rope - 6x36 16mm
713416per Each
$13.88 inc GSTTrade $12.49, save $1.39Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 161kN |
| Core | Wire |
| Grade | 1770 |
| Finish | Galvanised |
| Approx Mass | 107kg/100m |

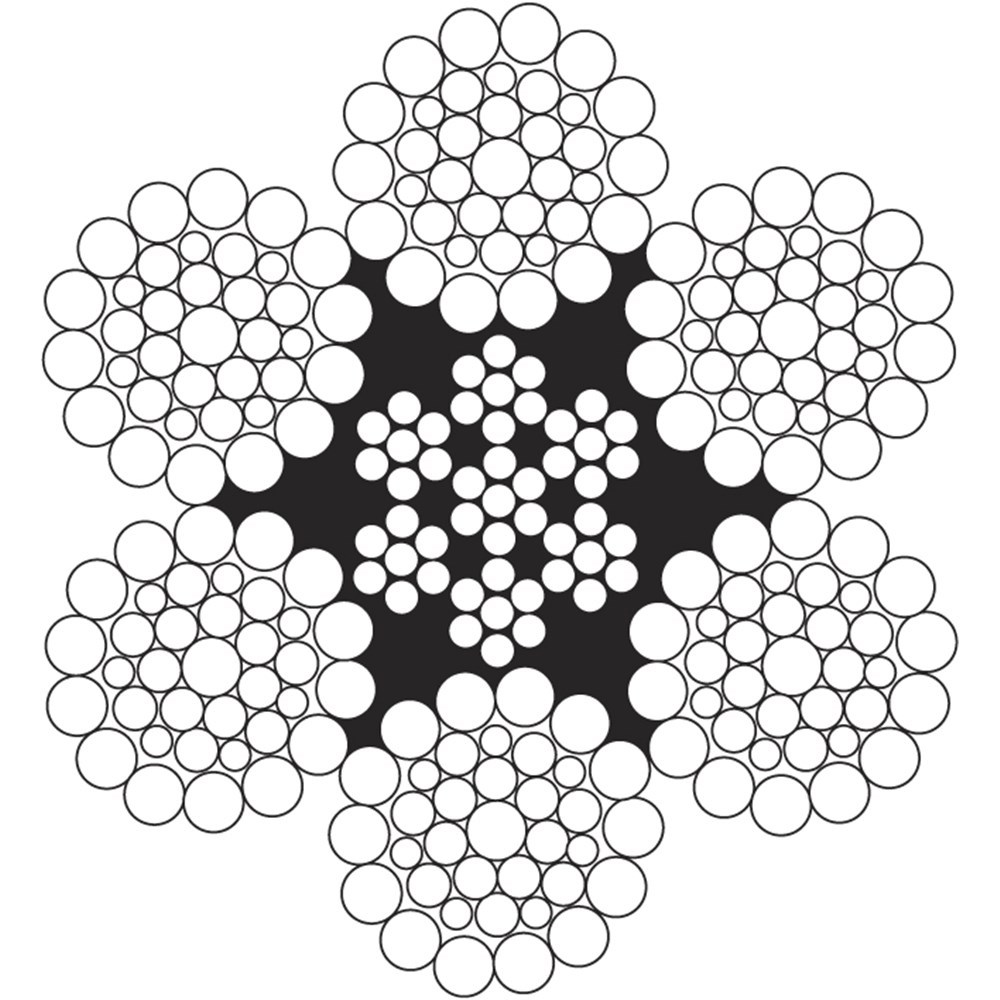

| Construction | 6x36 |
| Wire Diameter | 16mm |
About this product
The Beaver G1770 Galvanised Wire Rope in 16mm is a 6x36 construction rope with an independent wire rope core, built for general lifting and rigging work where you need flexibility without giving up strength. The 16mm diameter carries a minimum breaking force of 161kN, which puts it in the middle of the range and makes it a common pick for winch lines, slings and crane applications.
Grade 1770 wire gives the rope its strength, and the galvanised finish helps it stand up to moisture on outdoor sites and coastal jobs. Lay is right hand ordinary, so it handles and spools predictably. Approximate mass is 107kg per 100m, worth knowing when you are working out drum capacity or handling. The 6x36 construction means plenty of wires per strand, so the rope stays flexible over sheaves and through blocks.
Common questions
- what is the breaking strain of 16mm 6x36 wire rope
- This 16mm Beaver G1770 rope has a minimum breaking force of 161kN. Apply your own design factor to work out a safe working load for the application.
- is beaver galvanised wire rope ok for outdoor use
- Yes, the galvanised finish gives the wire added protection against moisture, so it suits outdoor and coastal work. Keep it clean and lubricated to get the most life out of it.
- what does 6x36 mean on wire rope
- It means six strands with 36 wires in each strand, so more wires of smaller diameter. That gives you a more flexible rope than a 6x19 style, which helps when it is running over sheaves and through blocks.
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 713410 | 10mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 63kN | 41.8kg/100m |
| 713412 | 12mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 90kN | 60.2kg/100m |
| 713413 | 13mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 107kN | 70.7kg/100m |
| 713416 | 16mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 161kN | 107kg/100m |
| 713418 | 18mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 204kN | 135kg/100m |
| 713422 | 22mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 304kN | 202kg/100m |
