Beaver G1770 Galvanised Wire Rope - 6x36 13mm
713413per Each
$6.15 Trade inc GST$6.83 without a trade accountTrade accounts save 10% — apply with your ABN
| Lay | RHOL |
| MBF | 107kN |
| Core | Wire |
| Grade | 1770 |
| Finish | Galvanised |
| Approx Mass | 70.7kg/100m |

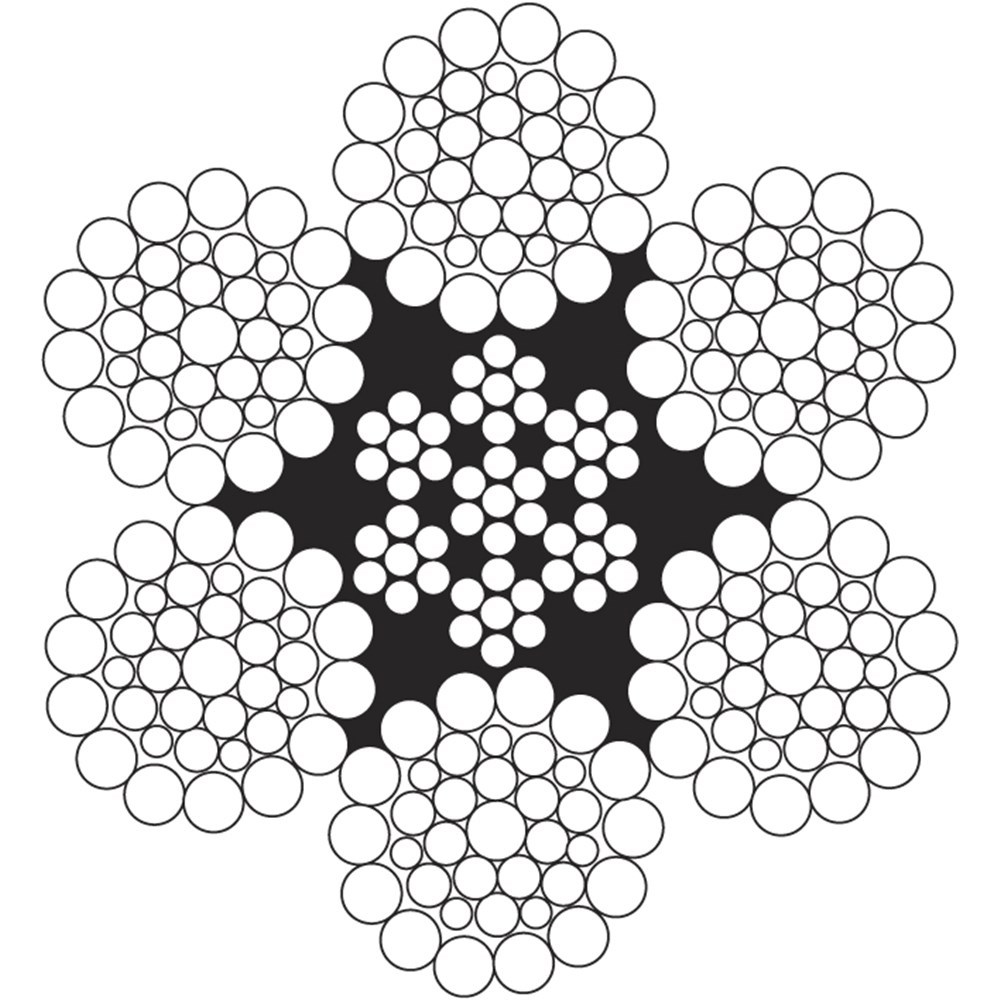

| Construction | 6x36 |
| Wire Diameter | 13mm |
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 713410 | 10mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 63kN | 41.8kg/100m |
| 713412 | 12mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 90kN | 60.2kg/100m |
| 713413 | 13mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 107kN | 70.7kg/100m |
| 713416 | 16mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 161kN | 107kg/100m |
| 713418 | 18mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 204kN | 135kg/100m |
| 713422 | 22mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 304kN | 202kg/100m |
