Beaver G1770 Galvanised Wire Rope - 6x36 12mm
713412per Each
$7.75 inc GSTTrade $6.98, save $0.77Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 90kN |
| Core | Wire |
| Grade | 1770 |
| Finish | Galvanised |
| Approx Mass | 60.2kg/100m |
| Construction | 6x36 |
| Wire Diameter | 12mm |
About this product

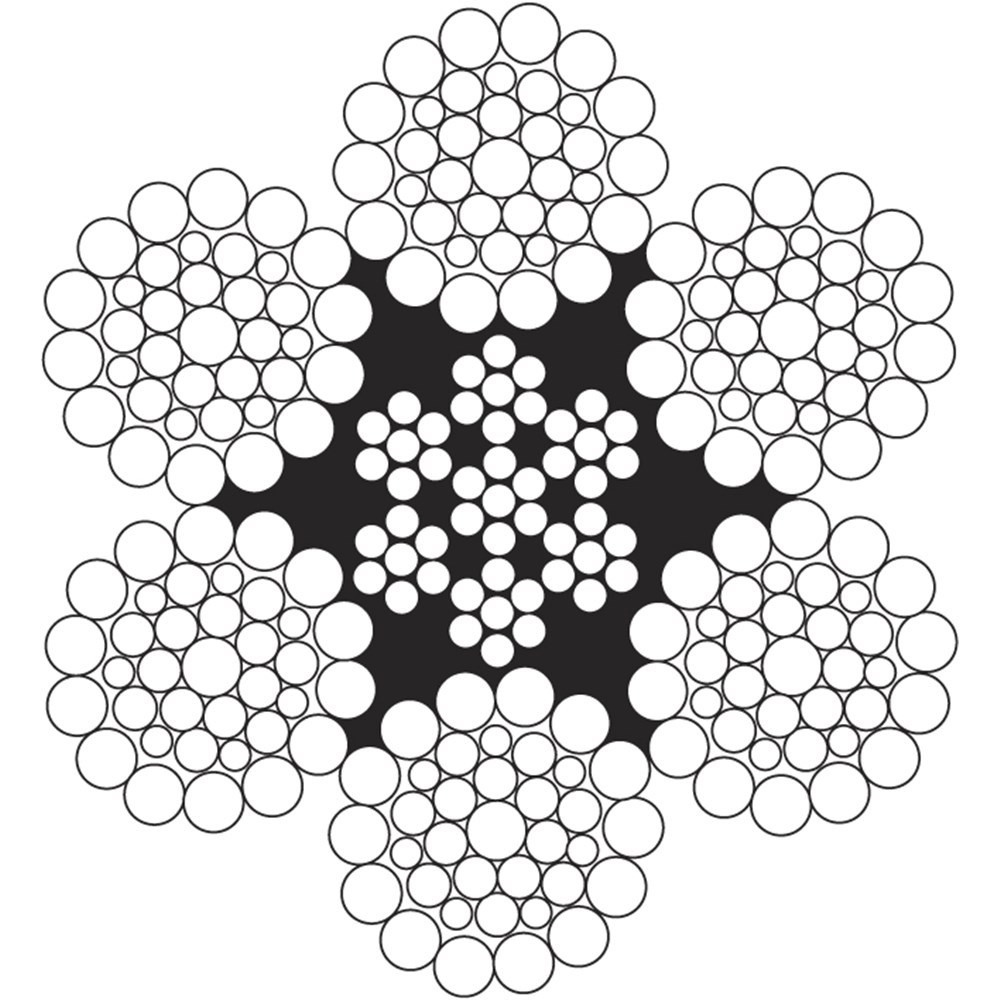

The Beaver G1770 Galvanised Wire Rope 6x36 in 12mm is a flexible general lifting and winching rope for crane crews, workshops and mine site plant. The 6x36 construction packs in plenty of outer wires, so it bends around sheaves and drums without fighting you, and the independent wire rope core holds its shape under load better than a fibre core.
At 12mm it sits in the middle of the range, with a minimum breaking force of 90kN and an approximate mass of 60.2kg per 100m, so it is light enough to handle by hand on site. Grade 1770 wire, right hand ordinary lay, galvanised finish for corrosion resistance in wet and coastal work. Check for broken wires, kinks and crushing before every use.
Common questions
- What is the breaking strain of 12mm 6x36 wire rope?
- This 12mm Beaver G1770 rope has a minimum breaking force of 90kN. Apply your own design factor to work out a safe working load for the application.
- Is galvanised wire rope good for outdoor or marine use?
- The galvanised finish gives it corrosion resistance, which suits wet, outdoor and coastal work better than a bright ungalvanised rope.
- What is the difference between a wire core and a fibre core rope?
- This rope has an independent wire rope core, which holds its shape and resists crushing under load better than a fibre core.
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 713410 | 10mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 63kN | 41.8kg/100m |
| 713412 | 12mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 90kN | 60.2kg/100m |
| 713413 | 13mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 107kN | 70.7kg/100m |
| 713416 | 16mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 161kN | 107kg/100m |
| 713418 | 18mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 204kN | 135kg/100m |
| 713422 | 22mm | 6x36 | 1770 | Galvanised | Wire | RHOL | 304kN | 202kg/100m |
Questions about this equipment? Send us a message and we’ll check it against the job.
