Beaver G2070 Galvanised Wire Rope - 7x19 10mm
712410per Each
$3.20 inc GSTTrade $2.88, save $0.32Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 64.4kN |
| Core | Wire |
| Grade | 2070 |
| Finish | Galvanised |
| Approx Mass | 46.1kg/100m |
| Construction | 7x19 |
| Wire Diameter | 10mm |
About this product

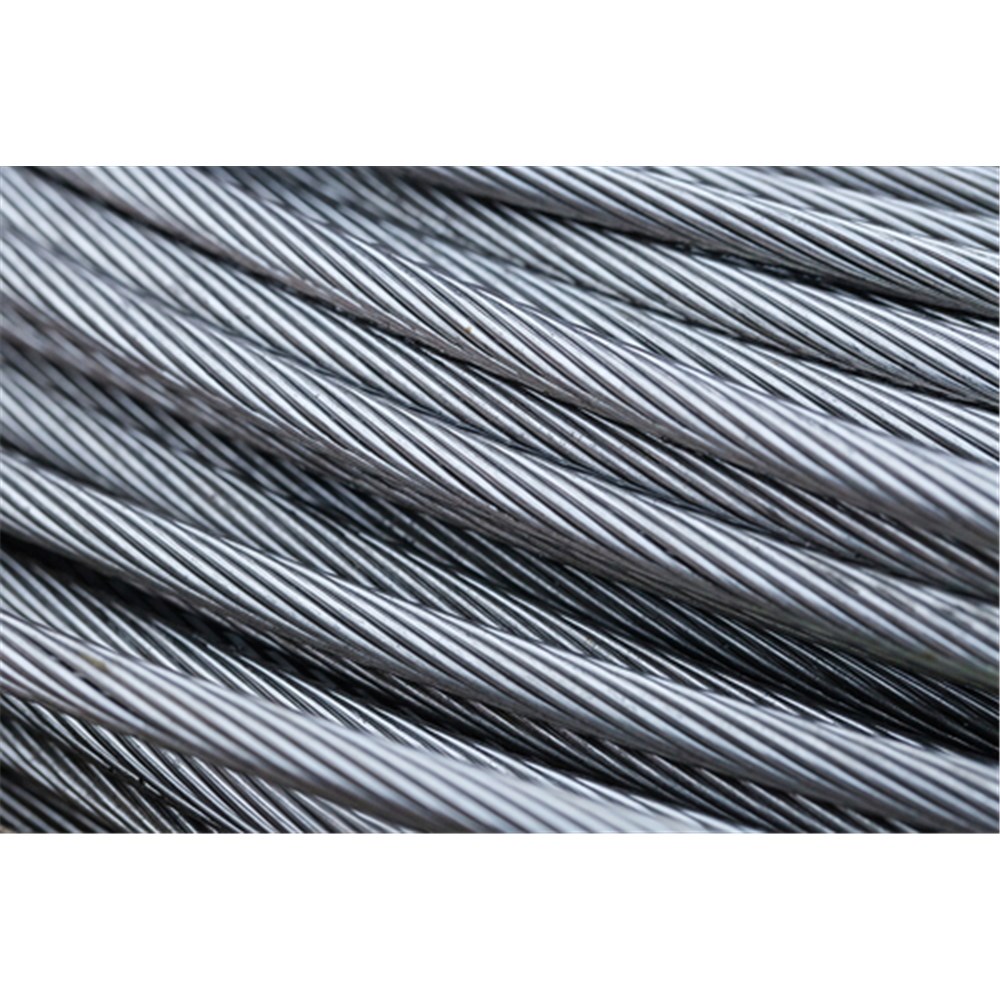

The Beaver G2070 Galvanised Wire Rope in 7x19 construction, 10mm diameter, is a flexible general purpose rope for winching, guying and running gear. At 10mm it sits in the middle of the range, giving you a minimum breaking force of 64.4kN without the stiffness of the heavier sizes. The 7x19 layup with a wire core keeps it supple enough to spool neatly while holding its shape under load.
Grade 2070 wire, right hand ordinary lay, galvanised finish and a dry lube for handling and corrosion resistance. Approximate mass is 46.1kg per 100m, so it stays manageable on site. It suits winch drums, sheaved systems and outdoor work where the rope cops weather. Cut ends should be seized or swaged before use, and the rope inspected for broken wires, kinks and flattening.
Common questions
- what is the breaking strain of 10mm 7x19 wire rope
- This Beaver G2070 10mm rope has a minimum breaking force of 64.4kN. Any working load limit depends on the design factor applied to the application.
- is beaver galvanised wire rope suitable for outdoor use
- Yes, it has a galvanised finish plus a dry lube, which helps it stand up to weather and damp conditions.
- 7x19 or 7x7 wire rope, which is more flexible
- 7x19 has more wires per strand, so it is the more flexible option and better suited to winch drums and sheaved systems than a 7x7.
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 712403 | 3.2mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 7.1kN | 4.4kg/100m |
| 712404 | 4mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 11.2kN | 6.22kg/100m |
| 712405 | 5mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 17.2kN | 8.6kg/100m |
| 712406 | 6mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 25kN | 12.4kg/100m |
| 712408 | 8mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 43.5kN | 24.4kg/100m |
| 712410 | 10mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 64.4kN | 46.1kg/100m |
Questions about this equipment? Send us a message and we’ll check it against the job.
