Beaver G2070 Galvanised Wire Rope - 7x19 6mm
712406per Each
$1.62 inc GSTTrade $1.46, save $0.16Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 25kN |
| Core | Wire |
| Grade | 2070 |
| Finish | Galvanised |
| Approx Mass | 12.4kg/100m |
| Construction | 7x19 |
| Wire Diameter | 6mm |
About this product
The Beaver G2070 Galvanised Wire Rope in 6mm is a flexible 7x19 rope for winching, tie-backs, guys and general rigging work where the rope has to bend and run through sheaves. This is the 6mm size in the range, with a minimum breaking force of 25kN and an approximate mass of 12.4kg/100m, so it stays easy to handle and coil by hand on site.

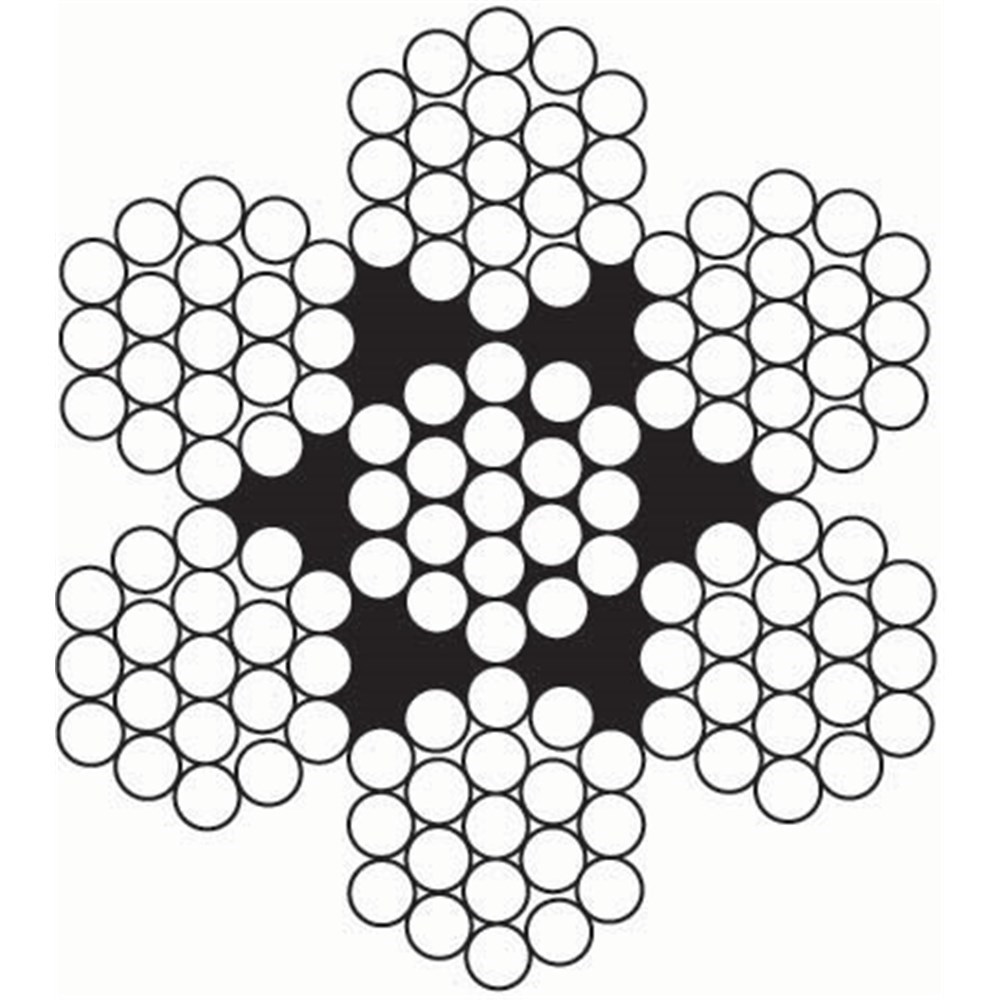

Construction is 7x19 with a wire core and right hand ordinary lay, which gives the rope good flexibility without going soft under load. Grade 2070 wire is galvanised and dry lubed, a useful combination for outdoor and exposed jobs where oily rope would make a mess. If you need more capacity, step up to a larger diameter in the same 7x19 construction and keep the handling characteristics the same.
Common questions
- what is the breaking strain of 6mm 7x19 wire rope
- This 6mm Beaver G2070 rope has a minimum breaking force of 25kN. Apply your own design factor to work out a safe working load for the application.
- is beaver galvanised wire rope suitable for outdoor use
- Yes, the galvanised finish suits exposed and outdoor work. It is also dry lubed, so it will not leave oil on your hands or the load.
- what does 7x19 mean on wire rope
- It means seven strands of nineteen wires each, which makes the rope more flexible than coarser constructions. That flexibility suits winching and running over sheaves.
- how heavy is 6mm wire rope
- Approximate mass is 12.4kg per 100m for this 6mm size, so it is light enough to handle and spool by hand.
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 712403 | 3.2mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 7.1kN | 4.4kg/100m |
| 712404 | 4mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 11.2kN | 6.22kg/100m |
| 712405 | 5mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 17.2kN | 8.6kg/100m |
| 712406 | 6mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 25kN | 12.4kg/100m |
| 712408 | 8mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 43.5kN | 24.4kg/100m |
| 712410 | 10mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 64.4kN | 46.1kg/100m |
