Beaver G2070 Galvanised Wire Rope - 7x19 4mm
712404per Each
$0.80 inc GSTTrade $0.72, save $0.08Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 11.2kN |
| Core | Wire |
| Grade | 2070 |
| Finish | Galvanised |
| Approx Mass | 6.22kg/100m |
| Construction | 7x19 |
| Wire Diameter | 4mm |
About this product

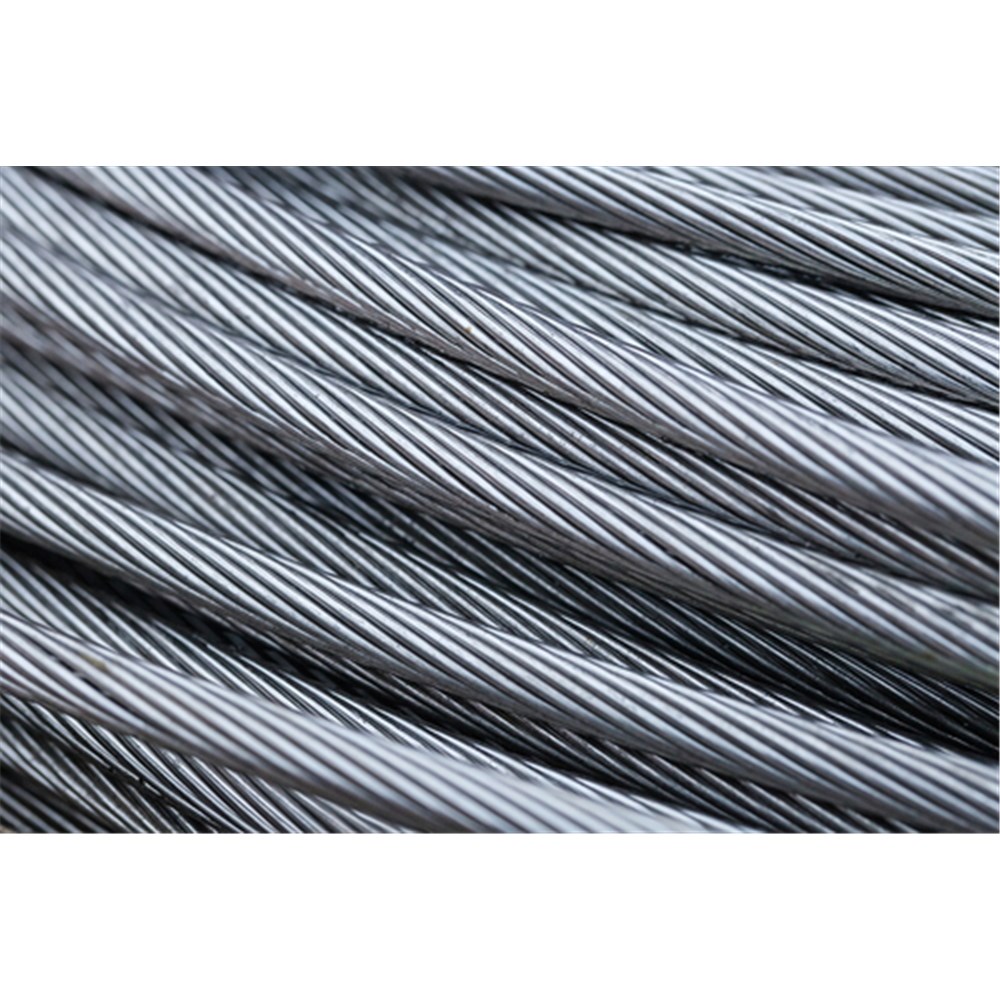

Beaver G2070 Galvanised Wire Rope in 4mm is a flexible 7x19 rope for light lifting rigs, winch lines, fencing and general tie-off work where a thinner rope still needs decent strength. The 7x19 construction puts 19 wires in each of the seven strands, so it bends around sheaves and drums far better than a heavier, coarser rope of the same diameter.
Grade 2070 with a wire core gives a minimum breaking force of 11.2kN, and at roughly 6.22kg per 100m it stays easy to handle and reeve by hand. The lay is right hand ordinary. Galvanising and a dry lube finish help it hold up outdoors without leaving grease on your hands or on the load. Keep an eye out for broken wires, kinks and crushing, and retire the rope when damage shows up.
Common questions
- what is the breaking strain of 4mm 7x19 wire rope
- This Beaver G2070 rope has a minimum breaking force of 11.2kN at 4mm. That is a breaking figure, not a working load limit, so apply the design factor for your application.
- is beaver g2070 wire rope galvanised
- Yes, it has a galvanised finish with a dry lube treatment, which suits outdoor and general site use.
- why choose 7x19 instead of 7x7 wire rope
- 7x19 puts 19 wires in each strand instead of 7, so it is more flexible and runs better over sheaves and winch drums at the same 4mm diameter.
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 712403 | 3.2mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 7.1kN | 4.4kg/100m |
| 712404 | 4mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 11.2kN | 6.22kg/100m |
| 712405 | 5mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 17.2kN | 8.6kg/100m |
| 712406 | 6mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 25kN | 12.4kg/100m |
| 712408 | 8mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 43.5kN | 24.4kg/100m |
| 712410 | 10mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 64.4kN | 46.1kg/100m |
Questions about this equipment? Send us a message and we’ll check it against the job.
