Beaver G2070 Galvanised Wire Rope - 7x19 3.2mm
712403per Each
$0.54 inc GSTTrade $0.49, save $0.05Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 7.1kN |
| Core | Wire |
| Grade | 2070 |
| Finish | Galvanised |
| Approx Mass | 4.4kg/100m |
| Construction | 7x19 |
| Wire Diameter | 3.2mm |
About this product
The Beaver G2070 Galvanised Wire Rope in 3.2mm is a flexible 7x19 rope for light lifting, winching and general rigging work where you need the cable to bend without fighting you. It is the second smallest diameter in the range, so it suits small sheaves, tight sheave grooves and jobs where a heavier rope is overkill. Minimum breaking force is 7.1kN.

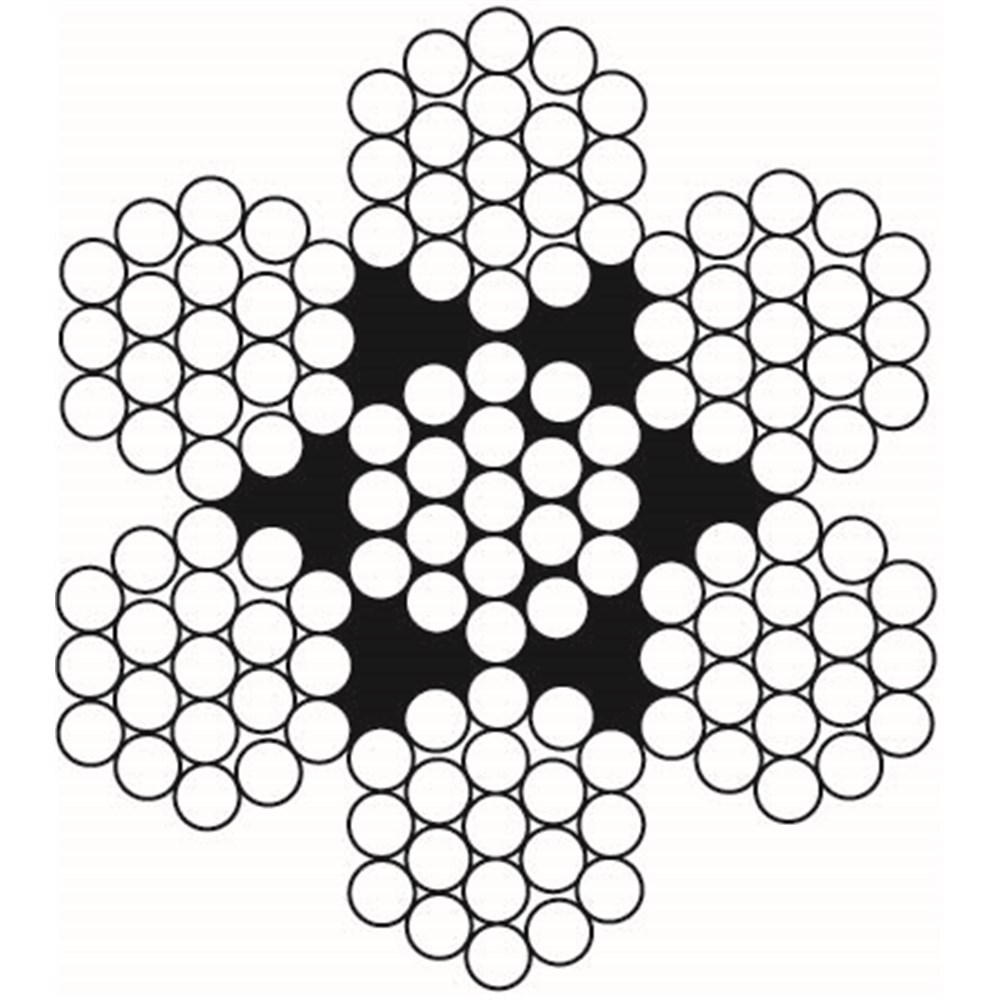

Construction is 7x19 with a wire core and right hand ordinary lay, in grade 2070 wire. The galvanised finish and dry lube help it hold up outdoors and on dusty sites. Approximate mass is 4.4kg per 100m, light enough to run out and terminate by hand. Check for broken wires, kinks and flattening before each use.
Common questions
- What is the breaking strain of 3.2mm 7x19 wire rope?
- The minimum breaking force for this 3.2mm Beaver G2070 rope is 7.1kN. That is a breaking figure, not a working load limit, so apply your own design factor.
- Is Beaver G2070 wire rope galvanised?
- Yes, it has a galvanised finish and comes dry lubed, which helps it cope with outdoor and dusty site conditions.
- Why choose 7x19 over 7x7 wire rope?
- The 7x19 construction used here has more wires per strand, so it bends more easily and runs better over small sheaves than a stiffer construction of the same diameter.
Full specifications
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 712403 | 3.2mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 7.1kN | 4.4kg/100m |
| 712404 | 4mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 11.2kN | 6.22kg/100m |
| 712405 | 5mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 17.2kN | 8.6kg/100m |
| 712406 | 6mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 25kN | 12.4kg/100m |
| 712408 | 8mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 43.5kN | 24.4kg/100m |
| 712410 | 10mm | 7x19 | 2070 | Galvanised | Wire | RHOL | 64.4kN | 46.1kg/100m |
