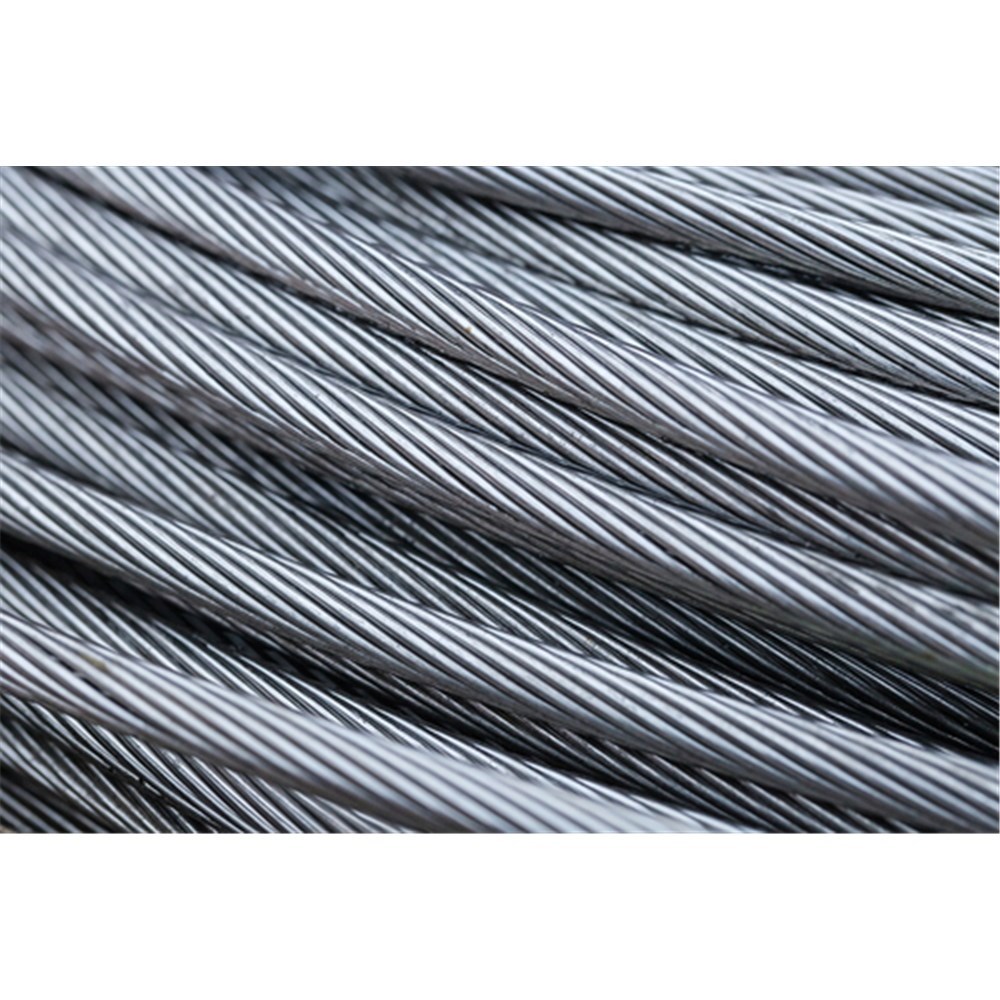

Beaver G1570 A2 Galvanised Wire Rope with a Fibre Core 6x24 10mm
711310per Each
$2.81 inc GSTTrade $2.53, save $0.28Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 44kN |
| Core | Fibre |
| Grade | 1570 |
| Finish | Galvanised |
| Diameter | 10mm |
| Approx Mass | 31.8kg/100m |
| Construction | 6x24 |
| Wire Diameter | 10mm |
About this product
The Beaver G1570 A2 Galvanised Wire Rope with a Fibre Core 6x24 in 10mm is a flexible general purpose rope for winching, hauling and tie-down work where you want a rope that handles easily over sheaves and drums. The 10mm diameter is the middle-weight pick in the range, with a minimum breaking force of 44kN and an approximate mass of 31.8kg per 100m, so it stays manageable by hand while still carrying decent load.
Construction is 6x24 around a fibre core, right hand ordinary lay, in grade 1570 wire with a galvanised finish for corrosion resistance on exposed sites. The fibre core and dry lube keep the rope supple and easy to spool. Check for broken wires, kinks and flattening before each use, and keep terminations clean and in good order.
Common questions
- what is the breaking strain of 10mm 6x24 wire rope
- This 10mm Beaver G1570 rope has a minimum breaking force of 44kN. That figure is a breaking force, not a working load limit, so apply your own design factor.
- is beaver galvanised wire rope ok for outdoor use
- The galvanised finish gives it corrosion resistance for outdoor and exposed site work. Inspect it regularly and keep it clean for best service life.
- fibre core vs steel core wire rope which is better
- A fibre core rope like this 6x24 is more flexible and easier to handle over sheaves and drums, while a steel core is stiffer and better under crushing loads or heat.
Full specifications
| Product code | Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 711308 | 8mm | 6x24 | 1570 | Galvanised | Fibre | RHOL | 28kN | 20.4kg/100m |
| 711309 | 9mm | 6x24 | 1570 | Galvanised | Fibre | RHOL | 35.6kN | 25.8kg/100m |
| 711310 | 10mm | 6x24 | 1570 | Galvanised | Fibre | RHOL | 44kN | 31.8kg/100m |
| 711311 | 11mm | 6x24 | 1570 | Galvanised | Fibre | RHOL | 53kN | 38.5kg/100m |
| 711312 | 12mm | 6x24 | 1570 | Galvanised | Fibre | RHOL | 63kN | 45.8kg/100m |
| 711313 | 13mm | 6x24 | 1570 | Galvanised | Fibre | RHOL | 74kN | 53.8kg/100m |
| 711316 | 16mm | 6x24 | 1570 | Galvanised | Fibre | RHOL | 113kN | 81.5kg/100m |
| 711324 | 24mm | 6x24 | 1570 | Galvanised | Fibre | RHOL | 253kN | 183kg/100m |
