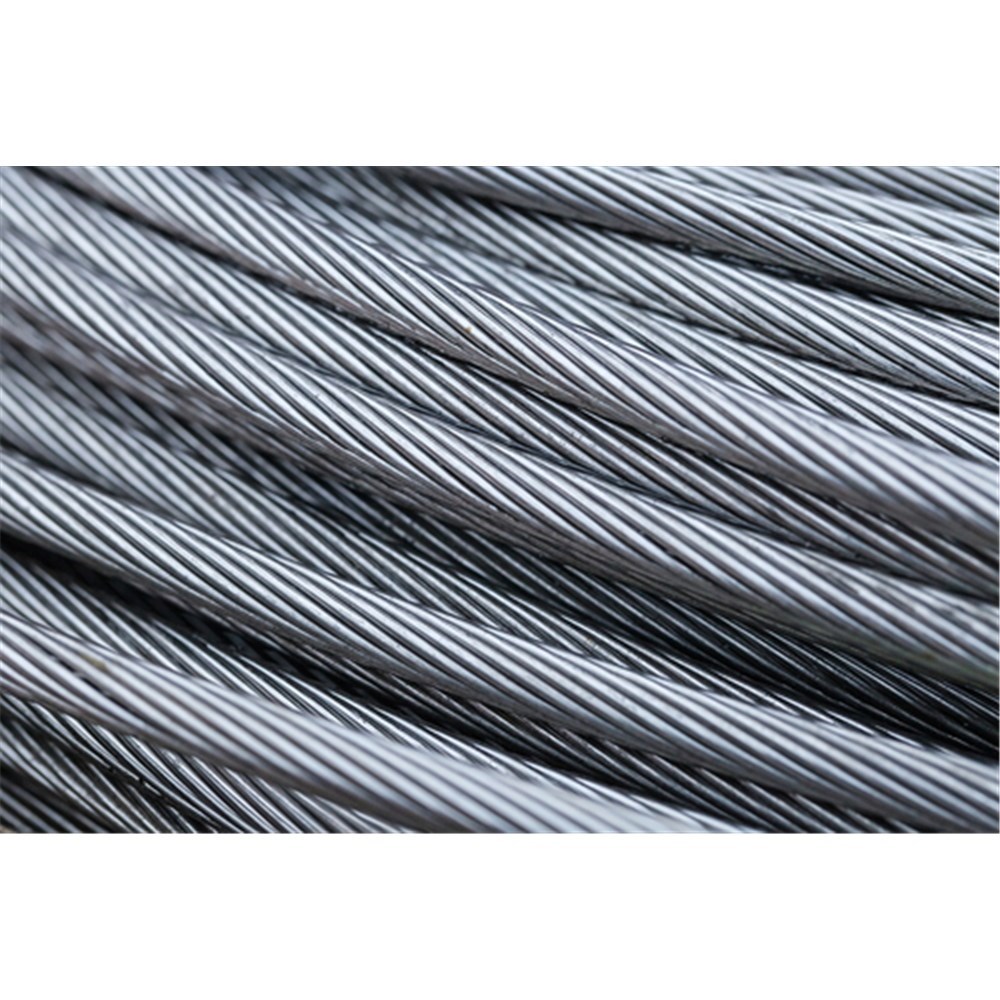

Beaver G1570 Galvanised Wire Rope with a Fibre Core 6x19 10mm x 1000m
709310per Each
$3.00 inc GSTTrade $2.70, save $0.30Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 48.2kN |
| Core | Fibre |
| Grade | 1570 |
| Finish | Galvanised |
| Diameter | 10mm |
| Approx Mass | 35.1kg/100m |
| Construction | 6x19 |
| Wire Diameter | 10mm |
| Metre Per Reel | 1000m |
About this product
The Beaver G1570 Galvanised Wire Rope with a Fibre Core 6x19 in 10mm is a general purpose steel rope for winching, hoist lines and tie-off work where you want a flexible rope that still holds its shape. The 6x19 construction over a dry lubed fibre core gives it good bend tolerance, and at 10mm it hits the middle of the range, strong enough for real load work but still easy to spool and handle by hand.
Grade 1570 wire with a minimum breaking force of 48.2kN, laid right hand ordinary. Mass runs about 35.1kg/100m, so weight stays manageable on longer runs. The galvanised finish slows down surface rust on outdoor and coastal jobs. Keep it lubricated, watch for broken wires and crushing at the drum, and retire it once wear shows.
Common questions
- what is the breaking strength of 10mm 6x19 wire rope
- This 10mm Beaver G1570 rope has a minimum breaking force of 48.2kN. Any working load limit depends on the design factor set for your application.
- is fibre core wire rope better than steel core
- A fibre core rope like this one is more flexible and easier to bend around sheaves, while a steel core offers more crush resistance and less stretch under load.
- how much does 10mm galvanised wire rope weigh
- Approximately 35.1kg per 100m for the 10mm size, so it stays manageable on long runs and hand spooling.
Full specifications
| Product code | Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass | Metre Per Reel |
|---|---|---|---|---|---|---|---|---|---|
| 709303 | 3mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.3kN | 3.2kg/100m | 1000 |
| 709303A | 3.5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 5.8kN | 4.3kg/100m | 1000 |
| 709304 | 4mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.7kN | 5.8kg/100m | 1000 |
| 709305 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8kg/100m | 1000 |
| 709306 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4kg/100m | 1000 |
| 709308 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5kg/100m | 1000 |
| 709309 | 9mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 39kN | 28.4kg/100m | 1000 |
| 709310 | 10mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 48.2kN | 35.1kg/100m | 1000 |
| 709303-100 | 3mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.3kN | 3.2/100m | 100 |
| 709304-100 | 4mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.7kN | 5.8/100m | 100 |
| 709305-50 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8/100m | 50 |
| 709305-100 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8/100m | 100 |
| 709306-50 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 50 |
| 709306-100 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 100 |
| 709306-250 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 250 |
| 709308-50 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5/100m | 50 |
| 709308-100 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5/100m | 100 |
