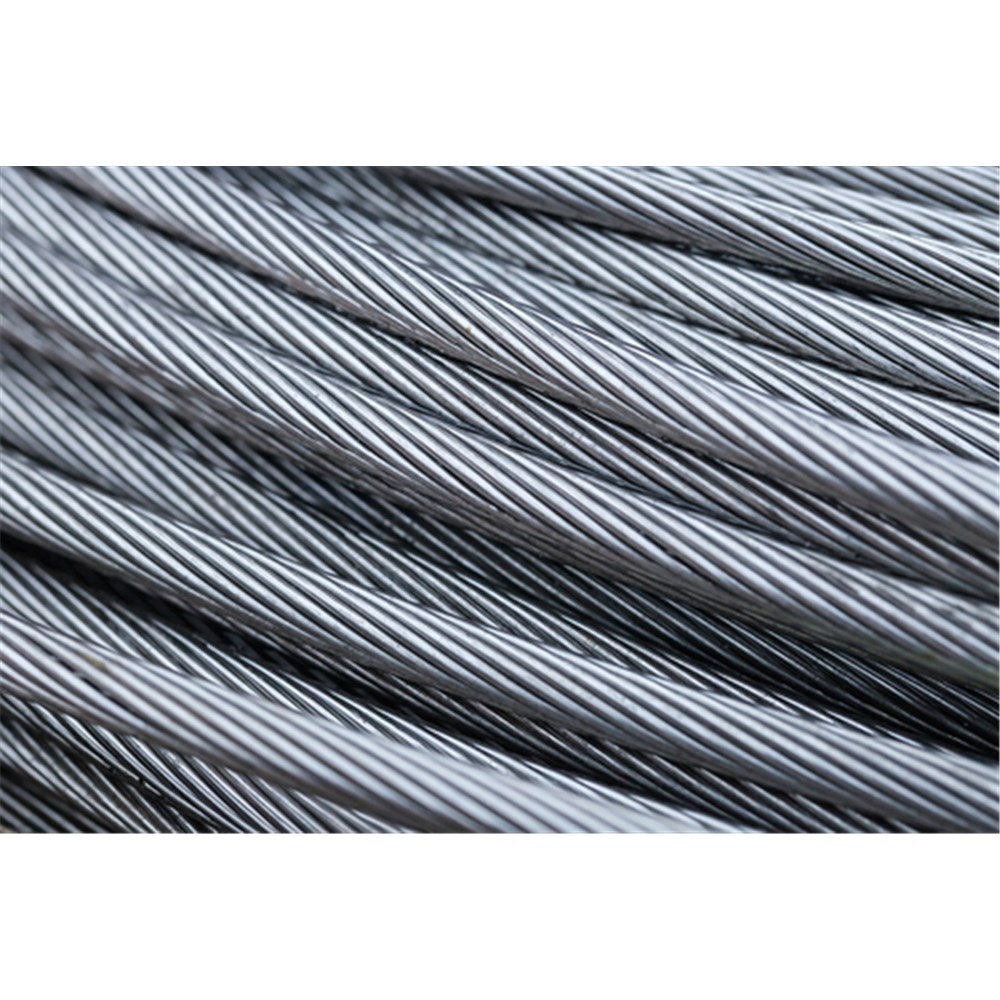

Beaver G1570 Galvanised Wire Rope with a Fibre Core 6x19 5mm x 50m
709305-50per Each
$1.22 inc GSTTrade $1.10, save $0.12Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 12kN |
| Core | Fibre |
| Grade | 1570 |
| Finish | Galvanised |
| Diameter | 5mm |
| Approx Mass | 8.8/100m |
| Construction | 6x19 |
| Wire Diameter | 5mm |
| Metre Per Reel | 50m |
About this product
The Beaver G1570 Galvanised Wire Rope with a Fibre Core 6x19 in 5mm is the light end of the range, a thin and flexible rope for winches, fencing strainers, guy lines and general tie-down work where a heavier diameter would be awkward to handle. Minimum breaking force is 12kN. The 6x19 construction and dry lubed fibre core keep it supple over sheaves and drums, and the galvanised finish slows down surface rust in damp or outdoor conditions.
Lay is right hand ordinary, grade 1570, with a 50m length to work from. Approximate mass is 8.8 per 100m, so at 5mm it is easy to run out by hand and easy to coil back up. Keep it off wet ground, watch for broken wires and kinks at the terminations, and it will keep doing the job.
Common questions
- what is the breaking strain of 5mm galvanised wire rope
- This 5mm Beaver G1570 rope has a minimum breaking force of 12kN. That is a breaking figure, not a working load limit, so apply the design factor for your application.
- is fibre core wire rope more flexible than steel core
- Yes. The fibre core in this 6x19 rope gives more give and easier handling than a steel cored rope, which suits winch drums and sheaves rather than heavy hoisting duty.
- does galvanised wire rope rust
- The galvanised finish gives good resistance to surface corrosion outdoors, but it is not stainless. Store it dry, keep it lubricated and inspect for rust at the ends and any crush points.
Full specifications
| Product code | Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass | Metre Per Reel |
|---|---|---|---|---|---|---|---|---|---|
| 709303 | 3mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.3kN | 3.2kg/100m | 1000 |
| 709303A | 3.5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 5.8kN | 4.3kg/100m | 1000 |
| 709304 | 4mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.7kN | 5.8kg/100m | 1000 |
| 709305 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8kg/100m | 1000 |
| 709306 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4kg/100m | 1000 |
| 709308 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5kg/100m | 1000 |
| 709309 | 9mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 39kN | 28.4kg/100m | 1000 |
| 709310 | 10mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 48.2kN | 35.1kg/100m | 1000 |
| 709303-100 | 3mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.3kN | 3.2/100m | 100 |
| 709304-100 | 4mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.7kN | 5.8/100m | 100 |
| 709305-50 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8/100m | 50 |
| 709305-100 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8/100m | 100 |
| 709306-50 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 50 |
| 709306-100 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 100 |
| 709306-250 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 250 |
| 709308-50 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5/100m | 50 |
| 709308-100 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5/100m | 100 |
Questions about this equipment? Send us a message and we’ll check it against the job.
