| Lay | RHOL |
| MBF | 12kN |
| Core | Fibre |
| Grade | 1570 |
| Finish | Galvanised |
| Diameter | 5mm |
| Approx Mass | 8.8/100m |
| Construction | 6x19 |
| Wire Diameter | 5mm |
| Metre Per Reel | 100m |

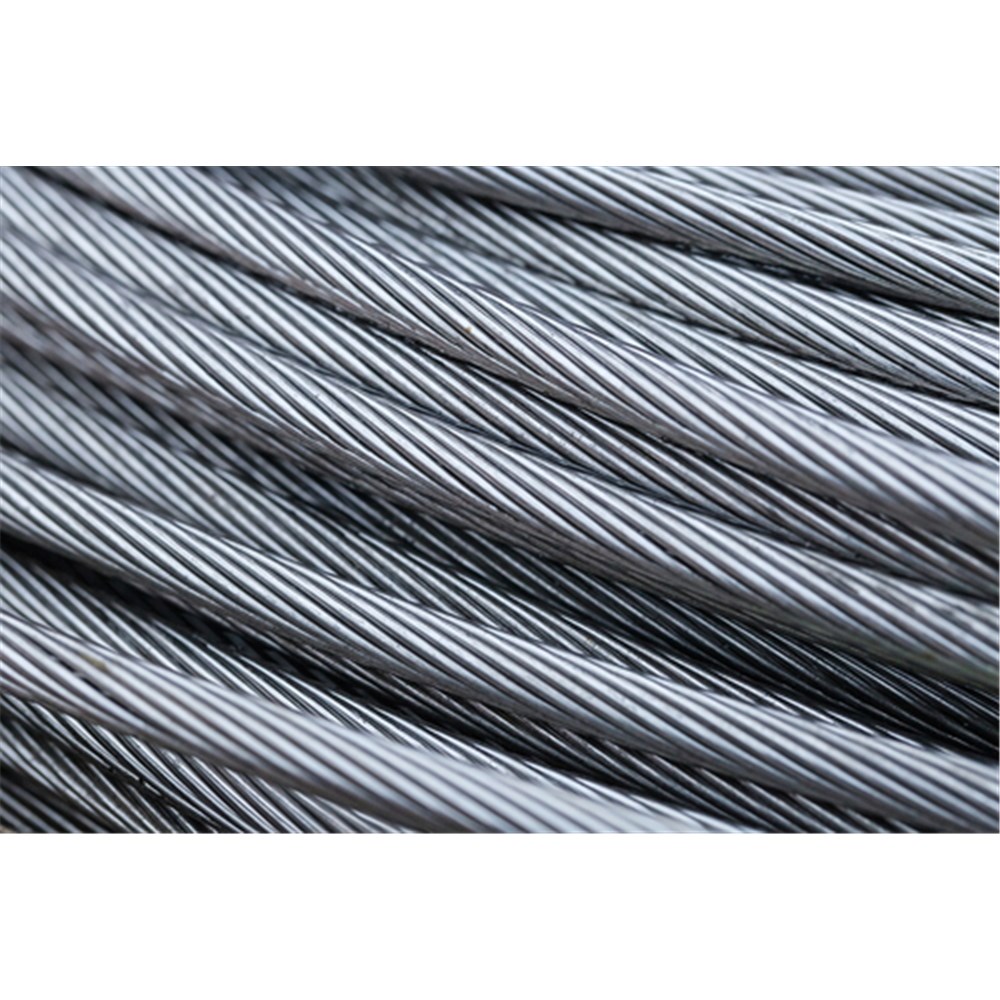

The Beaver G1570 Galvanised Wire Rope with a Fibre Core 6x19 in 5mm is the light end of the range, suited to winch work, guy lines, fencing strainers and general utility rigging where you want a flexible rope that still holds its shape. Minimum breaking force is 12kN. The 6x19 construction with a fibre core gives you good flexibility for spooling and reeving, and the dry lube helps the strands move against each other without leaving your gloves soaked.
Grade 1570 wire with a galvanised finish handles outdoor exposure better than bright rope, which matters on yard gear and site equipment that lives in the weather. Lay is right hand ordinary. Approximate mass works out at 8.8 per 100m, so a 100m length is easy enough for one person to shift and run out. Step up to a larger diameter in the same range if you need more breaking force.
| Product code | Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass | Metre Per Reel |
|---|---|---|---|---|---|---|---|---|---|
| 709303 | 3mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.3kN | 3.2kg/100m | 1000 |
| 709303A | 3.5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 5.8kN | 4.3kg/100m | 1000 |
| 709304 | 4mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.7kN | 5.8kg/100m | 1000 |
| 709305 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8kg/100m | 1000 |
| 709306 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4kg/100m | 1000 |
| 709308 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5kg/100m | 1000 |
| 709309 | 9mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 39kN | 28.4kg/100m | 1000 |
| 709310 | 10mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 48.2kN | 35.1kg/100m | 1000 |
| 709303-100 | 3mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.3kN | 3.2/100m | 100 |
| 709304-100 | 4mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.7kN | 5.8/100m | 100 |
| 709305-50 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8/100m | 50 |
| 709305-100 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8/100m | 100 |
| 709306-50 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 50 |
| 709306-100 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 100 |
| 709306-250 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 250 |
| 709308-50 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5/100m | 50 |
| 709308-100 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5/100m | 100 |
