| Lay | RHOL |
| MBF | 7.7kN |
| Core | Fibre |
| Grade | 1570 |
| Finish | Galvanised |
| Diameter | 4mm |
| Approx Mass | 5.8/100m |
| Construction | 6x19 |
| Wire Diameter | 4mm |
| Metre Per Reel | 100m |

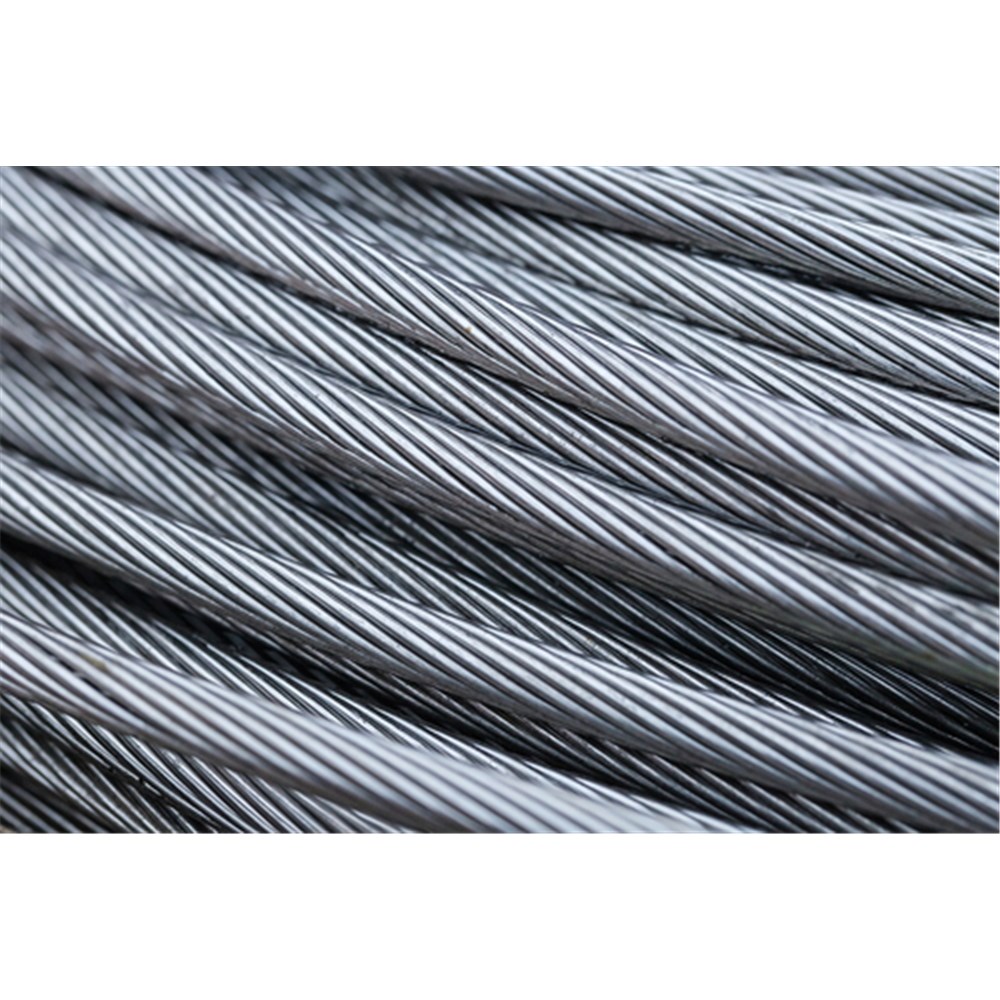

The Beaver G1570 Galvanised Wire Rope with a Fibre Core 6x19 in 4mm is a light, flexible rope for winch lines, guy wires, fencing strainers and general tie-off work where a thin diameter is the whole point. Minimum breaking force is 7.7kN. The 6x19 construction over a fibre core keeps it supple enough to spool and bend without fighting you, which is why this size gets used on small hand winches and light-duty running gear.
Grade 1570 wire with a galvanised finish handles damp yards and outdoor exposure better than bright rope, and the dry lube helps keep the strands working smoothly. Right hand ordinary lay. Approximate mass is 5.8 per 100m, so a 100m length stays easy to handle on site. Check for broken wires, kinks and flattening before each use and pull it out of service if the rope is damaged.
| Product code | Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass | Metre Per Reel |
|---|---|---|---|---|---|---|---|---|---|
| 709303 | 3mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.3kN | 3.2kg/100m | 1000 |
| 709303A | 3.5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 5.8kN | 4.3kg/100m | 1000 |
| 709304 | 4mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.7kN | 5.8kg/100m | 1000 |
| 709305 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8kg/100m | 1000 |
| 709306 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4kg/100m | 1000 |
| 709308 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5kg/100m | 1000 |
| 709309 | 9mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 39kN | 28.4kg/100m | 1000 |
| 709310 | 10mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 48.2kN | 35.1kg/100m | 1000 |
| 709303-100 | 3mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.3kN | 3.2/100m | 100 |
| 709304-100 | 4mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.7kN | 5.8/100m | 100 |
| 709305-50 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8/100m | 50 |
| 709305-100 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8/100m | 100 |
| 709306-50 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 50 |
| 709306-100 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 100 |
| 709306-250 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 250 |
| 709308-50 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5/100m | 50 |
| 709308-100 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5/100m | 100 |
Questions about this equipment? Send us a message and we’ll check it against the job.
