Beaver G1570 Galvanised Wire Rope with a Fibre Core 6x19 3mm x 1000m
709303per Each
$0.45 inc GSTTrade $0.41, save $0.04Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 4.3kN |
| Core | Fibre |
| Grade | 1570 |
| Finish | Galvanised |
| Diameter | 3mm |
| Approx Mass | 3.2kg/100m |

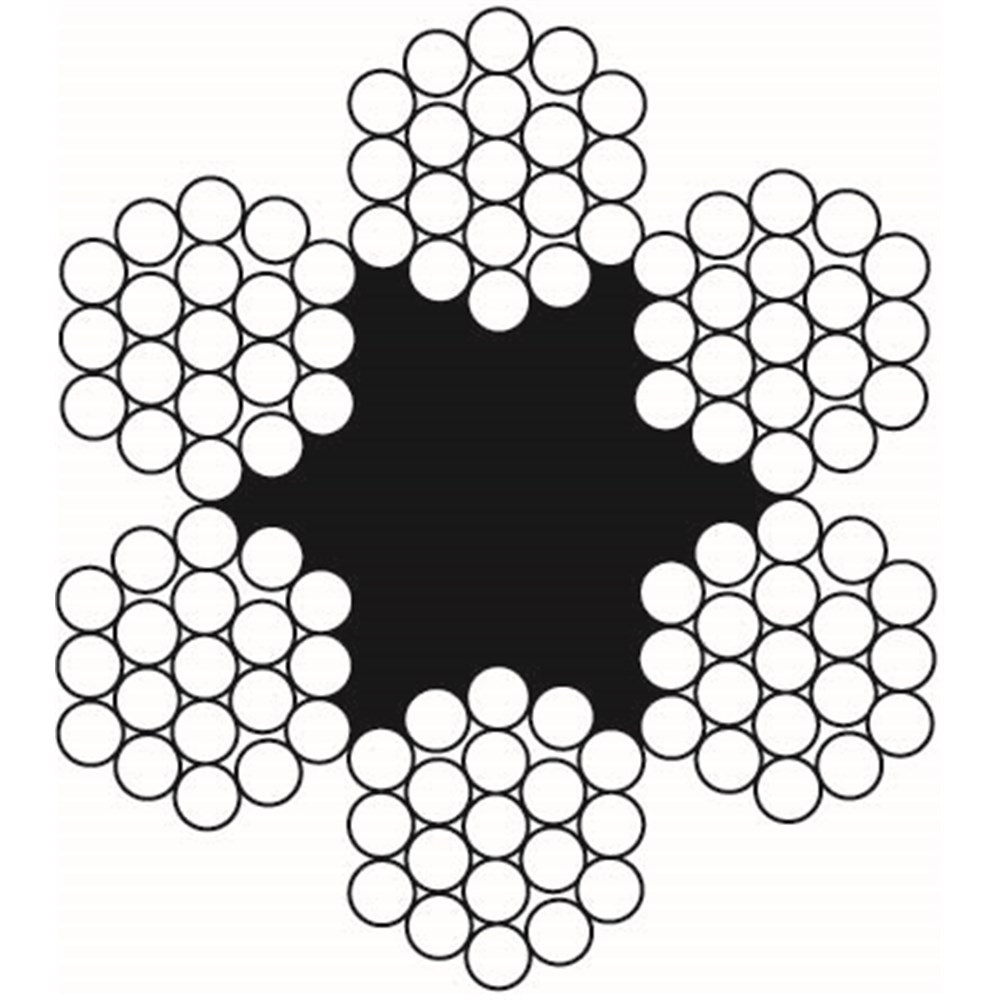

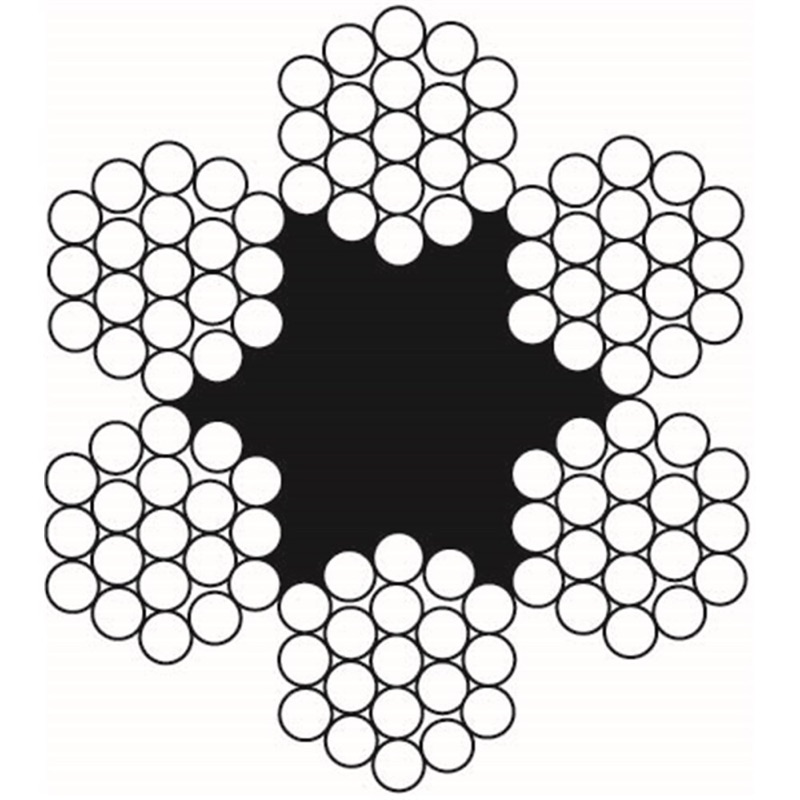

| Construction | 6x19 |
| Wire Diameter | 3mm |
| Metre Per Reel | 1000m |
About this product
The Beaver G1570 Galvanised Wire Rope with a Fibre Core 6x19 in 3mm is a light gauge rope for small pulls, guide lines and light-duty running applications. At 3mm diameter it is the fine end of the range, with a minimum breaking force of 4.3kN. The 6x19 construction over a fibre core keeps it flexible so it feeds through small sheaves and bends without fighting you.
Grade 1570 wire with a galvanised finish gives it reasonable resistance to weather and damp, and the dry lube helps keep the strands moving against each other. Mass works out at roughly 3.2kg/100m, so long runs stay easy to handle and pull out by hand. Lay is right hand ordinary. Keep an eye out for broken wires, kinks and crushing, and retire the rope once damage shows up.
Common questions
- what is the breaking strain of 3mm 6x19 galvanised wire rope
- This 3mm Beaver G1570 rope has a minimum breaking force of 4.3kN. That is a breaking figure, not a working load limit, so apply the design factor your job calls for.
- is fibre core wire rope better than steel core
- A fibre core makes the rope more flexible and easier to bend around sheaves, which suits light running work. A steel core is stiffer and holds up better under crushing and heat.
- how much does 3mm wire rope weigh
- Around 3.2kg per 100m, so it stays light to handle and pull out by hand over long runs.
Full specifications
| Product code | Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass | Metre Per Reel |
|---|---|---|---|---|---|---|---|---|---|
| 709303 | 3mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.3kN | 3.2kg/100m | 1000 |
| 709303A | 3.5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 5.8kN | 4.3kg/100m | 1000 |
| 709304 | 4mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.7kN | 5.8kg/100m | 1000 |
| 709305 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8kg/100m | 1000 |
| 709306 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4kg/100m | 1000 |
| 709308 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5kg/100m | 1000 |
| 709309 | 9mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 39kN | 28.4kg/100m | 1000 |
| 709310 | 10mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 48.2kN | 35.1kg/100m | 1000 |
| 709303-100 | 3mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.3kN | 3.2/100m | 100 |
| 709304-100 | 4mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.7kN | 5.8/100m | 100 |
| 709305-50 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8/100m | 50 |
| 709305-100 | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12kN | 8.8/100m | 100 |
| 709306-50 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 50 |
| 709306-100 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 100 |
| 709306-250 | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.6kN | 12.4/100m | 250 |
| 709308-50 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5/100m | 50 |
| 709308-100 | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.8kN | 22.5/100m | 100 |
Questions about this equipment? Send us a message and we’ll check it against the job.
