| Lay | RHOL |
| MBF | 73kN |
| Core | Wire |
| Grade | 2070 |
| Finish | Galvanised |
| Length | 520m |
| Approx Mass | 39.40/kg/100m |

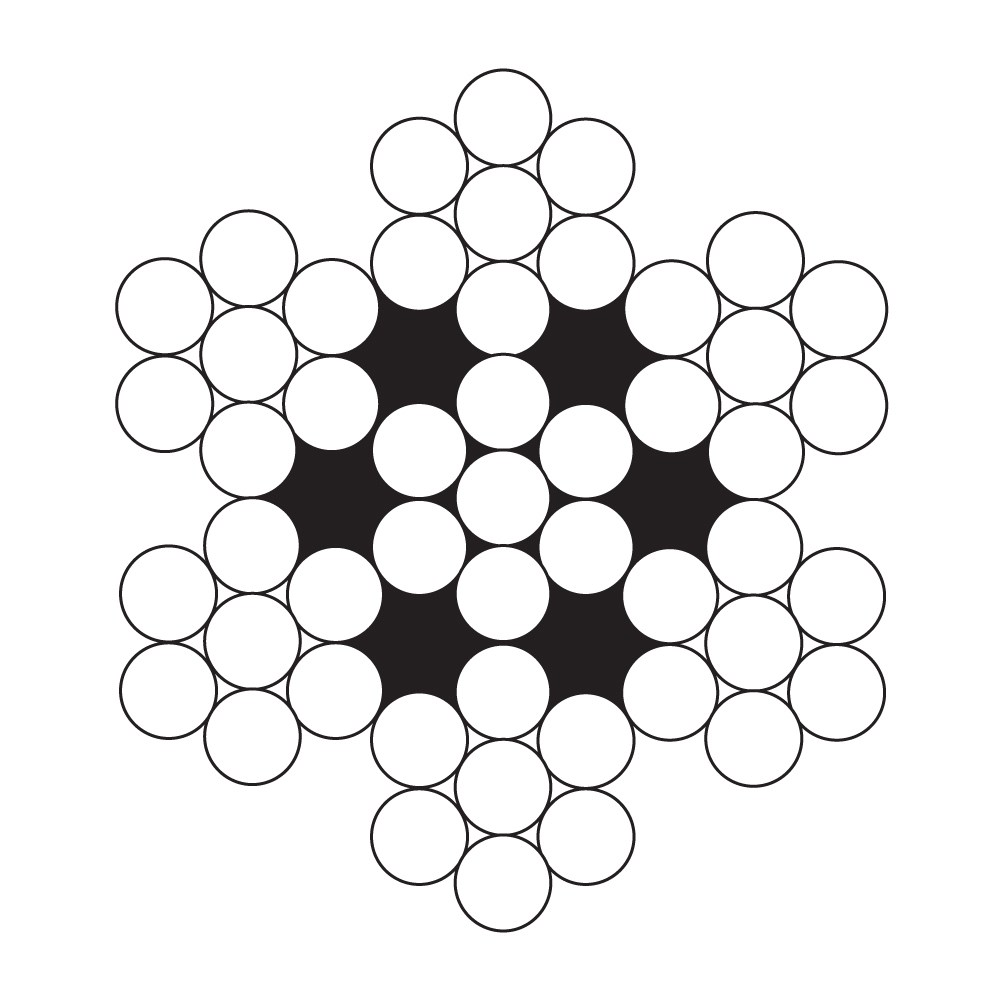

| Construction | 7x7 |
| Wire Diameter | 10mm |
The Beaver G2070 Galvanised Wire Rope 7x7 is a 10mm dry lube rope in a 520m length, with a swaged thimble eye already fitted on the inside of the reel so the terminated end is ready to pin up as the rope runs out. Grade 2070 wire, right hand ordinary lay, with a minimum breaking force of 73kN. The 7x7 construction over a wire core gives it more stiffness than a multi strand rope, which suits winching, guying and fixed line work rather than tight bending.
The galvanised finish handles outdoor and coastal exposure on site, and the dry lube means less transfer onto hands, gloves and gear. At roughly 39.40kg per 100m, a full 520m reel is a two person lift or a forklift job. This is the longest run in the range, so it is the one to order when you are setting up multiple lines or cutting to several lengths off the one reel.
| Product code | Wire Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass | Length |
|---|---|---|---|---|---|---|---|---|---|
| 708306X410 | 6mm | 7x7 | 2070 | Galvanised | Wire | RHOL | 27.2kN | 14.3kg/100m | 410m |
| 708307X420 | 7mm | 7x7 | 2070 | Galvanised | Wire | RHOL | 37.2kN | 20.2kg/100m | 420m |
| 7083084 | 8mm | 7x7 | 2070 | Galvanised | Wire | RHOL | 47.5kN | 25.66kg/100m | 410m |
| 708308X420 | 8mm | 7x7 | 2070 | Galvanised | Wire | RHOL | 47.5kN | 25.66kg/100m | 420m |
| 7083096 | 9mm | 7x7 | 2070 | Galvanised | Wire | RHOL | 59.3kN | 32kg/100m | 610m |
| 708310X520 | 10mm | 7x7 | 2070 | Galvanised | Wire | RHOL | 73kN | 39.40/kg/100m | 520m |
| 708310X620 | 10mm | 7x7 | 2070 | Galvanised | Wire | RHOL | 73kN | 39.40/kg/100m | 620m |
Questions about this equipment? Send us a message and we’ll check it against the job.
