Beaver G1570 Galvanised Wire Rope with a Fibre Core 6x7 4mm
707304per Each
$0.51 inc GSTTrade $0.46, save $0.05Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 8.4kN |
| Core | Fibre |
| Grade | 1570 |
| Finish | Galvanised |
| Diameter | 4mm |
| Approx Mass | 5.5kg/100m |

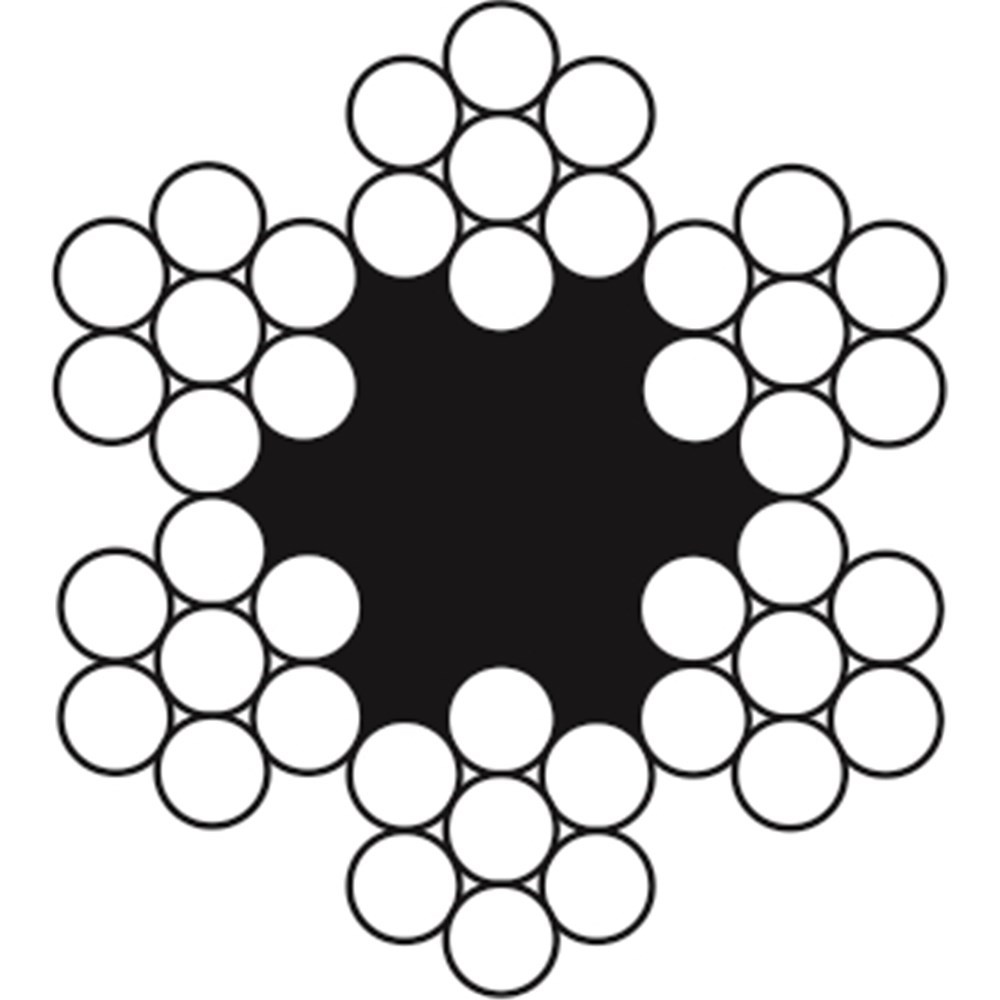

| Construction | 6x7 |
About this product
The Beaver G1570 Galvanised Wire Rope with a Fibre Core 6x7 in 4mm is the lightest size in the range, suited to light tie-off work, fencing, guy lines and general utility jobs around site. The 6x7 construction gives you a firmer, more wear resistant rope than finer constructions, and the fibre core keeps it flexible enough to handle by hand. Minimum breaking force is 8.4kN.
At grade 1570 with a galvanised finish, it holds up reasonably well outdoors and in damp conditions. Right hand ordinary lay, with a dry lube from the factory. Approximate mass is 5.5kg per 100m, so it is easy to run out and terminate on your own. Step up to a larger diameter in the range if you need more breaking force from the same construction.
Common questions
- what is the breaking strain of 4mm 6x7 wire rope
- The 4mm Beaver G1570 has a minimum breaking force of 8.4kN. That is a breaking figure, not a working load limit, so apply your own design factor.
- is beaver galvanised wire rope ok outside
- The galvanised finish gives it decent resistance to weather and moisture, which is why it is a common choice for outdoor guy lines and fencing. Keep an eye on it for rust and broken wires.
- fibre core vs steel core wire rope
- A fibre core, as used in this 4mm rope, is more flexible and easier to handle by hand. A steel core is stiffer and holds up better under crushing and heat.
Full specifications
| Product code | Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 707302 | 2mm | 6x7 | 1570 | Galvanised | Fibre | RHOL | 2.1kN | 1.4kg/100m |
| 707302A | 2.5mm | 6x7 | 1570 | Galvanised | Fibre | RHOL | 3.2kN | 2.65kg/100m |
| 707303 | 3mm | 6x7 | 1570 | Galvanised | Fibre | RHOL | 4.7kN | 3.22kg/100m |
| 707304 | 4mm | 6x7 | 1570 | Galvanised | Fibre | RHOL | 8.4kN | 5.5kg/100m |
| 707305 | 5mm | 6x7 | 1570 | Galvanised | Fibre | RHOL | 13.1kN | 8.6kg/100m |
| 707306 | 6mm | 6x7 | 1570 | Galvanised | Fibre | RHOL | 18.8kN | 12.4kg/100m |
Questions about this equipment? Send us a message and we’ll check it against the job.
