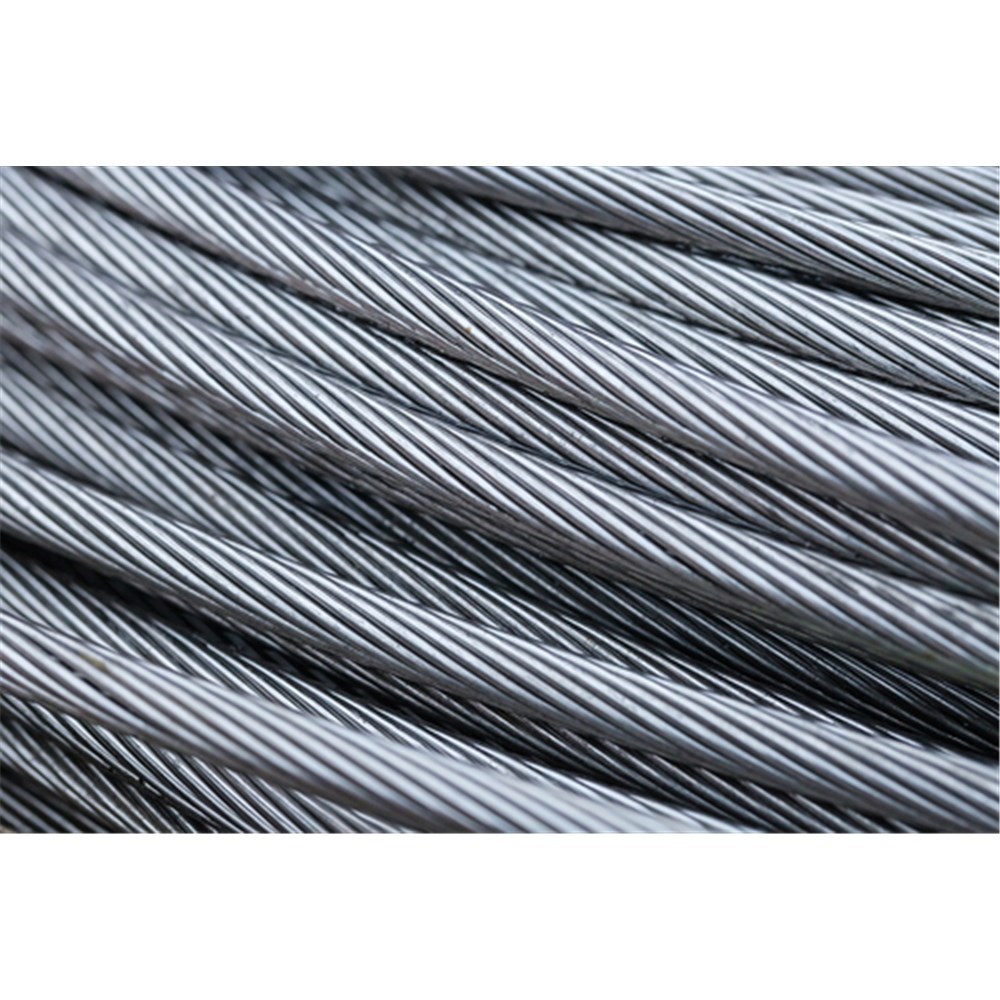

Beaver G1570 PVC Coated Galvanised Wire Rope With a Fibre Core - 6x19 (Red) 5mm x 7mm
706050Rper Each
$1.20 inc GSTTrade $1.08, save $0.12Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 12.06kN |
| Core | Fibre |
| Grade | 1570 |
| Finish | Galvanised |
| Approx Mass | 8.6kg/100m |
| Construction | 6x19 |
| Wire Diameter | 5mm |
| PVC Outside Diameter | 7mm |
About this product
The Beaver G1570 PVC Coated Galvanised Wire Rope in 5mm x 7mm is a flexible fibre core rope with a red PVC jacket, used for light restraint, barriers, guard lines and general tie-off work where a bare rope would snag or mark what it touches. This is the smaller of the two sizes, with a 5mm galvanised core stepping out to 7mm over the coating, so it stays easy to handle and easy to see.
Construction is 6x19 around a fibre core in grade 1570 wire, right hand ordinary lay, with a minimum breaking force of 12.06kN. Mass works out at roughly 8.6kg per 100m, light enough to run out by hand. The galvanising handles moisture under the PVC, and the red coating gives you a visible line on site. Not for overhead lifting.
Common questions
- what is the breaking strength of 5mm beaver pvc coated wire rope
- The minimum breaking force is 12.06kN. That is a breaking figure, not a working load limit, so apply your own design factor.
- what is the diameter of the rope with the pvc coating on
- The steel rope itself is 5mm and the outside diameter over the red PVC is 7mm, so allow for 7mm through any fittings or fairleads.
- 5mm or 6mm pvc coated wire rope which one do i need
- This 5mm x 7mm size is the lighter of the two in the Beaver range, rated at 12.06kN MBF and about 8.6kg per 100m. Step up to the larger size if you need more strength.
Full specifications
| Product code | Wire Diameter | PVC Outside Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|---|
| 706030AR | 3.5mm | 5.5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 5.92kN | 4.2kg/100m |
| 706050R | 5mm | 7mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12.06kN | 8.6kg/100m |
