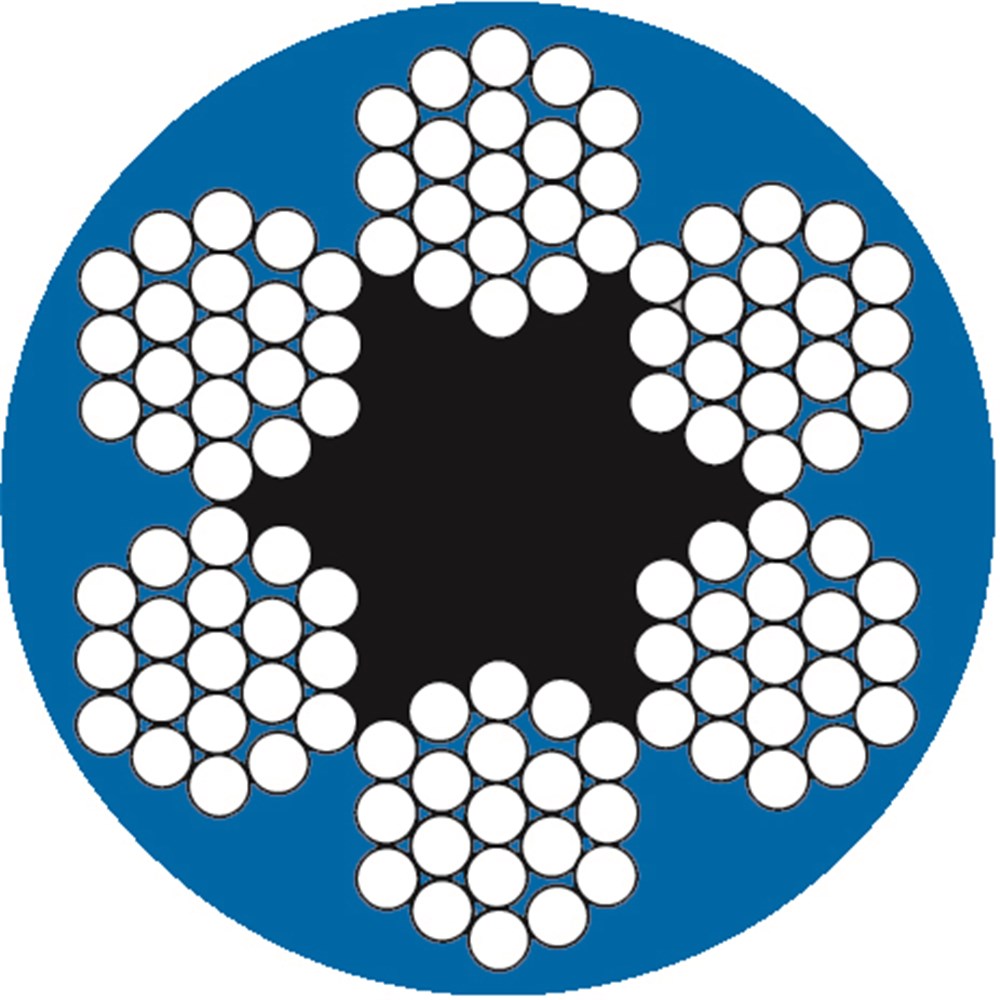

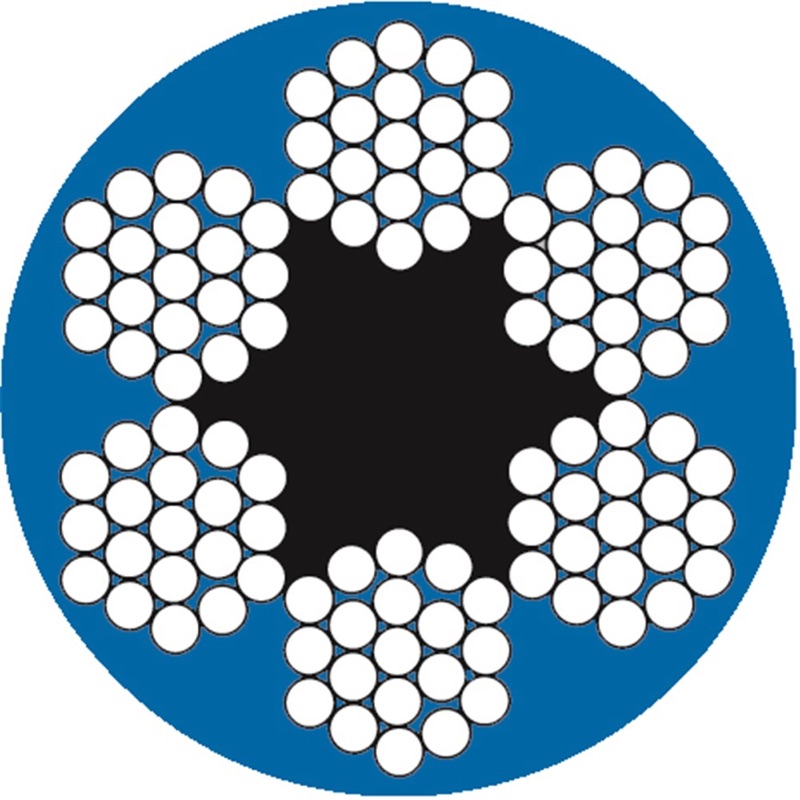

Beaver G1570 PVC Coated Galvanised Wire Rope With a Fibre Core - 6x19 (Blue) 3.5mm x 5.5mm
706030Aper Each
$0.94 inc GSTTrade $0.85, save $0.09Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 5.92kN |
| Core | Fibre |
| Grade | 1570 |
| Finish | Galvanised |
| Approx Mass | 4.2kg/100m |
| Construction | 6x19 |
| Wire Diameter | 3.5mm |
| PVC Outside Diameter | 5.5mm |
About this product
The Beaver G1570 PVC Coated Galvanised Wire Rope With a Fibre Core is a flexible 6x19 rope with a blue PVC jacket, used for light hauling, barriers, fencing lines and general tie-back work. This is the smallest size in the range, with a 3.5mm wire diameter finishing at 5.5mm over the PVC. Minimum breaking force is 5.92kN and it weighs roughly 4.2kg per 100m, so it is easy to handle and run out by hand.
Underneath the coating the rope is galvanised grade 1570 steel in right hand ordinary lay, with a fibre core that keeps it supple through pulleys and around corners. The blue PVC adds a bit of protection to the wire and stops the rope marking whatever it runs against. Handy where you want something visible and neat rather than heavy lifting rope.
Common questions
- what is the breaking strength of 3.5mm beaver wire rope
- This size has a minimum breaking force of 5.92kN. That is a breaking figure, not a working load limit, so apply your own design factor.
- is the 3.5mm or the 5.5mm the actual wire size
- The steel rope itself is 3.5mm. The 5.5mm figure is the outside diameter once the blue PVC coating is on, which matters when sizing thimbles, ferrules and sheaves.
- what is the difference between fibre core and steel core wire rope
- A fibre core, as used here, makes the 6x19 rope more flexible and easier to bend around corners and sheaves. A steel core is stiffer and carries more load for the same diameter.
- does the pvc coated galvanised rope suit outdoor use
- Yes. The grade 1570 wire is galvanised and the blue PVC jacket covers it, which helps in exposed conditions and keeps the rope from marking surfaces it runs against.
Full specifications
| Product code | Wire Diameter | PVC Outside Diameter | Construction | Grade | Finish | Core | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|---|
| 706030 | 3mm | 5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 4.34kN | 3.16kg/100m |
| 706030A | 3.5mm | 5.5mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 5.92kN | 4.2kg/100m |
| 706040 | 4mm | 6mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 7.72kN | 5.5kg/100m |
| 706050 | 5mm | 7mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 12.06kN | 8.6kg/100m |
| 706060 | 6mm | 8mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 17.39kN | 12.4kg/100m |
| 706080 | 8mm | 10mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 30.9kN | 22.1kg/100m |
| 706100 | 10mm | 12mm | 6x19 | 1570 | Galvanised | Fibre | RHOL | 48.2kN | 34.6kg/100m |
Questions about this equipment? Send us a message and we’ll check it against the job.
