| Lay | RHOL |
| MBF | 10.67kN |
| PVC | White |
| Grade | 304 |
| Finish | Stainless Steel |
| Diameter | 4mm |
| Approx Mass | 7.5kg/100m |

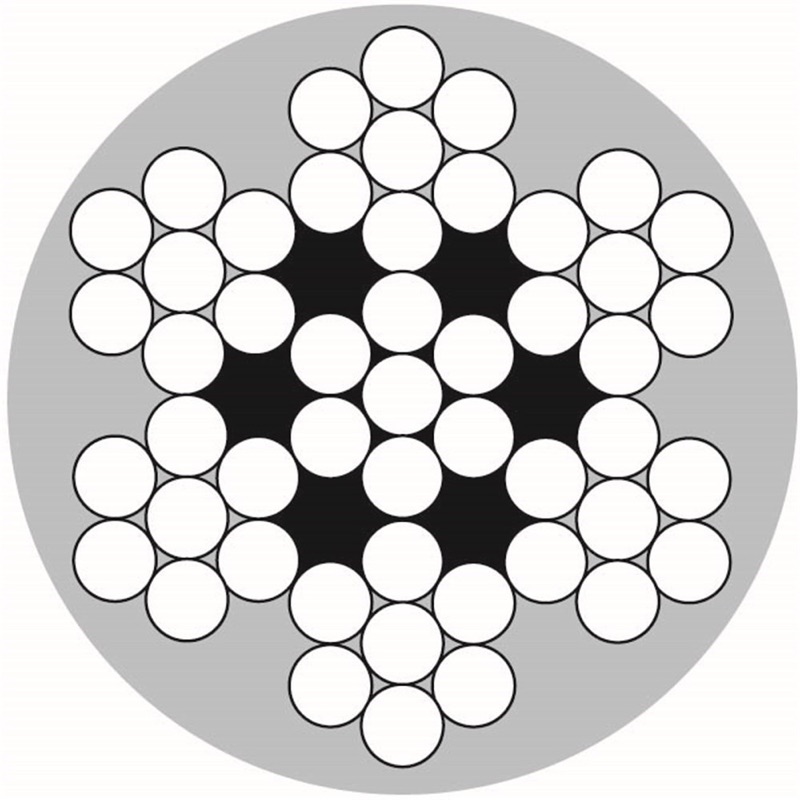

| Construction | 7x7 |
| Wire Diameter | 4mm |
Beaver G304 PVC Coated Stainless Steel Wire Rope 7x7 4mm is a semi-rigid rope for fixed rigging jobs like balustrading and safety barrier rail. At 4mm it is the middle ground in the range, with a minimum breaking force of 10.67kN and an approximate mass of 7.5kg/100m, so it handles a decent span without much weight on the posts. Right hand ordinary lay, 7x7 construction, finished with a white PVC coat over the Grade 304 wire.
The 7x7 build has fewer, heavier wires than a flexible rope, which is exactly what you want when the line stays put rather than running over sheaves. Grade 304 is the standard stainless grade, with good corrosion resistance for marine, waste management and general outdoor work, though it has limits in harsher environments. The white PVC adds a tidy look and keeps hands off the strands.
| Product Code | Diameter | Construction | Grade | Finish | PVC | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|---|
| 705030 | 3mm | 7x7 | 304 | Stainless Steel | White | RHOL | 10.01kN | 6.6kg/100m |
| 705040 | 4mm | 7x7 | 304 | Stainless Steel | White | RHOL | 10.67kN | 7.5kg/100m |
| 705050 | 5mm | 7x7 | 304 | Stainless Steel | White | RHOL | 16.44kN | 11.65kg/100m |
Questions about this equipment? Send us a message and we’ll check it against the job.
