Beaver G304 Stainless Steel Wire Rope - 7X19 4mm x 305m
703040per Each
$1.78 inc GSTTrade $1.60, save $0.18Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 10.67kN |
| UOM | Metre |
| Grade | 304 |
| Finish | Stainless Steel |
| Diameter | 4mm |

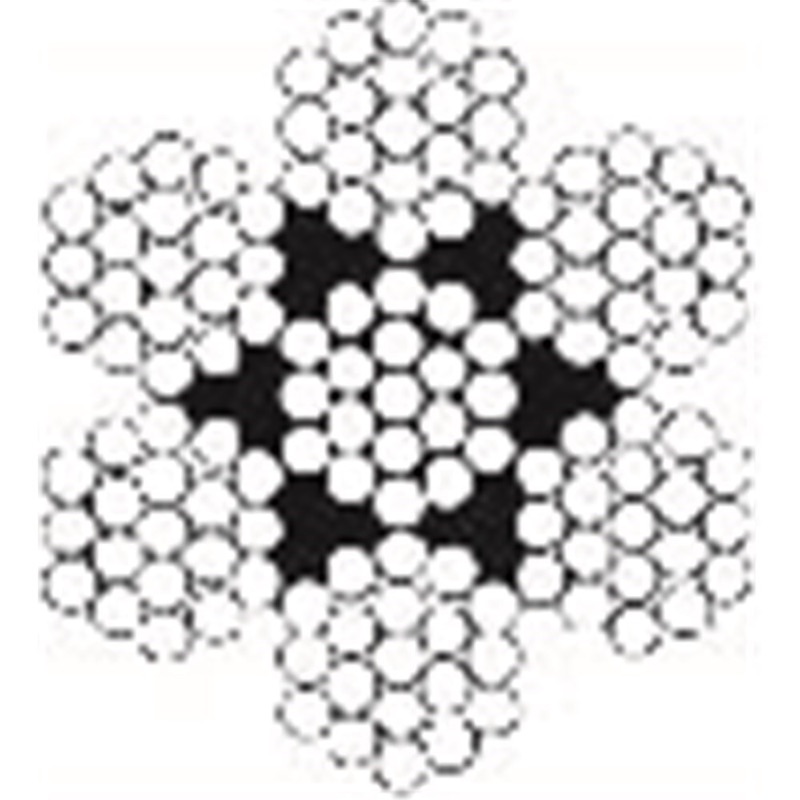

| Construction | 7x19 |
| Wire Diameter | 4mm |
| Metre Per Reel | 305m |
| Approx Mass Kg/100m | 6.27 |
About this product
Beaver G304 Stainless Steel Wire Rope in 4mm, 7x19 construction, is a flexible stainless rope for corrosion-prone rigging and general outdoor work. The 4mm diameter sits in the lighter end of the range, so it suits balustrade infills, light guy work and control lines where a thicker rope would be overkill. Minimum breaking force is 10.67kN, and the rope runs a right hand ordinary lay.
Grade 304 stainless holds up well against corrosion in marine and waste handling environments, though it has limits where conditions get more aggressive than that. The 7x19 construction, with its higher wire count, bends more readily than stiffer stainless ropes. Approximate mass is 6.27kg per 100m, so it stays easy to handle and terminate on site.
Common questions
- what is the breaking strength of 4mm 7x19 stainless wire rope
- The minimum breaking force for this 4mm Beaver G304 rope is 10.67kN. That is a breaking figure, not a working load limit, so apply your own design factor.
- is grade 304 stainless wire rope ok for marine use
- Grade 304 has good corrosion resistance and is commonly used in marine and waste management applications. It does have limitations in more highly corrosive environments.
- 7x19 vs 1x19 stainless wire rope which should I use
- 7x19 has more wires and bends more easily, so it works where the rope needs to flex or run over a sheave. A 1x19 rope is very stiff and is meant for fixed straight line rigging such as mast stays and structural work.
Full specifications
| Product Code | Diameter | Construction | Grade | Finish | Lay | MBF | Approx Mass Kg/100m | UOM | Metre Per Reel |
|---|---|---|---|---|---|---|---|---|---|
| 703016 | 1.6mm | 7x19 | 304 | Stainless Steel | RHOL | 1.85kN | 1.1 | Metre | 305 |
| 703020 | 2mm | 7x19 | 304 | Stainless Steel | RHOL | 2.89kN | 1.63 | Metre | 305 |
| 703025 | 2.5mm | 7x19 | 304 | Stainless Steel | RHOL | 4.43kN | 2.51 | Metre | 305 |
| 703030 | 3.2mm | 7x19 | 304 | Stainless Steel | RHOL | 7.82kN | 4.01 | Metre | 305 |
| 703040 | 4mm | 7x19 | 304 | Stainless Steel | RHOL | 10.67kN | 6.27 | Metre | 305 |
| 703040C | 4mm | 7x19 | 304 | Stainless Steel | RHOL | 10.67kN | 6.27 | Metre | 1000 |
| 703050 | 5mm | 7x19 | 304 | Stainless Steel | RHOL | 17.84kN | 9.81 | Metre | 305 |
| 703060 | 6mm | 7x19 | 304 | Stainless Steel | RHOL | 20.5kN | 14.21 | Metre | 305 |
| 703080 | 8mm | 7x19 | 304 | Stainless Steel | RHOL | 40kN | 25.03 | Metre | 305 |
