| Lay | RHOL |
| MBF | 4.43kN |
| UOM | Metre |
| Grade | 304 |
| Finish | Stainless Steel |
| Diameter | 2.5mm |

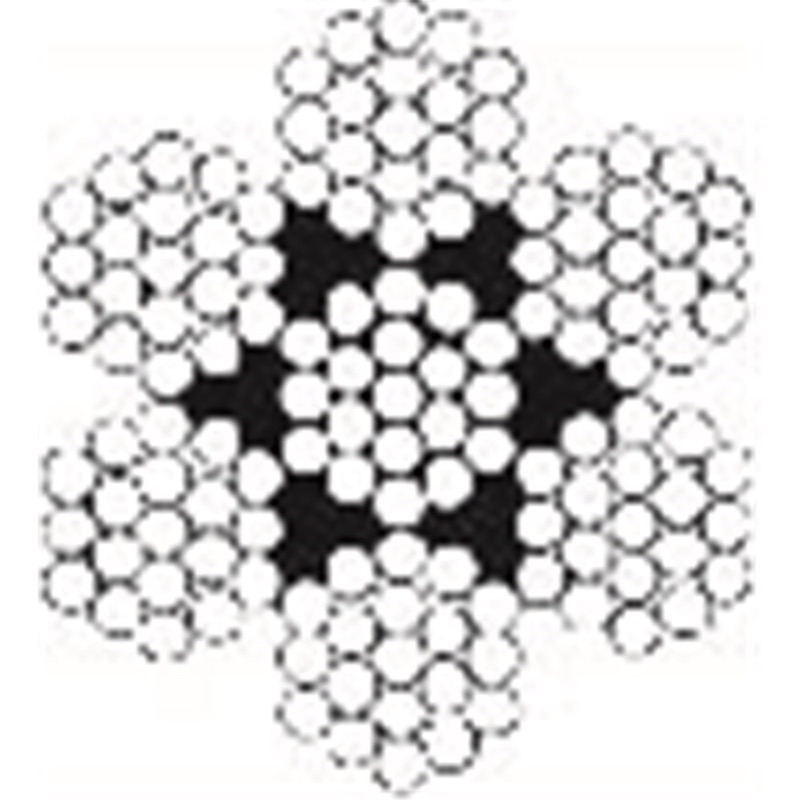

| Construction | 7x19 |
| Wire Diameter | 2.5mm |
| Metre Per Reel | 305m |
| Approx Mass Kg/100m | 2.51 |
The Beaver G304 Stainless Steel Wire Rope in 7x19 construction at 2.5mm is a flexible stainless rope for light rigging, balustrading runs and general outdoor work. At 2.5mm it is the finer end of the range, with a minimum breaking force of 4.43kN and an approximate mass of 2.51kg per 100m, so it handles easily over sheaves and through fittings without much bulk. The 305m reel length suits longer runs where you do not want joins.
Grade 304 stainless gives good corrosion resistance for marine, waste management and exposed outdoor applications, though it has limits in harsher corrosive environments. The lay is right hand ordinary. The 7x19 make up, with 19 wires per strand, stays more flexible than stiffer single strand constructions, which makes it a better fit where the rope needs to bend or move. Keep it clear of carbon steel fittings to avoid staining.
| Product Code | Diameter | Construction | Grade | Finish | Lay | MBF | Approx Mass Kg/100m | UOM | Metre Per Reel |
|---|---|---|---|---|---|---|---|---|---|
| 703016 | 1.6mm | 7x19 | 304 | Stainless Steel | RHOL | 1.85kN | 1.1 | Metre | 305 |
| 703020 | 2mm | 7x19 | 304 | Stainless Steel | RHOL | 2.89kN | 1.63 | Metre | 305 |
| 703025 | 2.5mm | 7x19 | 304 | Stainless Steel | RHOL | 4.43kN | 2.51 | Metre | 305 |
| 703030 | 3.2mm | 7x19 | 304 | Stainless Steel | RHOL | 7.82kN | 4.01 | Metre | 305 |
| 703040 | 4mm | 7x19 | 304 | Stainless Steel | RHOL | 10.67kN | 6.27 | Metre | 305 |
| 703040C | 4mm | 7x19 | 304 | Stainless Steel | RHOL | 10.67kN | 6.27 | Metre | 1000 |
| 703050 | 5mm | 7x19 | 304 | Stainless Steel | RHOL | 17.84kN | 9.81 | Metre | 305 |
| 703060 | 6mm | 7x19 | 304 | Stainless Steel | RHOL | 20.5kN | 14.21 | Metre | 305 |
| 703080 | 8mm | 7x19 | 304 | Stainless Steel | RHOL | 40kN | 25.03 | Metre | 305 |
