Beaver G316 Stainless Steel Wire Rope - 1x19 4mm
701140per Metre
$2.04 inc GSTTrade $1.84, save $0.20Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 13.05kN |
| Grade | 316 |
| Finish | Stainless Steel |
| Diameter | 4mm |
| Approx Mass | 8.17kg/100m |

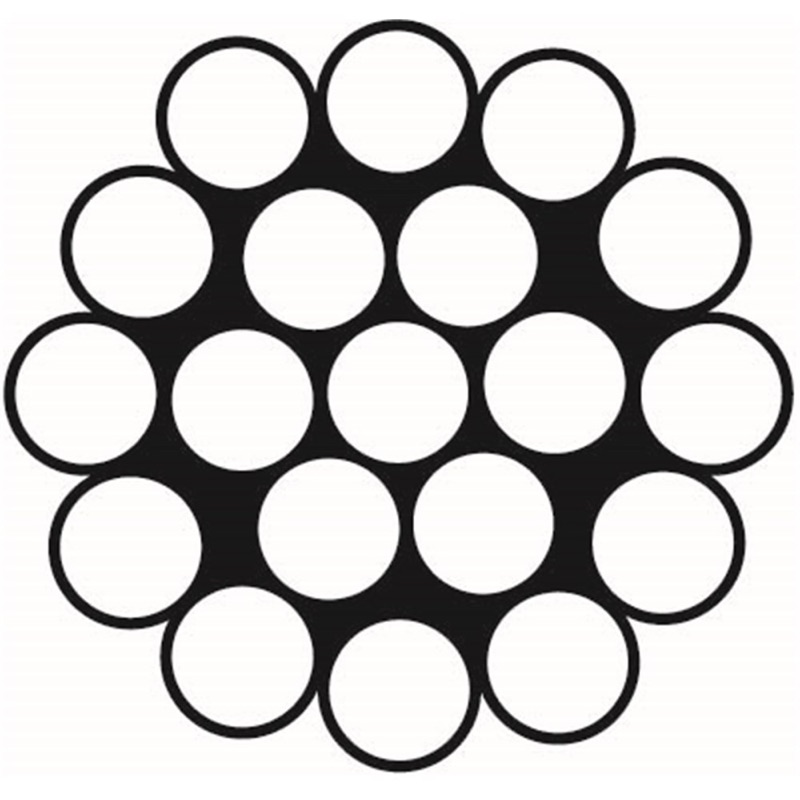

| Construction | 1x19 |
| Wire Diameter | 4mm |
About this product
The Beaver G316 Stainless Steel Wire Rope in 1x19 4mm is a stiff, non-flexible rope built for fixed straight-line rigging like mast stays, guy ropes and balustrade runs. At 4mm it is the heavier of the two sizes in this range, with a minimum breaking force of 13.05kN and an approximate mass of 8.17kg/100m. Right hand ordinary lay, 19 wires in a single strand.
Grade 316 is marine grade stainless, so it handles salt water and coastal air better than G304. That makes it a sensible pick for boats, jetties, waste management sites and anywhere the weather gets at the steel. The 1x19 construction will not run over sheaves or bend around tight radii, so keep it to straight tensioned runs and use a more flexible construction where movement is involved.
Common questions
- what is the breaking strength of 4mm 1x19 stainless wire rope
- This 4mm Beaver G316 1x19 rope has a minimum breaking force of 13.05kN. That figure is a breaking force, not a working load limit.
- is 316 stainless wire rope better than 304 for salt water
- Yes. Grade 316 has higher corrosion resistance than G304 and performs better in harsher corrosive conditions, including salt water and coastal environments.
- can 1x19 wire rope be used over pulleys
- No. The 1x19 construction is very stiff and suited to fixed straight-line rigging only, such as mast stays, guy ropes and structural applications.
Full specifications
| Product Code | Diameter | Construction | Grade | Finish | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|
| 701130 | 3.2mm | 1x19 | 316 | Stainless Steel | RHOL | 8.34kN | 5.08kg/100m |
| 701140 | 4mm | 1x19 | 316 | Stainless Steel | RHOL | 13.05kN | 8.17kg/100m |
Questions about this equipment? Send us a message and we’ll check it against the job.
