Beaver G304 Stainless Steel Wire Rope - 1x19 5mm
701050per Metre
$2.71 inc GSTTrade $2.44, save $0.27Trade accounts save 10%. Apply with your ABN
| Lay | RHOL |
| MBF | 20.58kN |
| Grade | 304 |
| Finish | Stainless Steel |
| Diameter | 5mm |
| Approx Mass | 12.77kg/100m |

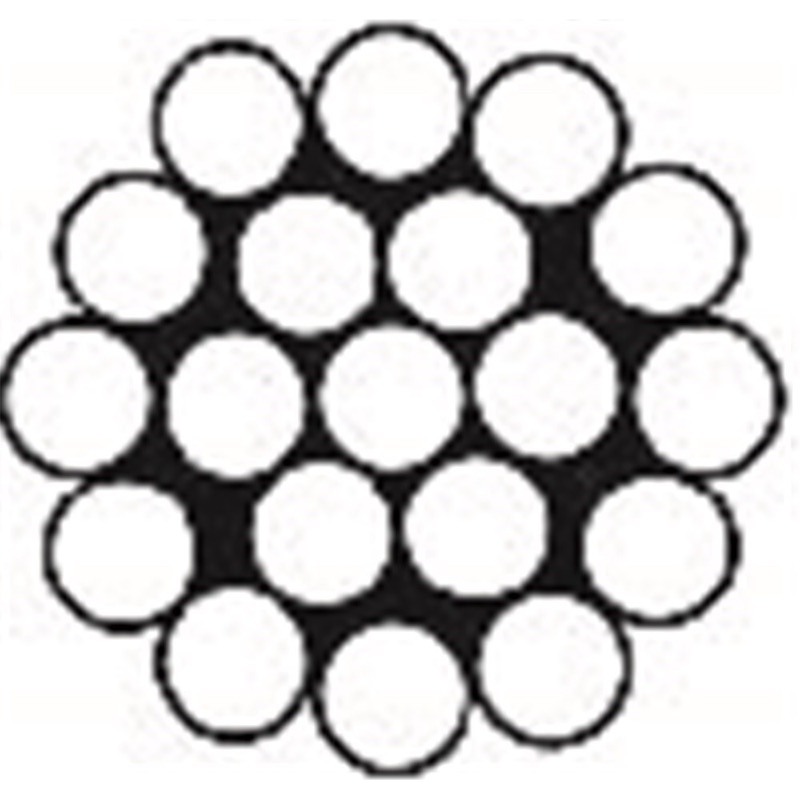

| Construction | 1x19 |
| Wire Diameter | 5mm |
About this product
Beaver G304 Stainless Steel Wire Rope 1x19 5mm is a stiff, non-flexible rope for fixed straight-line rigging like mast stays, guy ropes and structural runs. The 5mm diameter is the heavier of the two sizes in this range, with a minimum breaking force of 20.58kN and an approximate mass of 12.77kg/100m. Right hand ordinary lay, 1x19 construction, so it holds its line rather than bending around sheaves.
Grade 304 stainless gives good corrosion resistance for marine work, waste management and anything sitting out in the weather, though it has limits in harsher corrosive conditions. The clean stainless finish also suits decorative jobs such as balustrading, where the wire is on show. Keep it out of running applications and it will do its job for years. Wipe down and inspect for surface staining or broken wires where salt and grime collect.
Common questions
- what is the breaking strain of 5mm 1x19 stainless wire rope
- This 5mm Beaver G304 1x19 rope has a minimum breaking force of 20.58kN. That is a breaking figure, not a working load limit, so apply your own design factor.
- is 304 stainless wire rope ok for marine use
- Grade 304 is a standard grade with good corrosion resistance and is commonly used in marine and waste management work. In higher corrosive environments its resistance has limits.
- can you use 1x19 wire rope over a pulley
- No. The 1x19 construction is very stiff and is meant for fixed straight-line rigging such as mast stays, guy ropes and structural applications.
Full specifications
| Product Code | Diameter | Construction | Grade | Finish | Lay | MBF | Approx Mass |
|---|---|---|---|---|---|---|---|
| 701030 | 3mm | 1x19 | 304 | Stainless Steel | RHOL | 7.4kN | 5.59kg/100m |
| 701050 | 5mm | 1x19 | 304 | Stainless Steel | RHOL | 20.58kN | 12.77kg/100m |
