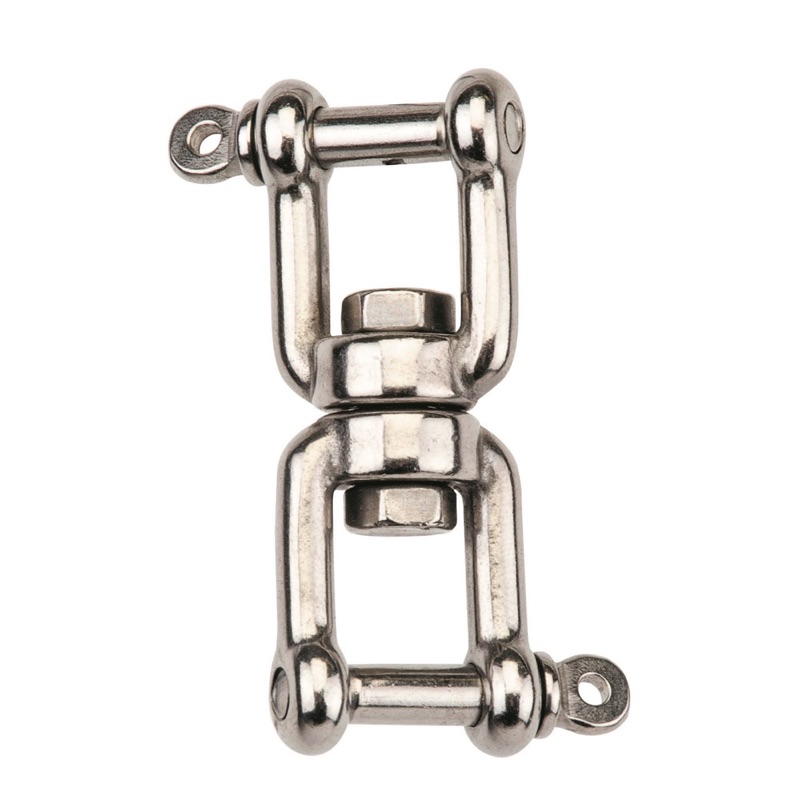

Beaver G316 Stainless Steel Jaw and Jaw Swivel 8mm
619308per Each
$23.50 inc GSTTrade $21.15, save $2.35Trade accounts save 10%. Apply with your ABN
| A | 87mm |
| B | 16mm |
| C | 15.5mm |
| Grade | 316 |
| Weight | 0.14kg |
| Thickness | 8mm |
About this product
The Beaver G316 Stainless Steel Jaw and Jaw Swivel 8mm is a jaw-ended swivel fitting used to line up two loads in wire rope, shade sail and other tensioning setups. This is the 8mm size, the smaller of the two in the range, measuring 87mm overall with a 16mm B dimension and 15.5mm at C, and it weighs 0.14kg. Jaw ends at both sides make connecting or pulling off a load quick work, and the pins are tensioned to secure it.
Set up correctly, the swivel holds a straight line between the two loads and will not turn and misalign once tension comes on, which keeps stress off the connection. It is made from grade 316 marine stainless, so corrosion resistance is high in saltwater and other harsh conditions. That same material also suits food and pharmaceutical processing work where washdown and hygiene matter.
Common questions
- what size is the beaver 8mm jaw and jaw swivel
- The 8mm version measures 87mm overall (A), with B at 16mm and C at 15.5mm. It weighs 0.14kg.
- is 316 stainless ok for saltwater
- Yes, grade 316 is marine grade stainless with high corrosion resistance, which is why this swivel suits coastal and saltwater environments.
- does a jaw and jaw swivel spin under load
- No. It is designed to align two loads in a straight line and will not swivel and misalign once the load comes on.
Full specifications
| Product Code | Thickness | A | B | C | Grade | Weight |
|---|---|---|---|---|---|---|
| 619306 | 6mm | 64.4mm | 12mm | 12mm | 316 | 0.07kg |
| 619308 | 8mm | 87mm | 16mm | 15.5mm | 316 | 0.14kg |
| 619310 | 10mm | 111mm | 18.5mm | 20.5mm | 316 | 0.258kg |
| 619313 | 13mm | 143.5mm | 26mm | 25.5mm | 316 | 0.62kg |
