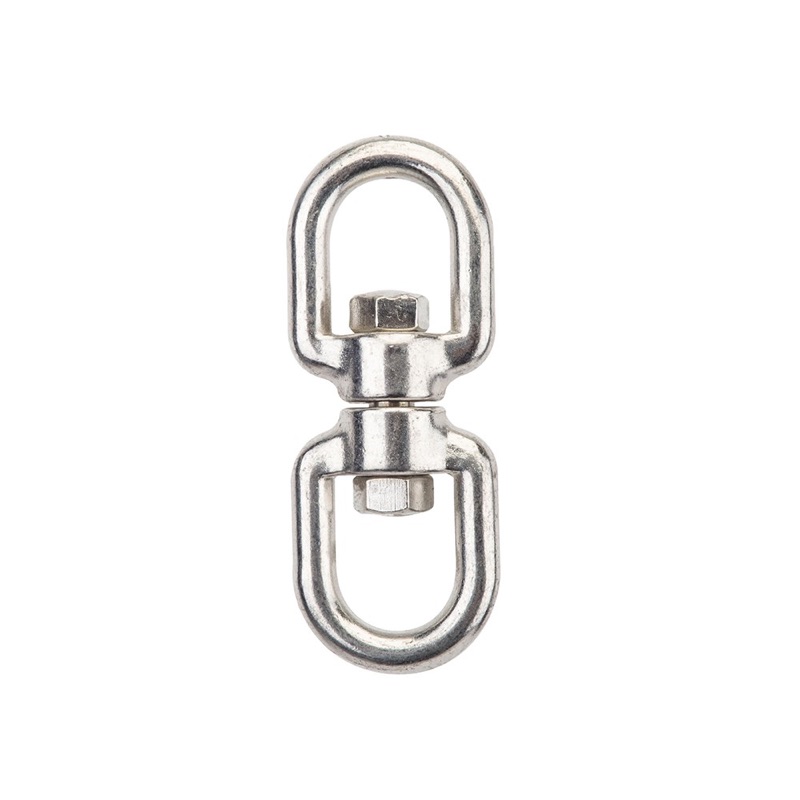

Beaver G316 Stainless Steel Eye and Eye Swivel 8mm
619108per Each
$25.33 inc GSTTrade $22.80, save $2.53Trade accounts save 10%. Apply with your ABN
| A | 90mm |
| B | 19mm |
| C | 21.5mm |
| Grade | 316 |
| Weight | 0.12kg |
| Thickness | 8mm |
About this product
The Beaver G316 Stainless Steel Eye and Eye Swivel 8mm is a double-eye swivel that joins two loads and lets them rotate out twist instead of binding up. This is the 8mm size in the range, measuring 90mm overall with a 19mm B dimension and 21.5mm across C, and weighing 0.12kg. It is the smaller, lighter option where you need alignment without adding much bulk to the assembly.
Grade 316 stainless holds up where saltwater and damp are part of the job, so it suits marine work, jetties and washdown areas. The same material makes it a sensible pick for food and pharmaceutical processing, where hygiene and corrosion both matter. Fit it between two connection points to keep the line straight and let the swivel take the rotation. Give the eyes and the swivel body a look over before each use and make sure it still turns freely.
Common questions
- what is a beaver eye and eye swivel used for
- It connects two loads and keeps them in a straight line, letting the connection rotate rather than twist up. It is also called a double swivel.
- is 316 stainless steel ok for saltwater
- Yes, grade 316 stainless is chosen for environments where saltwater is present, along with other wet and corrosive conditions.
- what size is the 8mm beaver eye and eye swivel
- The 8mm version is 90mm long overall, with a B dimension of 19mm and C of 21.5mm, and it weighs 0.12kg.
Full specifications
| Product Code | Thickness | A | B | C | Grade | Weight |
|---|---|---|---|---|---|---|
| 619106 | 6mm | 66mm | 15mm | 15.5mm | 316 | 0.05kg |
| 619108 | 8mm | 90mm | 19mm | 21.5mm | 316 | 0.12kg |
| 619113 | 13mm | 148mm | 33mm | 33mm | 316 | 0.51kg |
