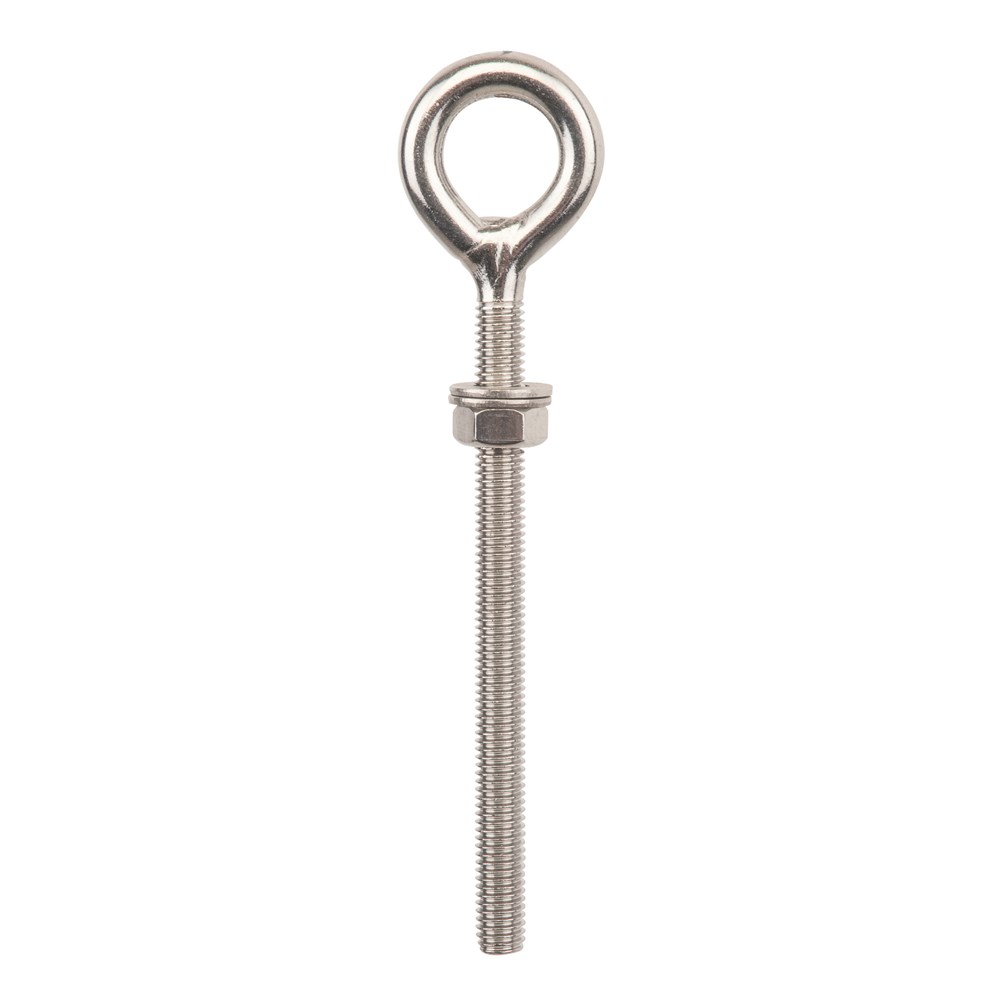

Beaver G304 Stainless Steel Eye Bolt with Nut and 2 Washers 6mm x 80mm
618462per Each
$2.46 inc GSTTrade $2.21, save $0.25Trade accounts save 10%. Apply with your ABN
| A | 80mm |
| B | 13mm |
| C | M6 |
| Grade | 304 |
| Weight | 0.03kg |
| Thread Size | 6mm |
| Screw Length | 80mm |
About this product
The Beaver G304 Stainless Steel Eye Bolt with Nut and 2 Washers 6mm x 80mm is a through-fixing anchor point for beams, panels and shade sail structures. The 80mm screw length is the long option in the M6 range, so it suits thicker timber or deeper panel build-ups where a shorter shank runs out of thread. The 13mm eye is fully welded, and the nut and two flat washers come with it so you can spread the load either side of the fixing.
Grade 304 stainless steel gives good corrosion resistance, which makes it a sensible pick for balustrading and outdoor shade structures around Perth. High tensile strength, light at 0.03kg, and easy enough to drill and bolt up on site. One thing to be clear on, this eye bolt is not to be used for lifting applications. Keep it for static fixing points and tensioned fabric work.
Common questions
- can you use a Beaver stainless eye bolt for lifting?
- No. Beaver states these eye bolts are not to be used for lifting applications, so keep them for fixing points and tensioned structures.
- what thread size and length is the 6mm x 80mm eye bolt?
- It has an M6 thread with an 80mm screw length, and the eye measures 13mm.
- is 304 stainless ok for outdoor shade sails?
- Grade 304 stainless steel has good resistance to corrosion, which is why these bolts are commonly used on shade sail structures and balustrading.
Full specifications
| Product Code | Thread Size | A | B | C | Grade | Weight |
|---|---|---|---|---|---|---|
| 618451 | 5mm | 50mm | 11mm | M5 | 304 | 0.01kg |
| 618461 | 6mm | 40mm | 13mm | M6 | 304 | 0.02kg |
| 618462 | 6mm | 80mm | 13mm | M6 | 304 | 0.03kg |
| 618463 | 6mm | 55mm | 13mm | M6 | 304 | 0.02kg |
| 618464 | 6mm | 100mm | 13mm | M6 | 304 | 0.03kg |
| 618481 | 8mm | 80mm | 17mm | M8 | 304 | 0.06kg |
| 618482 | 8mm | 100mm | 17mm | M8 | 304 | 0.06kg |
| 618483 | 8mm | 120mm | 17mm | M8 | 304 | 0.07kg |
| 618493 | 10mm | 120mm | 21mm | M10 | 304 | 0.12kg |
| 618496 | 12mm | 120mm | 25mm | M12 | 304 | 0.17kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
