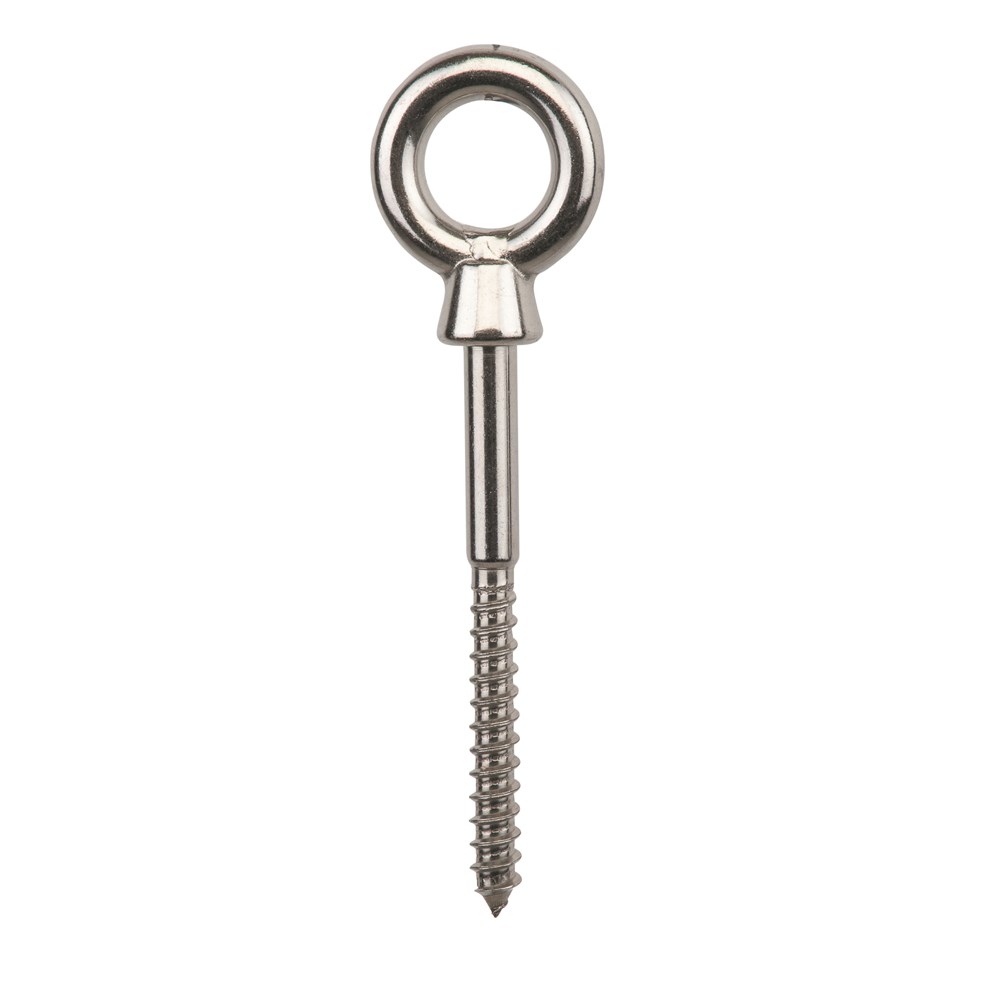

Beaver G316 Stainless Steel Eye Screw 8mm x 80mm
618080per Each
$7.25 inc GSTTrade $6.53, save $0.72Trade accounts save 10%. Apply with your ABN
| A | 81mm |
| B | 48mm |
| C | 18.4mm |
| Grade | 316 |
| Weight | 0.05kg |
| Diameter | 8mm |
| Thread Size | 8mm |
| Screw Length | 80mm |
About this product
The Beaver G316 Stainless Steel Eye Screw 8mm x 80mm gives you a fixed eye anchor point once it's driven into a post, timber or similar substrate. The 80mm screw length is the longer option in the range, so you get more thread biting into the material where a shallow fixing wouldn't hold. Thread size is 8mm, overall length measures 81mm, with a 48mm B dimension and an 18.4mm eye at C.
Made from grade 316 stainless with an electro polished finish, it stands up to salt water and other corrosive conditions, which is why it gets used around marine work and in food and pharmaceutical processing. Build is heavy duty for strength and service life. One thing to be clear on, this eye screw is not to be used for lifting applications.
Common questions
- can you use a Beaver eye screw for lifting
- No. Beaver states these eye screws are not to be used for lifting applications, they are intended as a connection or anchor point only.
- is the 8mm x 80mm eye screw ok in salt water
- Yes, it's grade 316 marine stainless with an electro polished surface finish, giving high corrosion resistance in salt water and other harsh corrosive environments.
- what's the difference between the 8mm x 80mm and the shorter size
- The 80mm screw length puts more thread into the substrate than the shorter option in the range, which suits deeper fixings into posts or thicker material.
Full specifications
| Product Code | Thread Size | Diameter | A | B | C | Grade | Weight |
|---|---|---|---|---|---|---|---|
| 618060 | 6mm | 6mm | 60mm | 36mm | 14mm | 316 | 0.027kg |
| 618080 | 8mm | 8mm | 81mm | 48mm | 18.4mm | 316 | 0.05kg |
| 618010 | 10mm | 10mm | 98mm | 60mm | 22mm | 316 | 0.12kg |
| 618012 | 12mm | 12mm | 122.5mm | 72mm | 27.3mm | 316 | 0.2kg |
