can you use a Beaver G316 eye screw for lifting?

No. Beaver states these eye screws are not to be used for lifting applications, so keep them to static connection points only.

is a 316 stainless eye screw ok for salt water?

Yes, grade 316 is marine grade and gives high corrosion resistance in salt water and other harsh corrosive environments.

what is the difference between the 60mm and the shorter eye screw?

The 60mm screw length puts more thread into the post or substrate than the shorter size in the range, both using the same 6mm thread.

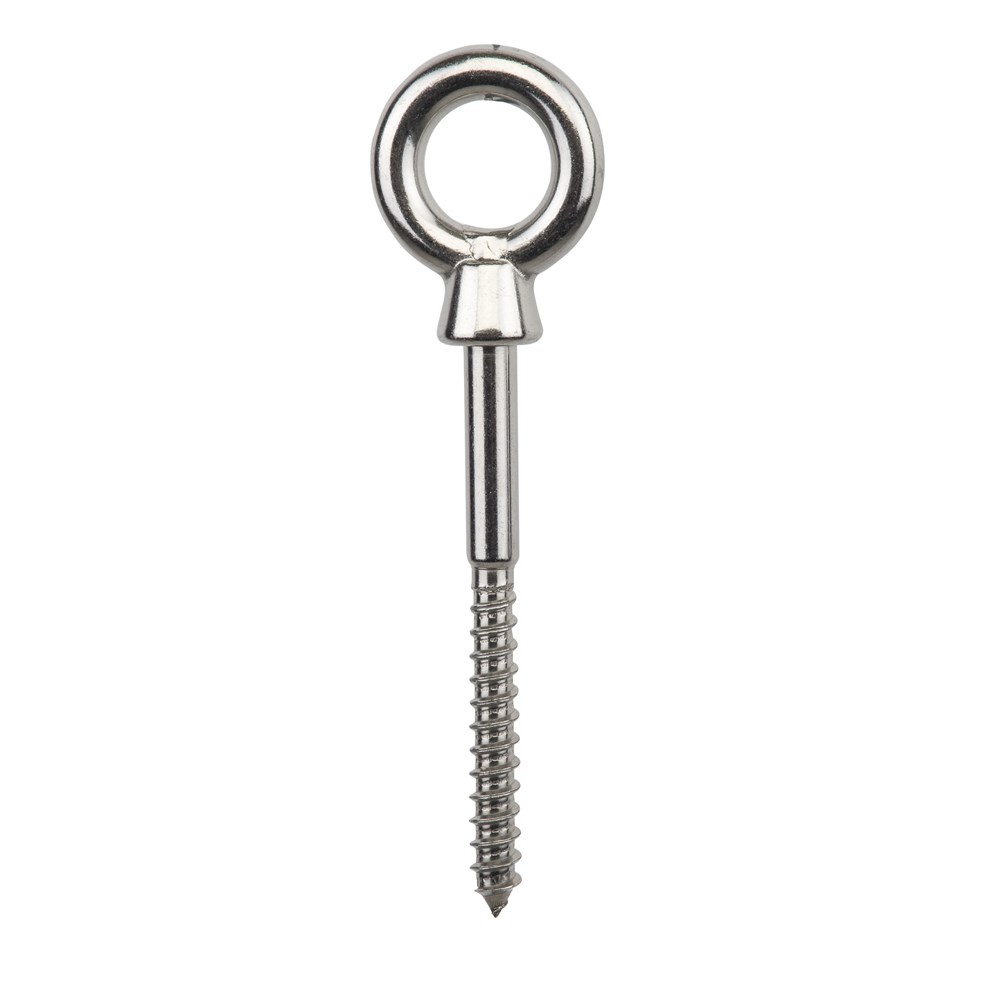

Beaver G316 Stainless Steel Eye Screw 6mm x 60mm

Name: Beaver G316 Stainless Steel Eye Screw 6mm x 60mm
Brand: Beaver
SKU: 618060
Price: 7.18 AUD
Availability: InStock

618060per Each

Thread SizeScrew Length

$7.18 inc GSTTrade $6.46, save $0.72Trade accounts save 10%. Apply with your ABN

A	60mm
B	36mm
C	14mm
Grade	316
Weight	0.027kg
Diameter	6mm
Thread Size	6mm
Screw Length	60mm

About this product

The Beaver G316 Stainless Steel Eye Screw 6mm x 60mm is a screw-in anchor point for rope, wire or light tie-offs, driven into timber posts or similar substrate. The 60mm screw length is the longer of the two sizes in the range, so you get more thread into the material for a firmer hold. The eye measures 14mm internally with a 36mm head section, and the whole thing weighs 0.027kg.

Grade 316 stainless with an electro polished finish handles salt water, washdown areas and other corrosive conditions without rusting out. That also makes it a sensible pick around food and pharmaceutical processing. Worth noting, this eye screw is not to be used for lifting applications. Use it as a fixed connection point only, and match the 6mm thread to the substrate you are screwing into.

Common questions

can you use a Beaver G316 eye screw for lifting?: No. Beaver states these eye screws are not to be used for lifting applications, so keep them to static connection points only.
is a 316 stainless eye screw ok for salt water?: Yes, grade 316 is marine grade and gives high corrosion resistance in salt water and other harsh corrosive environments.
what is the difference between the 60mm and the shorter eye screw?: The 60mm screw length puts more thread into the post or substrate than the shorter size in the range, both using the same 6mm thread.

Full specifications

Product Code	Thread Size	Diameter	A	B	C	Grade	Weight
618060	6mm	6mm	60mm	36mm	14mm	316	0.027kg
618080	8mm	8mm	81mm	48mm	18.4mm	316	0.05kg
618010	10mm	10mm	98mm	60mm	22mm	316	0.12kg
618012	12mm	12mm	122.5mm	72mm	27.3mm	316	0.2kg

Questions about this equipment? Send us a message and we’ll check it against the job.
