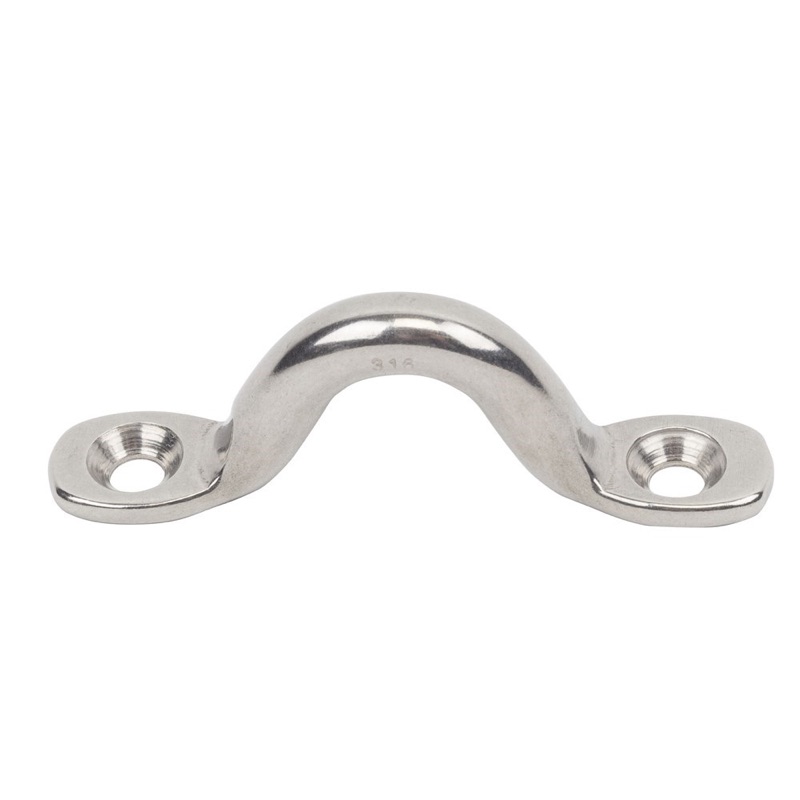

Beaver G304 Stainless Steel Wire Eye Saddle 6mm
617706per Each
$1.57 inc GSTTrade $1.41, save $0.16Trade accounts save 10%. Apply with your ABN
| A | 44mm |
| B | 22mm |
| C | 5.3mm |
| Grade | 304 |
| Weight | 0.013kg |
| Diameter | 6mm |
| Saddle Diameter | 6mm |
About this product
The Beaver G304 Stainless Steel Wire Eye Saddle 6mm forms a neat eye in 6mm wire rope for non-lifting work. It suits balustrades, fencing runs, guy wires and general fit-out jobs where you want a tidy termination that will not rust out. The saddle measures 44mm along the body and 22mm across, with a 5.3mm dimension at C, and it weighs 0.013kg.
Made from Grade 304 stainless steel, the standard grade for most jobs, it handles corrosion well in typical outdoor and coastal-adjacent conditions. In heavily corrosive environments it has its limits, so plan accordingly. Note this fitting is not to be used for lifting. If you are running heavier rope, the other size in the range steps up from this 6mm version.
Common questions
- can the Beaver G304 wire eye saddle be used for lifting
- No. This fitting is not to be used for lifting, so keep it to non-lifting applications like balustrade, fencing and general fit-out work.
- what size wire rope does the 6mm wire eye saddle take
- It is made for 6mm wire rope. The body measures 44mm by 22mm, with a 5.3mm dimension at C.
- is grade 304 stainless steel ok near the coast
- Grade 304 is the standard stainless grade with good corrosion resistance, but it has limitations in higher corrosive environments, so assess the exposure on your site.
Full specifications
| Product Code | Diameter | A | B | C | Grade | Weight |
|---|---|---|---|---|---|---|
| 617704 | 4mm | 32mm | 15.8mm | 3.2mm | 304 | 0.004kg |
| 617705 | 5mm | 40mm | 18mm | 4.3mm | 304 | 0.007kg |
| 617706 | 6mm | 44mm | 22mm | 5.3mm | 304 | 0.013kg |
| 617708 | 8mm | 51mm | 23mm | 5.2mm | 304 | 0.025kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
