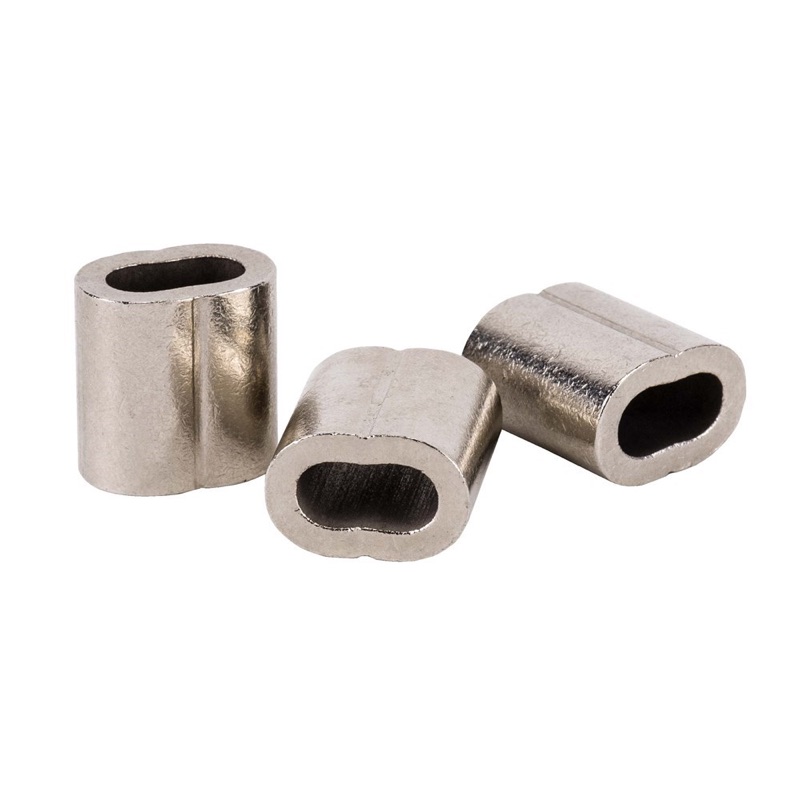

Beaver Wire Rope Copper Ferrules 21.7mm x 43.4mm x 8.4mm
617420per Each
$69.93 inc GSTTrade $62.94, save $6.99Trade accounts save 10%. Apply with your ABN
| L | 70mm |
| a | 21.7mm |
| b | 43.4mm |
| c | 8.4mm |
| Size | 20mm |
| Dimensions A x B x C | 21.7mm x 43.4mm x 8.4mm |
About this product
Beaver Wire Rope Copper Ferrules 21.7mm x 43.4mm x 8.4mm are swage sleeves for forming eyes and terminations in 20mm wire rope. This is the largest end of the common range, sized with a 21.7mm outside diameter, a 43.4mm length across the body and an 8.4mm bore, with an overall length of 70mm. Beaver manufactures them to DIN 3093.
Copper takes a press well, so the ferrule flows tight around the rope without chewing up the wires. Match the ferrule size to the rope diameter and use the correct die in your swaging press. Get that wrong and the termination will not hold. Handy for slings, guy assemblies and fixed rope ends where a hand splice is not practical.
Common questions
- what size wire rope does a 21.7mm copper ferrule fit
- This ferrule is sized for 20mm wire rope, with an 8.4mm bore dimension listed as part of the 21.7mm x 43.4mm x 8.4mm spec.
- what standard are beaver copper ferrules made to
- Beaver manufactures these copper ferrules to DIN 3093.
- why use copper ferrules instead of aluminium
- Copper presses cleanly and grips the rope firmly when swaged with the right die. The choice usually comes down to your press tooling and the rope you are terminating.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617402 | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402A | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403 | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617403A | 3.5mm | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 617404 | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617404A | 4.5mm | 4.9mm | 9.8mm | 1.9mm | 16mm |
| 617405 | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406 | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 617406A | 6.5mm | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 617407 | 7mm | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 617408 | 8mm | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 617409 | 9mm | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 617410 | 10mm | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 617411 | 11mm | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 617412 | 12mm | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 617413 | 13mm | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 617414 | 14mm | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 617416 | 16mm | 17.5mm | 35mm | 6.7mm | 56mm |
| 617418 | 18mm | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 617420 | 20mm | 21.7mm | 43.4mm | 8.4mm | 70mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
