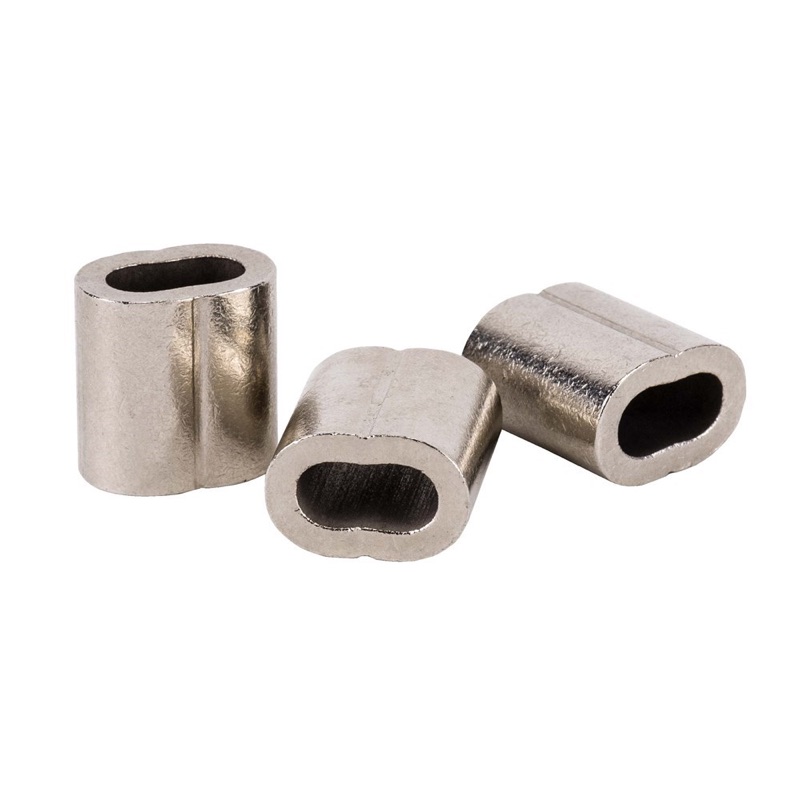

Beaver Wire Rope Copper Ferrules 19.6mm x 39.2mm x 7.6mm
617418per Each
$113.58 inc GSTTrade $102.22, save $11.36Trade accounts save 10%. Apply with your ABN
| L | 63mm |
| a | 19.6mm |
| b | 39.2mm |
| c | 7.6mm |
| Size | 18mm |
| Dimensions A x B x C | 19.6mm x 39.2mm x 7.6mm |
About this product
Beaver Wire Rope Copper Ferrules 19.6mm x 39.2mm x 7.6mm are swage fittings used to form a permanent eye or loop in wire rope. This is the size for 18mm rope, with dimensions of 19.6mm x 39.2mm x 7.6mm and an overall length of 63mm. Copper ferrules are manufactured by Beaver to DIN 3093.
Copper works because it flows under pressure, so a correctly pressed ferrule grips the rope evenly without cutting into the strands. You need the right die and a swaging press to suit, and the ferrule size has to match the rope. Step up or down a size and the termination will not hold as intended. Check the finished press for even shape and no splitting before the rope goes anywhere near a load.
Common questions
- what size wire rope do these copper ferrules suit
- This ferrule is sized for 18mm wire rope. The dimensions are 19.6mm x 39.2mm x 7.6mm with a 63mm overall length.
- what standard are beaver copper ferrules made to
- Beaver manufactures these copper ferrules to DIN 3093.
- are copper ferrules better than aluminium for wire rope
- Copper flows under swaging pressure and grips the rope evenly, which is why it is commonly chosen for pressed terminations. Either way, the ferrule has to match the rope size and be pressed with the correct die.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617402 | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402A | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403 | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617403A | 3.5mm | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 617404 | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617404A | 4.5mm | 4.9mm | 9.8mm | 1.9mm | 16mm |
| 617405 | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406 | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 617406A | 6.5mm | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 617407 | 7mm | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 617408 | 8mm | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 617409 | 9mm | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 617410 | 10mm | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 617411 | 11mm | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 617412 | 12mm | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 617413 | 13mm | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 617414 | 14mm | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 617416 | 16mm | 17.5mm | 35mm | 6.7mm | 56mm |
| 617418 | 18mm | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 617420 | 20mm | 21.7mm | 43.4mm | 8.4mm | 70mm |
