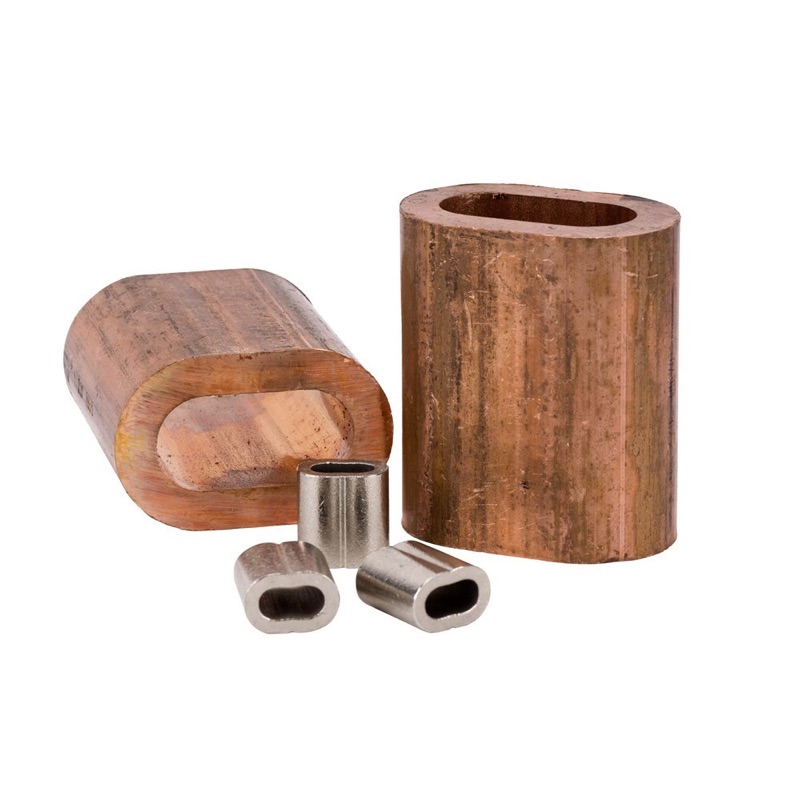

Beaver Wire Rope Copper Ferrules 13.2mm x 26.4mm x 4.9mm
617412per Each
$14.42 inc GSTTrade $12.98, save $1.44Trade accounts save 10%. Apply with your ABN
| L | 42mm |
| a | 13.2mm |
| b | 26.4mm |
| c | 4.9mm |
| Size | 12mm |
| Dimensions A x B x C | 13.2mm x 26.4mm x 4.9mm |
About this product
The Beaver Wire Rope Copper Ferrules 13.2mm x 26.4mm x 4.9mm are swage sleeves for forming eyes and terminations in 12mm wire rope. Press one on with the matching die and you get a permanent, compact termination with no knots or clamps to work loose. Copper takes the swage cleanly and grips the rope without chewing into the strands.
Dimensions run 13.2mm through the bore, 26.4mm across the outside and 4.9mm at C, with an overall length of 42mm. That sizing is specific to 12mm rope, so check your rope diameter before you press. Beaver manufactures these to DIN 3093. Suited to rigging shops, crane crews and site work where a tidy swaged eye is needed on heavier rope.
Common questions
- what size wire rope do these copper ferrules suit
- This ferrule is sized for 12mm wire rope, with a 13.2mm A dimension through the bore. Match the ferrule to the rope diameter before swaging.
- what standard are beaver copper ferrules made to
- Beaver manufactures these copper ferrules to DIN 3093.
- how long is the 13.2mm beaver copper ferrule
- Overall length is 42mm, with dimensions of 13.2mm x 26.4mm x 4.9mm across A, B and C.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617402 | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402A | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403 | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617403A | 3.5mm | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 617404 | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617404A | 4.5mm | 4.9mm | 9.8mm | 1.9mm | 16mm |
| 617405 | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406 | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 617406A | 6.5mm | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 617407 | 7mm | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 617408 | 8mm | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 617409 | 9mm | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 617410 | 10mm | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 617411 | 11mm | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 617412 | 12mm | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 617413 | 13mm | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 617414 | 14mm | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 617416 | 16mm | 17.5mm | 35mm | 6.7mm | 56mm |
| 617418 | 18mm | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 617420 | 20mm | 21.7mm | 43.4mm | 8.4mm | 70mm |
