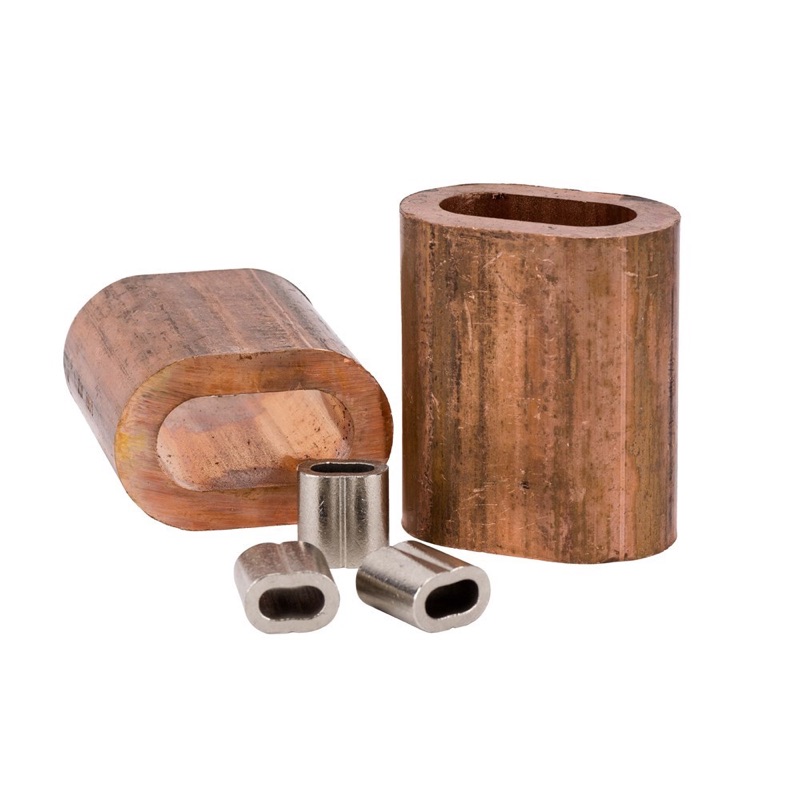

Beaver Wire Rope Copper Ferrules 9.9mm x 19.8mm x 3.7mm
617409per Each
$6.95 inc GSTTrade $6.26, save $0.69Trade accounts save 10%. Apply with your ABN
| L | 32mm |
| a | 9.9mm |
| b | 19.8mm |
| c | 3.7mm |
| Size | 9mm |
| Dimensions A x B x C | 9.9mm x 19.8mm x 3.7mm |
About this product
Beaver Wire Rope Copper Ferrules 9.9mm x 19.8mm x 3.7mm are swage sleeves for forming a permanent eye or loop in 9mm wire rope. You thread the rope through, set the tail back, then press the ferrule with a matched swaging die so the copper flows around the strands and locks the termination. Manufactured to DIN 3093.
The dimensions matter here. A bore of 9.9mm suits 9mm rope, the 19.8mm body gives the press something to bite into, and the 3.7mm dimension sets the internal step. Overall length is 32mm. Copper is soft enough to deform cleanly under pressure and holds its grip once swaged, which is why it stays the go-to for balustrade work, fencing runs and light lifting assemblies. Check your die size against the ferrule before you press.
Common questions
- what size wire rope do 9.9mm copper ferrules fit
- This ferrule is sized for 9mm wire rope, with a 9.9mm bore to allow the rope through before swaging.
- what standard are beaver copper ferrules made to
- Beaver manufactures these copper ferrules to DIN 3093.
- what are the dimensions of the 9mm beaver copper ferrule
- Dimensions are 9.9mm x 19.8mm x 3.7mm with an overall length of 32mm.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617402 | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402A | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403 | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617403A | 3.5mm | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 617404 | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617404A | 4.5mm | 4.9mm | 9.8mm | 1.9mm | 16mm |
| 617405 | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406 | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 617406A | 6.5mm | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 617407 | 7mm | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 617408 | 8mm | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 617409 | 9mm | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 617410 | 10mm | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 617411 | 11mm | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 617412 | 12mm | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 617413 | 13mm | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 617414 | 14mm | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 617416 | 16mm | 17.5mm | 35mm | 6.7mm | 56mm |
| 617418 | 18mm | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 617420 | 20mm | 21.7mm | 43.4mm | 8.4mm | 70mm |
