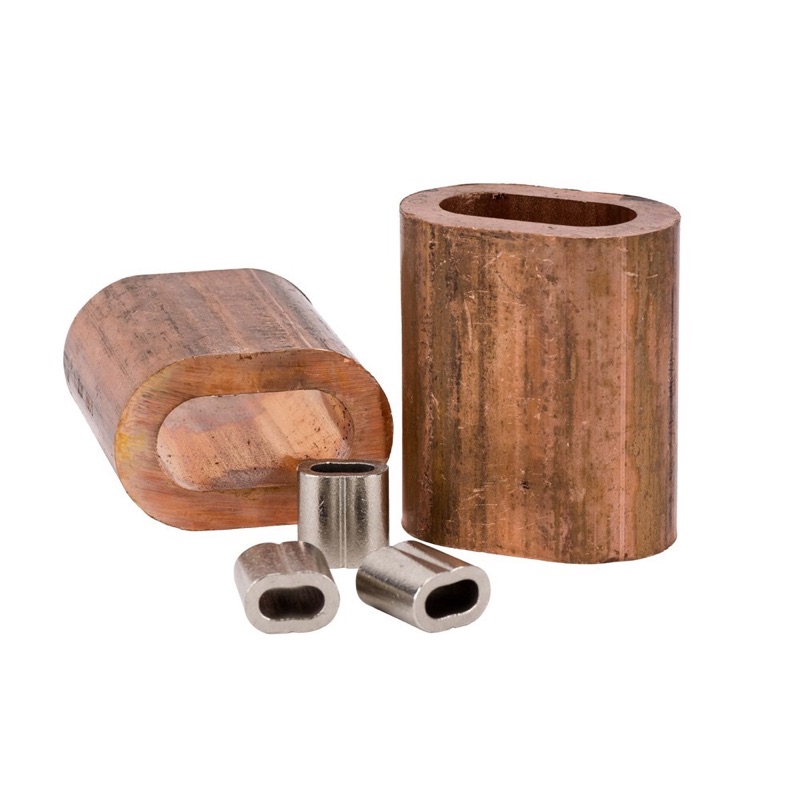

Beaver Wire Rope Copper Ferrules 8.8mm x 17.6mm x 3.3mm
617408per Each
$4.52 inc GSTTrade $4.07, save $0.45Trade accounts save 10%. Apply with your ABN
| L | 28mm |
| a | 8.8mm |
| b | 17.6mm |
| c | 3.3mm |
| Size | 8mm |
| Dimensions A x B x C | 8.8mm x 17.6mm x 3.3mm |
About this product
Beaver Wire Rope Copper Ferrules 8.8mm x 17.6mm x 3.3mm are swaged copper sleeves for forming eyes and terminations on 8mm wire rope. The 8.8mm bore takes the doubled rope, the 17.6mm body gives the press something to bite into, and the 3.3mm dimension sets the wall through the barrel. Overall length is 28mm.
Copper suits it to smaller rope work where a soft, malleable sleeve grips cleanly under the dies without cracking. These ferrules are manufactured by Beaver to DIN 3093. Match the ferrule size to the rope diameter, use the correct die for the swage, and check the finished press against your tooling specs before the assembly goes anywhere near a load.
Common questions
- what size wire rope do 8.8mm copper ferrules suit
- This ferrule is sized for 8mm wire rope, with an 8.8mm bore to take the doubled rope through the sleeve.
- what standard are Beaver copper ferrules made to
- They are manufactured by Beaver to DIN 3093.
- what are the dimensions of the 617408 ferrule
- Dimensions A x B x C are 8.8mm x 17.6mm x 3.3mm, with an overall length of 28mm.
- why use a copper ferrule instead of an aluminium one
- Copper is soft and malleable, so it presses cleanly on smaller ropes without cracking through the barrel.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617402 | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402A | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403 | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617403A | 3.5mm | 3.8mm | 7.6mm | 1.5mm | 13mm |
| 617404 | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617404A | 4.5mm | 4.9mm | 9.8mm | 1.9mm | 16mm |
| 617405 | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406 | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
| 617406A | 6.5mm | 7.2mm | 14.4mm | 2.7mm | 23mm |
| 617407 | 7mm | 7.8mm | 15.6mm | 2.9mm | 25mm |
| 617408 | 8mm | 8.8mm | 17.6mm | 3.3mm | 28mm |
| 617409 | 9mm | 9.9mm | 19.8mm | 3.7mm | 32mm |
| 617410 | 10mm | 10.9mm | 21.8mm | 4.1mm | 35mm |
| 617411 | 11mm | 12.1mm | 24.2mm | 4.5mm | 39mm |
| 617412 | 12mm | 13.2mm | 26.4mm | 4.9mm | 42mm |
| 617413 | 13mm | 14.2mm | 28.4mm | 5.4mm | 46mm |
| 617414 | 14mm | 15.3mm | 30.6mm | 5.8mm | 49mm |
| 617416 | 16mm | 17.5mm | 35mm | 6.7mm | 56mm |
| 617418 | 18mm | 19.6mm | 39.2mm | 7.6mm | 63mm |
| 617420 | 20mm | 21.7mm | 43.4mm | 8.4mm | 70mm |
