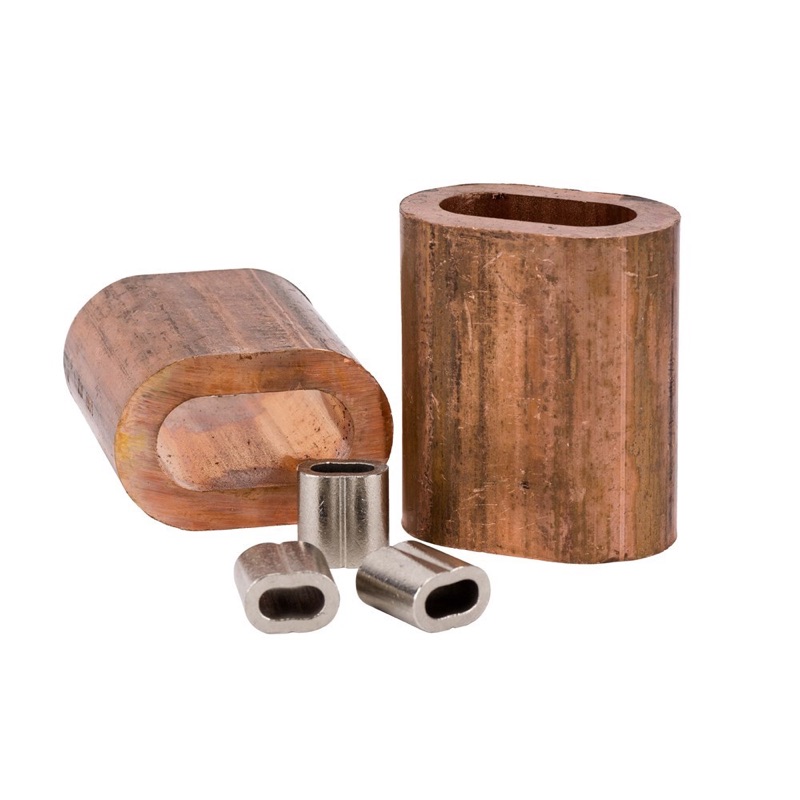

Beaver Wire Rope Nickle Plated Copper Ferrules 6.6mm x 13.2mm x 2.5mm
617406NPper Each
$5.13 inc GSTTrade $4.62, save $0.51Trade accounts save 10%. Apply with your ABN
| L | 21mm |
| a | 6.6mm |
| b | 13.2mm |
| c | 2.5mm |
| Size | 6mm |
| Dimensions A x B x C | 6.6mm x 13.2mm x 2.5mm |
About this product
The Beaver Wire Rope Nickle Plated Copper Ferrules 6.6mm x 13.2mm x 2.5mm are swage fittings used to form a permanent eye or loop in 6mm wire rope. Press one on with the matching die and you get a clean, compact termination with no loose tails to snag. This is the 6mm size in the range, measuring 6.6mm through the bore, 13.2mm across the body and 2.5mm at the C dimension, with an overall length of 21mm.
Copper does the work here because it deforms evenly around the rope under pressure, and the nickel plating gives the outside a harder, brighter finish. Beaver manufactures these to DIN 3093. Handy for balustrade wire, fencing, light lifeline work and any job where a neat swaged eye beats a bulky clamp. Check the ferrule matches your rope diameter before pressing, and always use the correct die.
Common questions
- what size wire rope do 6.6mm x 13.2mm x 2.5mm ferrules suit
- This ferrule is the 6mm size in the Beaver range, with a 6.6mm bore to suit 6mm wire rope.
- what standard are beaver copper ferrules made to
- Beaver manufactures these nickel plated copper ferrules to DIN 3093.
- why nickel plated copper instead of plain aluminium ferrules
- Copper presses evenly around the rope for a firm, compact termination, and the nickel plating gives the outer surface a harder, brighter finish.
Full specifications
| Product Code | Size | a | b | c | L |
|---|---|---|---|---|---|
| 617416NP | 1.6mm | 1.8mm | 3.6mm | 1.05mm | 6mm |
| 617402NP | 2mm | 2.2mm | 4.4mm | 0.9mm | 7mm |
| 617402ANP | 2.5mm | 2.7mm | 5.4mm | 1.05mm | 9mm |
| 617403NP | 3mm | 3.3mm | 6.6mm | 1.25mm | 11mm |
| 617404NP | 4mm | 4.4mm | 8.8mm | 1.7mm | 14mm |
| 617405NP | 5mm | 5.5mm | 11mm | 2.1mm | 18mm |
| 617406NP | 6mm | 6.6mm | 13.2mm | 2.5mm | 21mm |
